NSN 5307-01-050-2307 16S6107, 16S610-7, 01-050-2307
Product Details | SHOULDERED STUD
5307-01-050-2307 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 16S6107, 16S610-7, 5307-01-050-2307, 01-050-2307, 5307010502307, 010502307
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 NOV 1977 | 01-050-2307 | 15946 ( STUD, SHOULDERED ) |

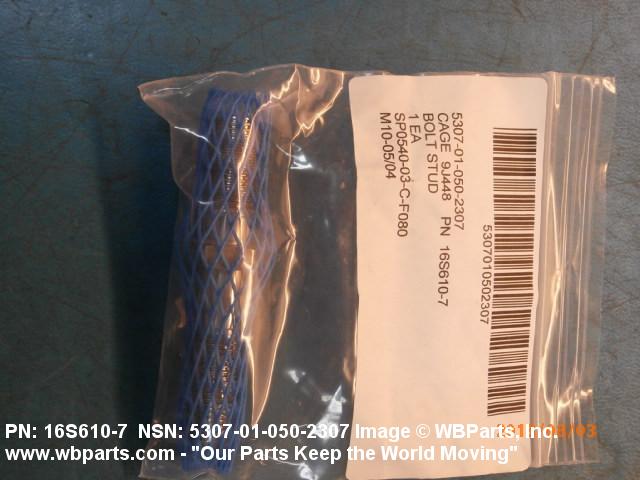

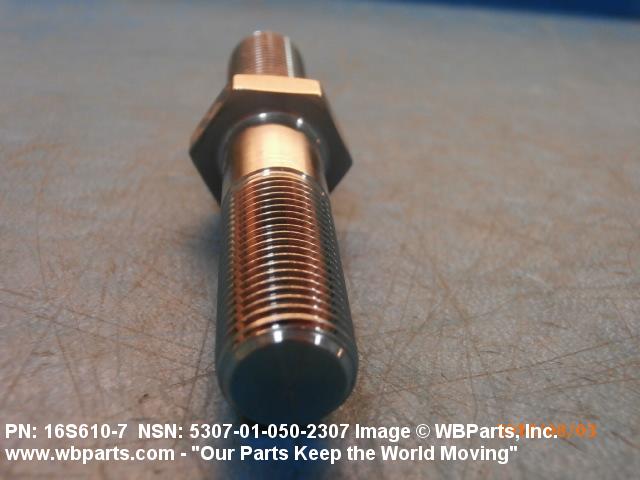

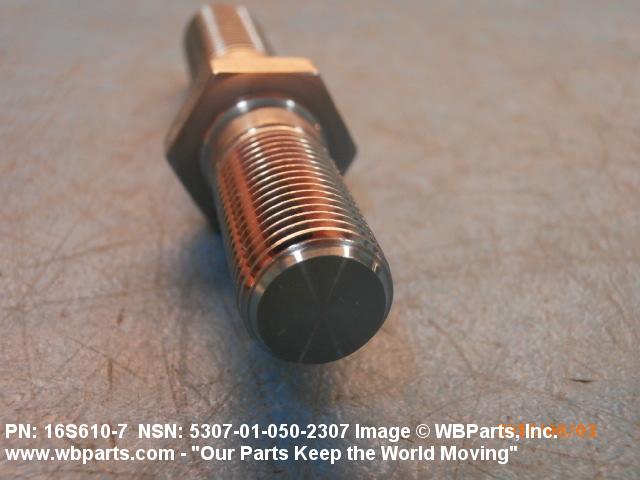

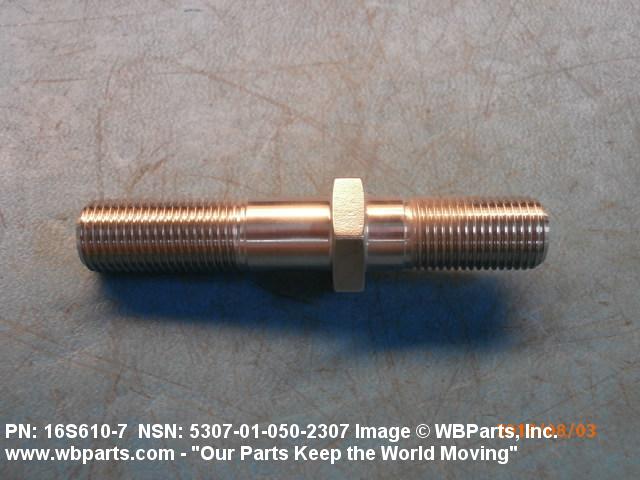

Drawings & Photos | NSN 5307-01-050-2307
Demand History | NSN 5307-01-050-2307
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-050-2307 | 2021-03-68 | 311 | DIBBS |
| 5307-01-050-2307 | 2020-09-257 | 47 | DIBBS |
| 5307-01-050-2307 | 2020-04-112 | 482 | DIBBS |
| 5307-01-050-2307 | 2020-02-57 | 184 | DIBBS |
| 5307-01-050-2307 | 2020-01-07 | 184 | DIBBS |
| 5307-01-050-2307 | 2019-10-279 | 181 | DIBBS |
| 5307-01-050-2307 | 2019-01-30 | 237 | DIBBS |
| 5307-01-050-2307 | 2018-07-207 | 50 | Thailand |
| 5307-01-050-2307 | 2018-07-206 | 361 | DIBBS |
| 5307-01-050-2307 | 2018-06-157 | 50 | Thailand |
| 5307-01-050-2307 | 2018-03-63 | 322 | DIBBS |
| 5307-01-050-2307 | 2017-05-150 | 50 | Thailand |
| 5307-01-050-2307 | 2017-04-100 | 221 | DIBBS |
| 5307-01-050-2307 | 2017-03-83 | 50 | Thailand |
| 5307-01-050-2307 | 2015-04-104 | 29 | DIBBS |
| 5307-01-050-2307 | 2014-09-273 | 221 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-050-2307
Related Products | NSN 5307-01-050-2307
Technical Data | NSN 5307-01-050-2307
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 95 SHOULDERED |

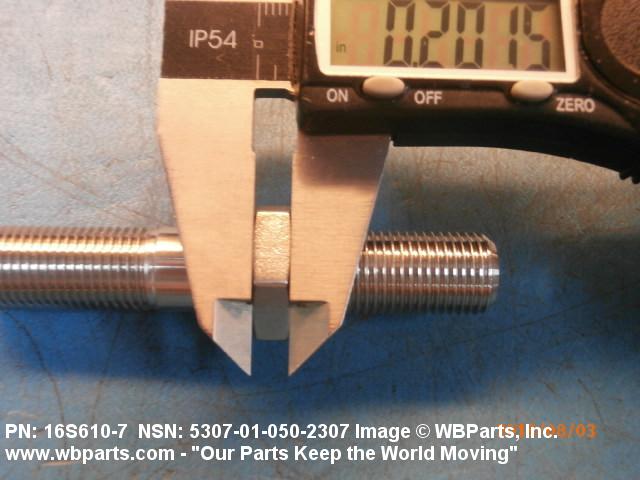

| SHOULDER LENGTH | 0.200 INCHES NOMINAL |

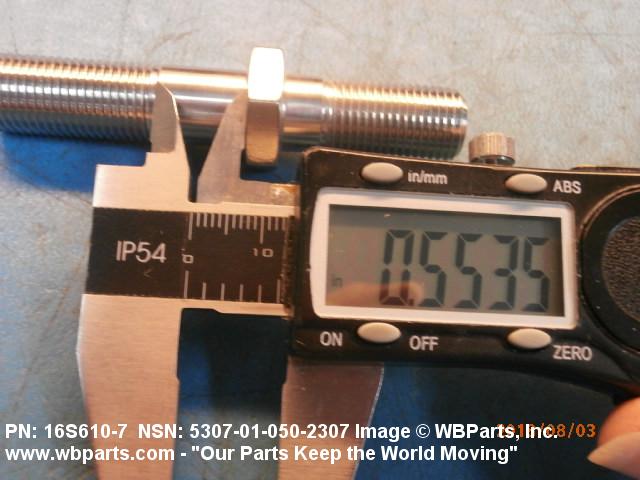

| NUT END SHANK LENGTH | 0.550 INCHES NOMINAL |

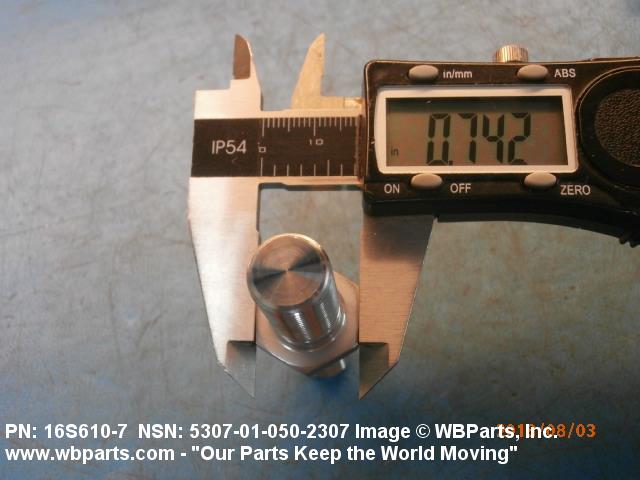

| DISTANCE ACROSS FLATS | 0.750 INCHES NOMINAL |

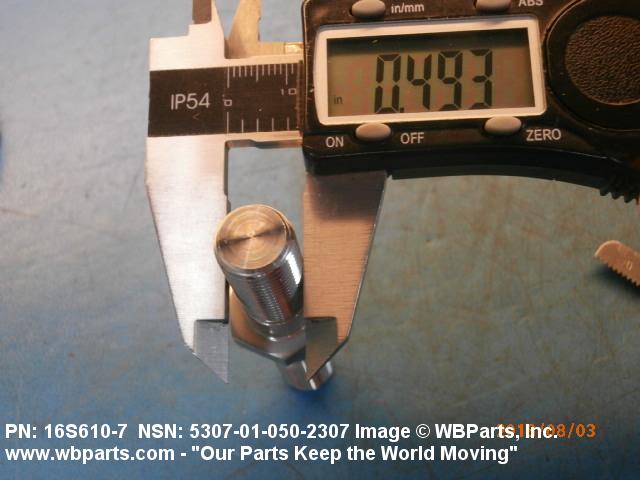

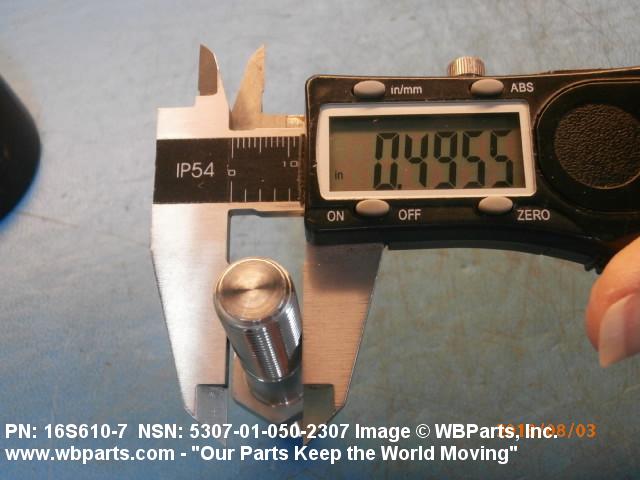

| NUT END SHANK DIAMETER | 0.499 INCHES NOMINAL |

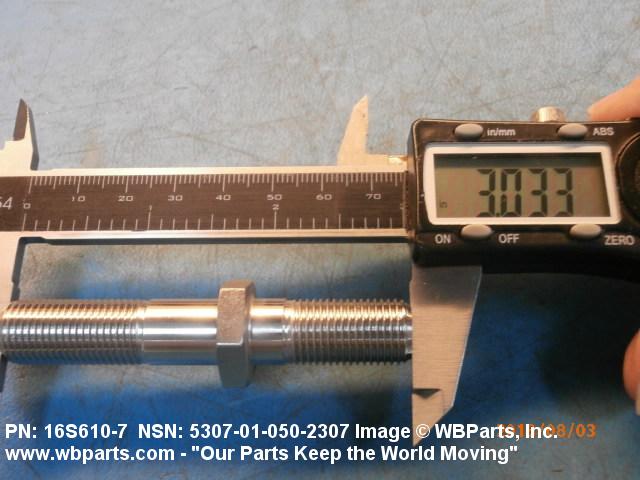

| OVERALL LENGTH | 3.030 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF NUT THREAD UNJF STUD THREAD |
| NOMINAL THREAD SIZE | 0.500 INCHES NUT THREAD 0.500 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |

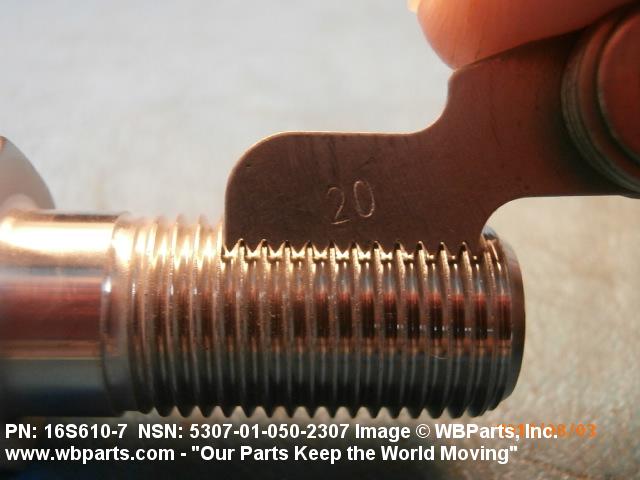

| THREAD QUANTITY PER INCH | 20 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |

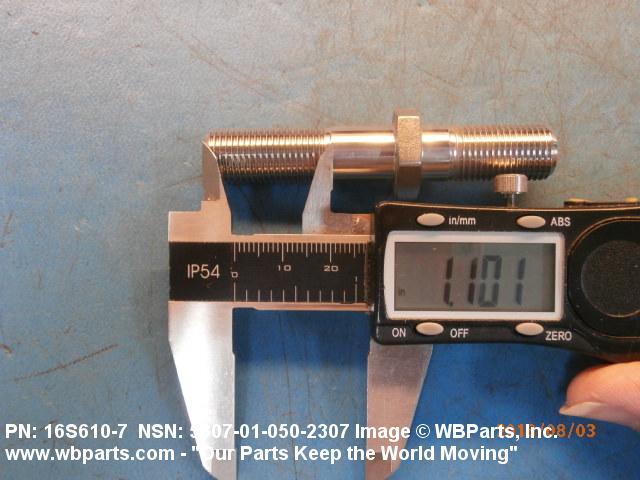

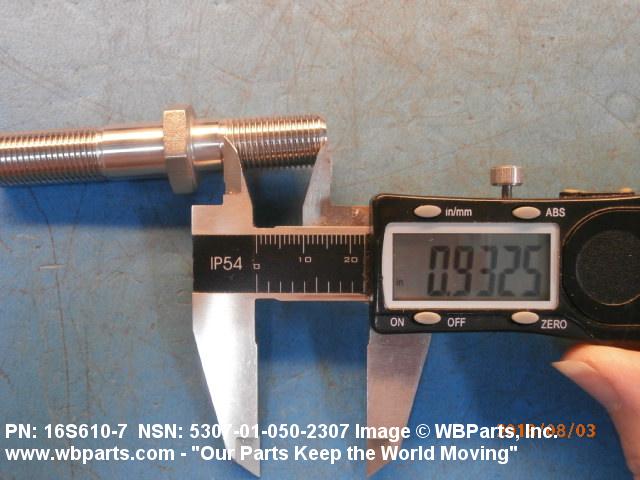

| THREAD LENGTH | 1.100 INCHES NOMINAL NUT THREAD 0.980 INCHES NOMINAL STUD THREAD |
| III SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16S610-7 |
Restrictions/Controls & Freight Information | NSN 5307-01-050-2307
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-050-2307
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
