NSN 5307-01-050-6310 P07517, P075-17, 12E647867
Product Details | BONDED STUD
5307-01-050-6310 A headed fastener, externally threaded. The head is intended to be fastened by an adhesive. The head may also be fastened with rivets. The head is not designed to be turned with a wrench or inserted driver.
Part Alternates: P07517, P075-17, 12E647867, 12E647-867, 3120394010, 312-0394-010, 5307-01-050-6310, 01-050-6310, 5307010506310, 010506310
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 NOV 1977 | 01-050-6310 | 37234 ( STUD, BONDED ) |

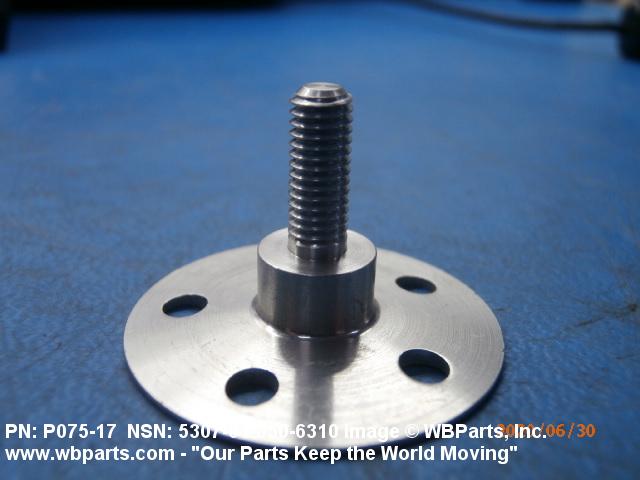

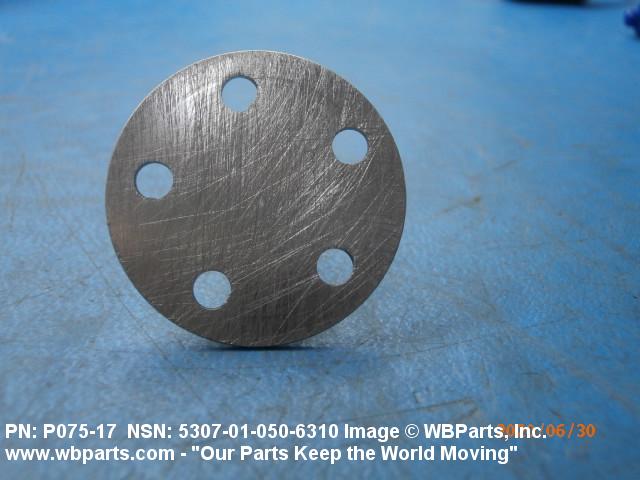

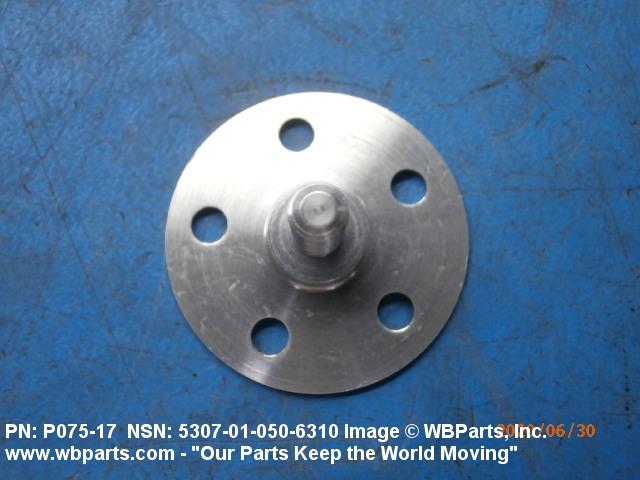

Drawings & Photos | NSN 5307-01-050-6310
Demand History | NSN 5307-01-050-6310
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P07517 | 2023-12-354 | 1 | United States |
| 5307-01-050-6310 | 2020-06-177 | 4 | United States |
| P07517 | 2020-05-150 | 900 | US |
| 5307-01-050-6310 | 2020-02-48 | 5468 | DIBBS |
| 5307-01-050-6310 | 2020-02-45 | 150 | TR |
| 5307-01-050-6310 | 2020-02-43 | 150 | US |
| 5307-01-050-6310 | 2020-02-42 | 150 | TR |
| 5307-01-050-6310 | 2019-10-283 | 27 | US |
| P07517 | 2019-05-136 | 3 | US |
| 5307-01-050-6310 | 2019-05-126 | 8500 | DIBBS |
| 5307-01-050-6310 | 2019-04-101 | 5309 | DIBBS |
| 5307-01-050-6310 | 2019-01-07 | 3170 | DIBBS |
| 5307-01-050-6310 | 2018-09-249 | 1162 | DIBBS |
| P07517 | 2018-05-129 | 50 | United States |
| 5307-01-050-6310 | 2017-11-317 | 2133 | DIBBS |
| 5307-01-050-6310 | 2017-03-88 | 2133 | DIBBS |
| 5307-01-050-6310 | 2017-02-53 | 11 | MANUAL |
| 5307-01-050-6310 | 2017-01-23 | 1143 | DIBBS |
| 5307-01-050-6310 | 2016-03-82 | 1280 | DIBBS |
| 5307-01-050-6310 | 2015-07-210 | 1280 | DIBBS |
| 5307-01-050-6310 | 2014-09-273 | 1062 | DIBBS |
| P07517 | 2013-12-354 | 172 | US |
| P07517 | 2012-08-220 | 13500 | US |
Cross Reference | NSN 5307-01-050-6310
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-050-6310
Related Products | NSN 5307-01-050-6310
Technical Data | NSN 5307-01-050-6310
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 T851 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 1 OR TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

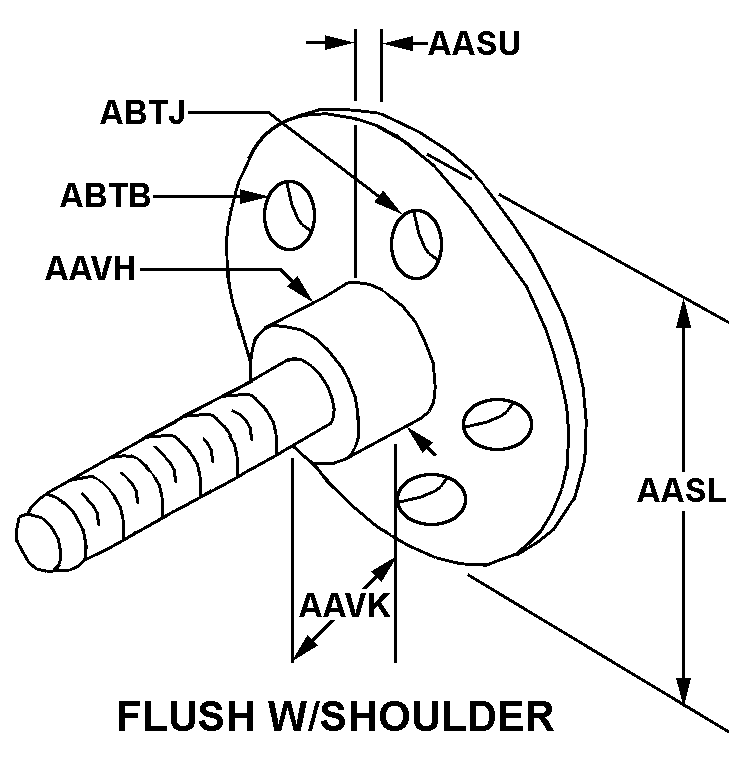

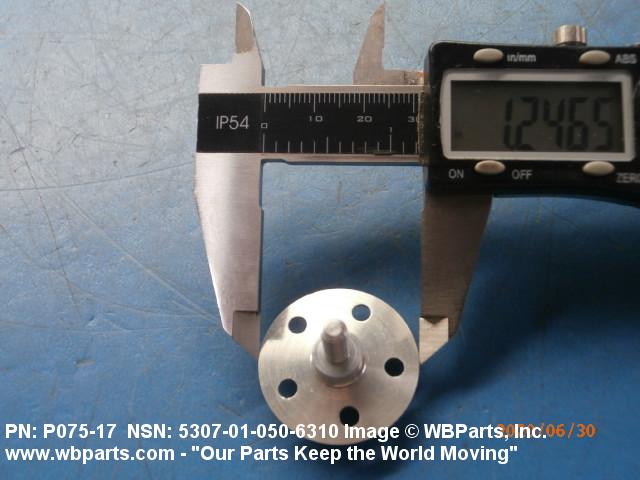

| STYLE DESIGNATOR | 152 FLUSH WITH SHOULDER |
| HEAD DIAMETER | 1.220 INCHES MINIMUM AND 1.280 INCHES MAXIMUM |

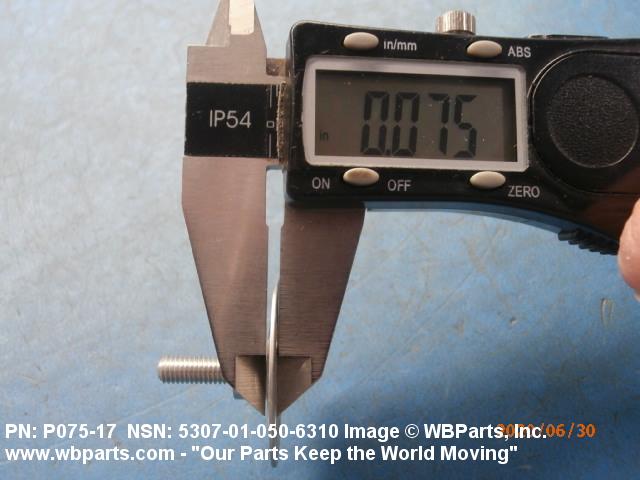

| HEAD HEIGHT | 0.070 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |

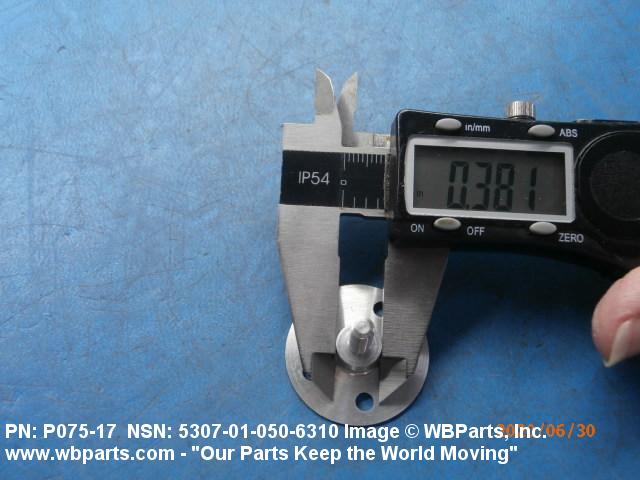

| SHOULDER DIAMETER | 0.350 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |

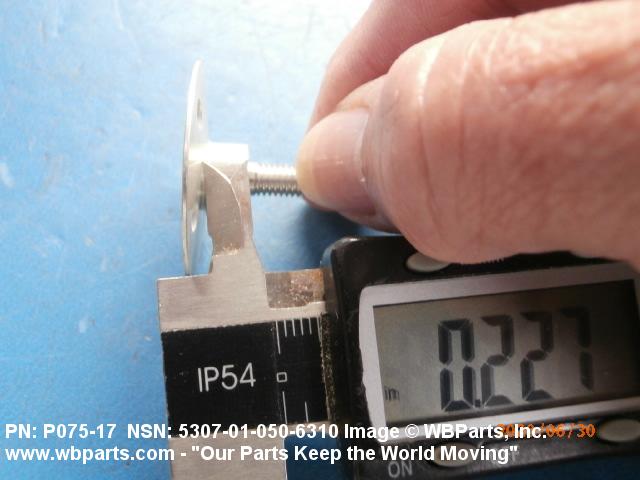

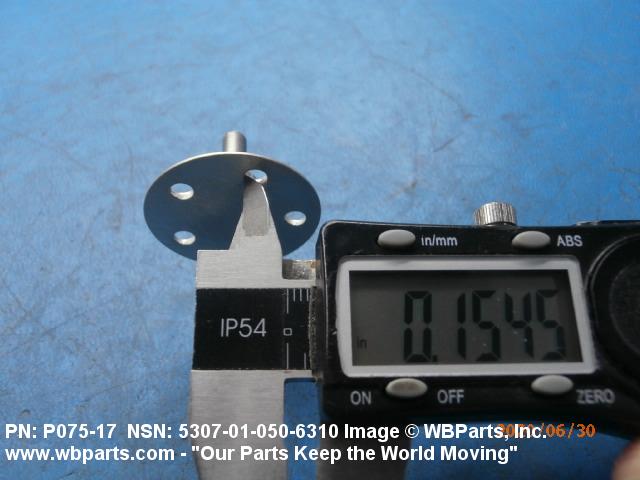

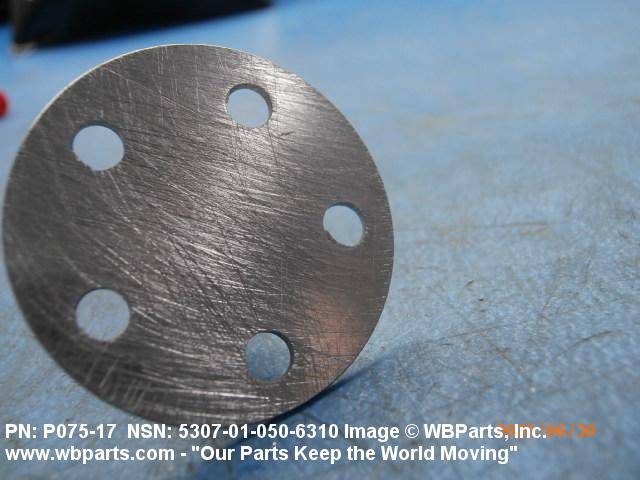

| SHOULDER LENGTH | 0.220 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 5 |

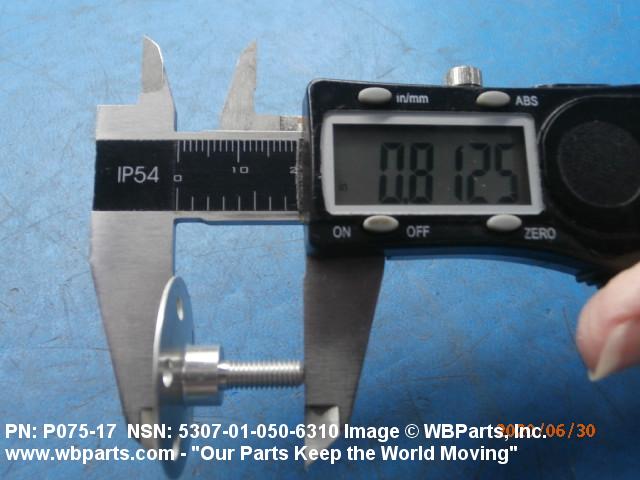

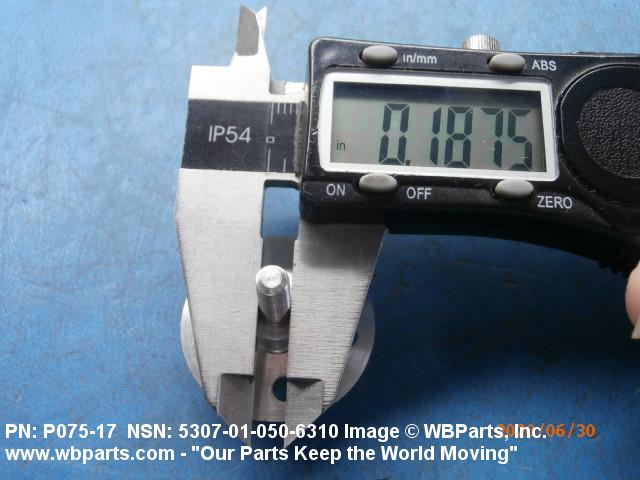

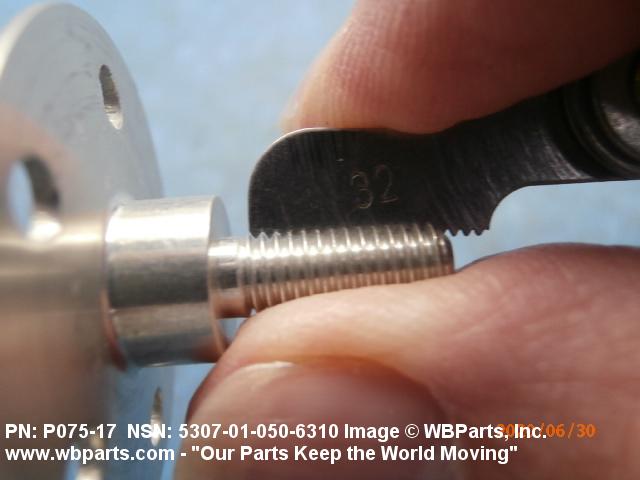

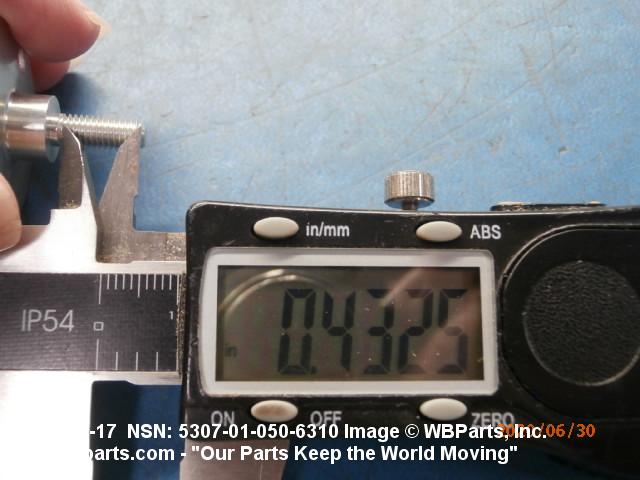

| OVERALL LENGTH | 0.780 INCHES MINIMUM AND 0.840 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.350 INCHES NOMINAL |
