Product Details | BONDED STUD

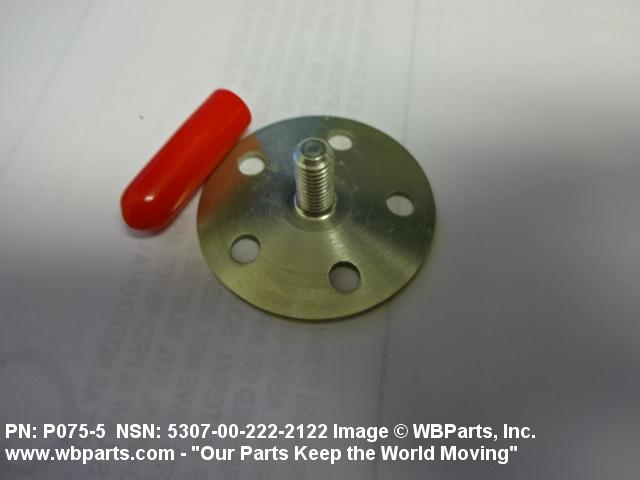

5307-00-222-2122 A headed fastener, externally threaded. The head is intended to be fastened by an adhesive. The head may also be fastened with rivets. The head is not designed to be turned with a wrench or inserted driver.

Part Alternates: P0755, P075-5, 5307-00-222-2122, 00-222-2122, 5307002222122, 002222122

Hardware and Abrasives | Studs

Supply Group (FSG) NSN Assign. NIIN
53 18 JUN 1969 00-222-2122

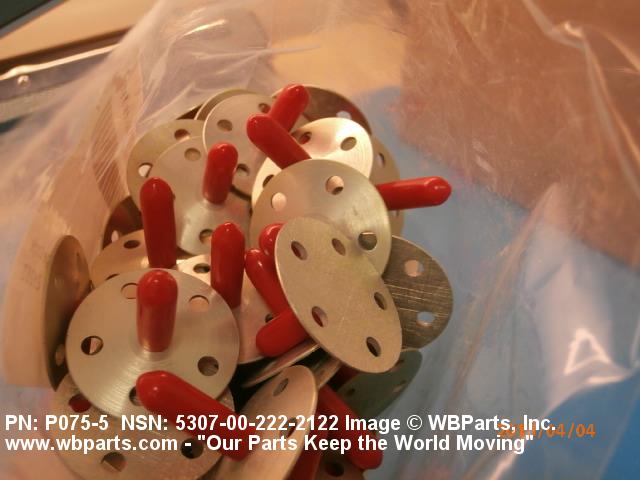

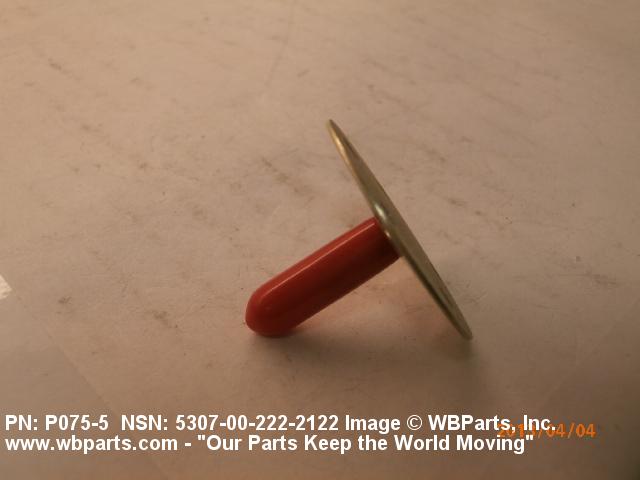

Drawings & Photos | NSN 5307-00-222-2122


Demand History | NSN 5307-00-222-2122

Part Number Request Date QTY Origin
P0755 2023-12-354 1 United States
5307-00-222-2122 2021-10-287 50 US
P0755 2021-09-272 100 us
5307-00-222-2122 2021-01-20 30 US
P0755 2020-12-338 100 Thailand
5307-00-222-2122 2020-05-138 100 Thailand
5307-00-222-2122 2020-05-138 100 Thailand
5307-00-222-2122 2020-02-34 1 us
5307-00-222-2122 2020-02-33 100 TH
5307-00-222-2122 2019-01-15 32 NO
5307-00-222-2122 2018-09-250 9 United States
5307-00-222-2122 2018-06-163 10 US
P0755 2018-05-130 280 United States
5307-00-222-2122 2017-08-242 1 DIBBS-RFPs
5307-00-222-2122 2017-04-114 1584 DIBBS
5307-00-222-2122 2017-02-53 15 MANUAL
5307-00-222-2122 2017-02-40 1584 DIBBS
5307-00-222-2122 2016-11-335 1584 DIBBS
5307-00-222-2122 2015-04-99 1526 DIBBS
5307-00-222-2122 2013-03-84 100 United States
5307-00-222-2122 2012-08-237 50 United States
5307-00-222-2122 2012-08-237 140 United States
5307-00-222-2122 2011-03-74 10 us
5307-00-222-2122 2008-06-182 100 us

Cross Reference | NSN 5307-00-222-2122

Part Number Cage Code Manufacturer
P075-5 81755 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5307-00-222-2122

Technical Data | NSN 5307-00-222-2122

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 2024
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625 TYPE 1 OR TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR 151 FLUSH

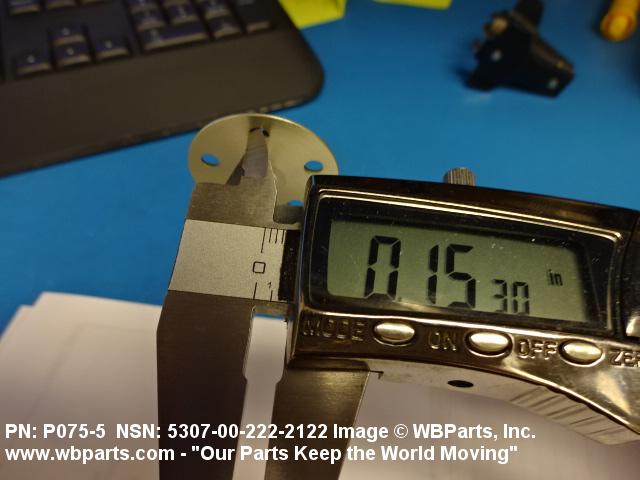

HEAD DIAMETER 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM

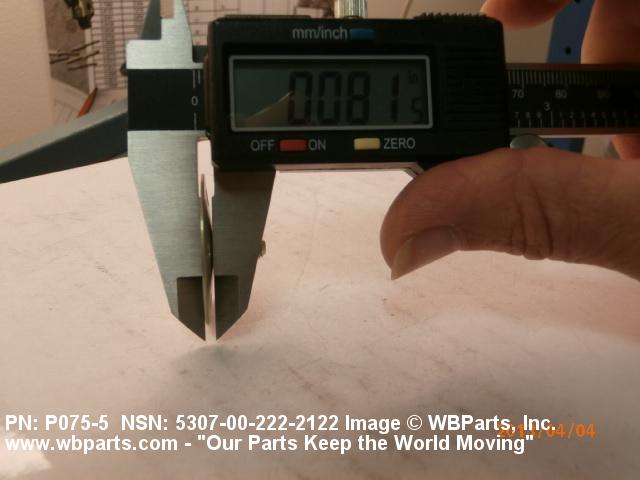

HEAD HEIGHT 0.070 INCHES MINIMUM AND 0.090 INCHES MAXIMUM
MOUNTING HOLE DIAMETER 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM

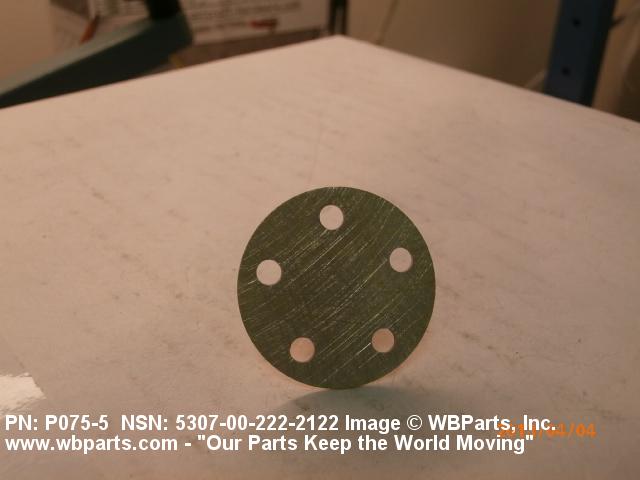

MOUNTING HOLE QUANTITY 5
OVERALL LENGTH 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD CLASS 2A
THREAD QUANTITY PER INCH 32
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.370 INCHES MINIMUM AND 0.390 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5307-00-222-2122

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 846 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
