NSN 5307-00-223-3309 002233309
Product Details | SPACING THREADED STANDOFF
5307-00-223-3309 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 002233309
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-223-3309 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5307-00-223-3309
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-223-3309
Technical Data | NSN 5307-00-223-3309
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL STANDOFF |
| SURFACE TREATMENT | CADMIUM STANDOFF |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 1 FED SPEC SINGLE TREATMENT RESPONSE STANDOFF |

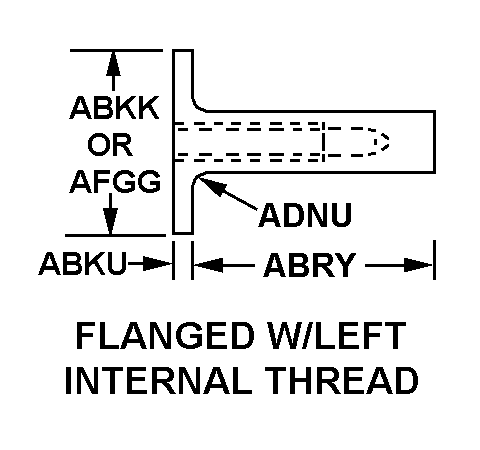

| STYLE DESIGNATOR | 7 FLANGED WITH LEFT INTERNAL THREAD |
| FLANGE THICKNESS | 0.750 INCHES NOMINAL |
| LENGTH | 1.250 INCHES NOMINAL |
| FLANGE WIDTH ACROSS FLATS | 0.312 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC LEFT INTERNAL UNC RIGHT EXTERNAL |
| NOMINAL THREAD SIZE | 0.164 INCHES LEFT INTERNAL 0.164 INCHES RIGHT EXTERNAL |
| THREAD QUANTITY PER INCH | 32 LEFT INTERNAL 32 RIGHT EXTERNAL |
| THREAD CLASS | 2B LEFT INTERNAL 2A RIGHT EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND LEFT INTERNAL RIGHT-HAND RIGHT EXTERNAL |
| THREAD LENGTH | 0.380 INCHES NOMINAL LEFT INTERNAL 0.438 INCHES NOMINAL RIGHT EXTERNAL |
| SPECIAL FEATURES | COUNTERBORED 0.191 IN. DIA BY 0.094 IN. DEPTH |
| MANUFACTURERS CODE | 05869 |
| DESIGN CONTROL REFERENCE | 721617-265 |
