NSN 5307-00-224-0968 P0759, P075-9, 00-224-0968
Product Details | BONDED STUD

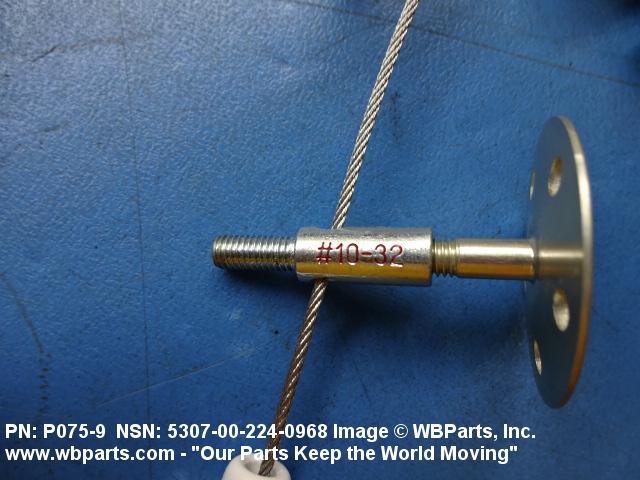

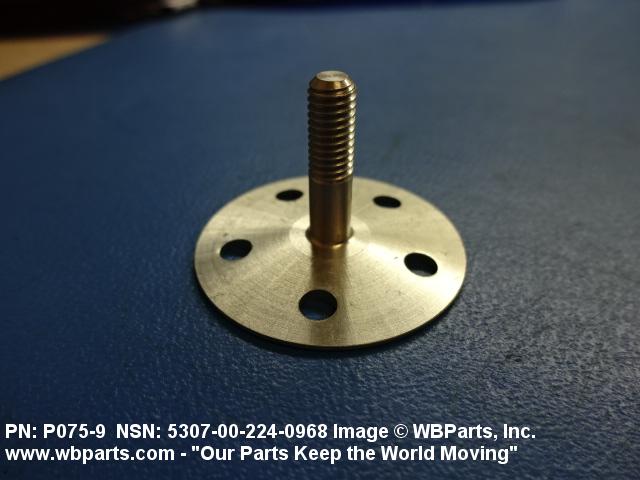

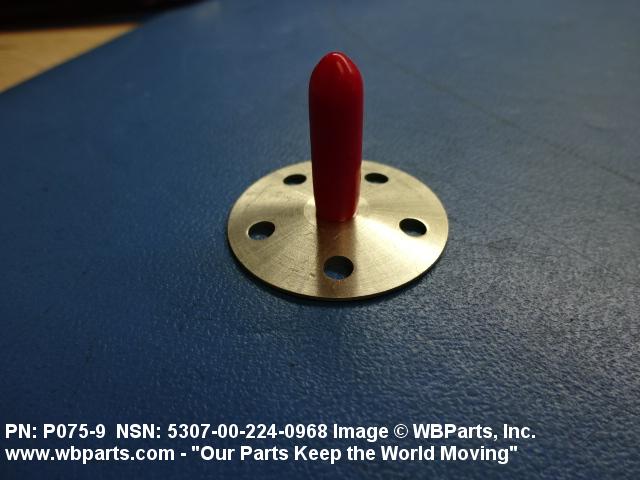

5307-00-224-0968 A headed fastener, externally threaded. The head is intended to be fastened by an adhesive. The head may also be fastened with rivets. The head is not designed to be turned with a wrench or inserted driver.
Part Alternates: P0759, P075-9, 5307-00-224-0968, 00-224-0968, 5307002240968, 002240968
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1970 | 00-224-0968 | 37234 ( STUD, BONDED ) |

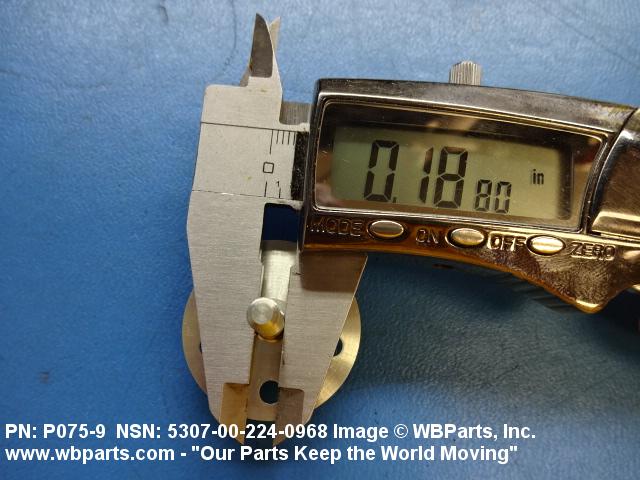

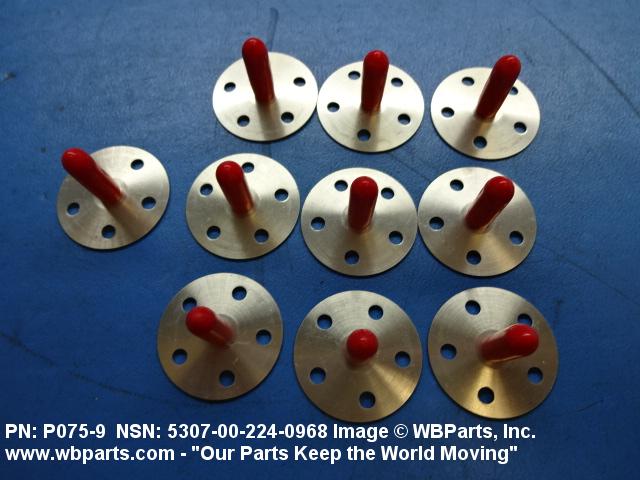

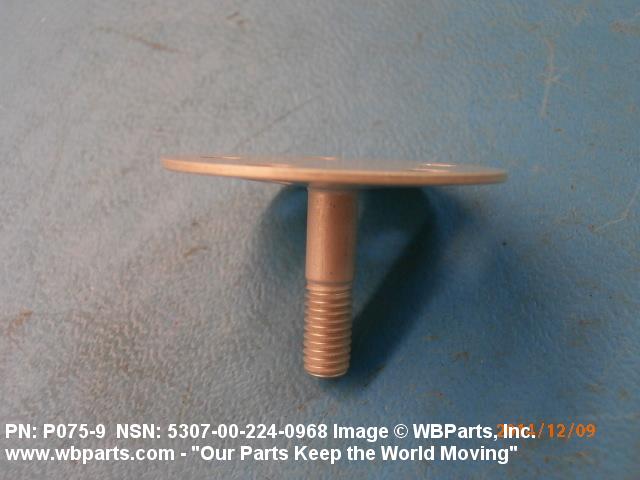

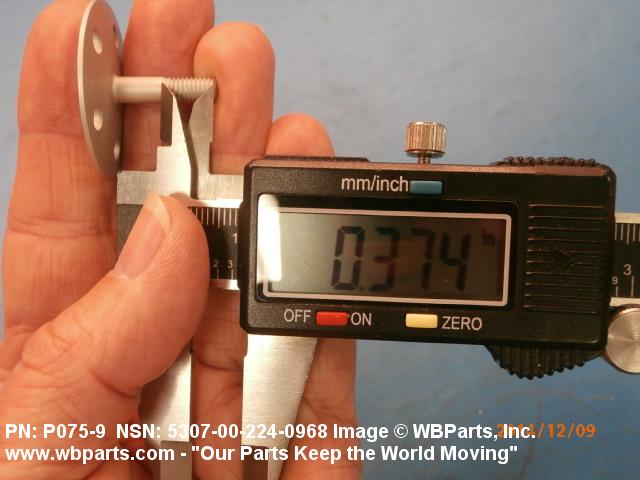

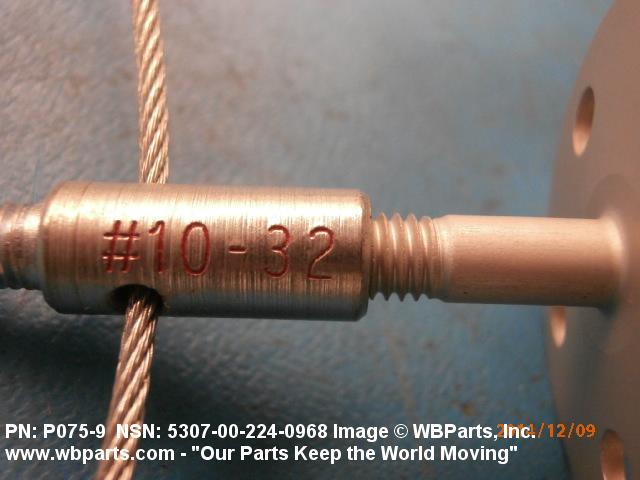

Drawings & Photos | NSN 5307-00-224-0968
Demand History | NSN 5307-00-224-0968
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-224-0968 | 2024-08-229 | 85 | United States |
| 5307-00-224-0968 | 2024-08-226 | 85 | United States |
| 5307-00-224-0968 | 2024-04-92 | 80 | United States |
| P0759 | 2021-09-272 | 100 | us |
| P0759 | 2020-01-30 | 100 | TH |
| 5307-00-224-0968 | 2019-09-273 | 15 | United States |
| 5307-00-224-0968 | 2017-10-302 | 571 | DIBBS |
| 5307-00-224-0968 | 2017-08-242 | 1 | DIBBS-RFPs |
| 5307-00-224-0968 | 2017-02-53 | 18 | MANUAL |
| 5307-00-224-0968 | 2015-10-282 | 685 | DIBBS |
| 5307-00-224-0968 | 2014-12-337 | 50 | United States |
| 5307-00-224-0968 | 2014-09-246 | 787 | DIBBS |
Cross Reference | NSN 5307-00-224-0968
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P075-9 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-224-0968
Related Products | NSN 5307-00-224-0968
Technical Data | NSN 5307-00-224-0968
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TYPE 1 OR TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 151 FLUSH |

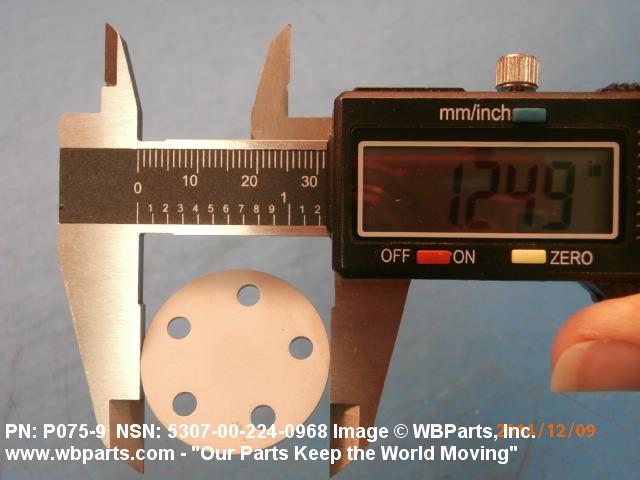

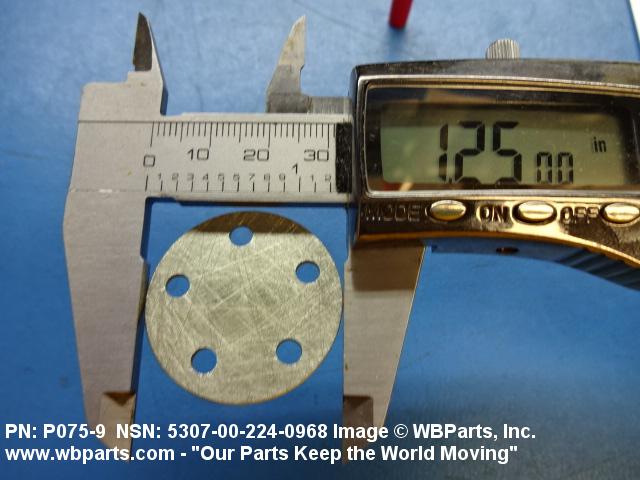

| HEAD DIAMETER | 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM |

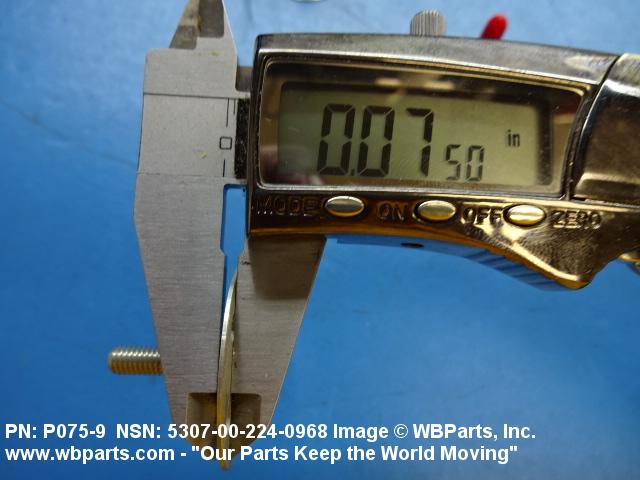

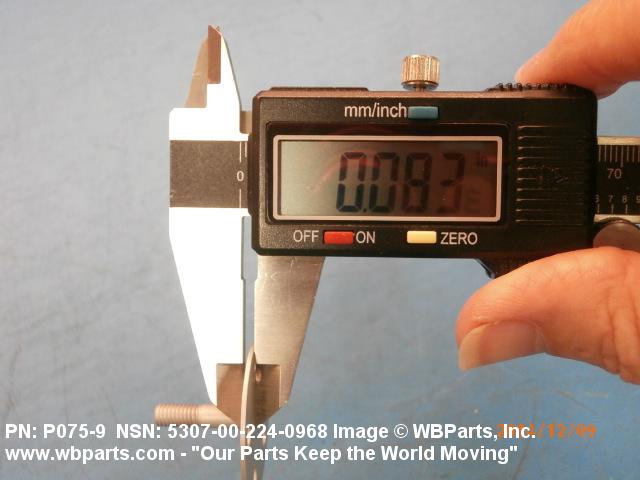

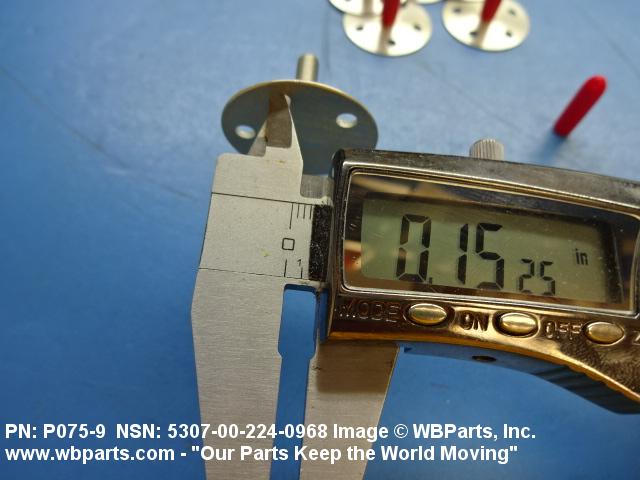

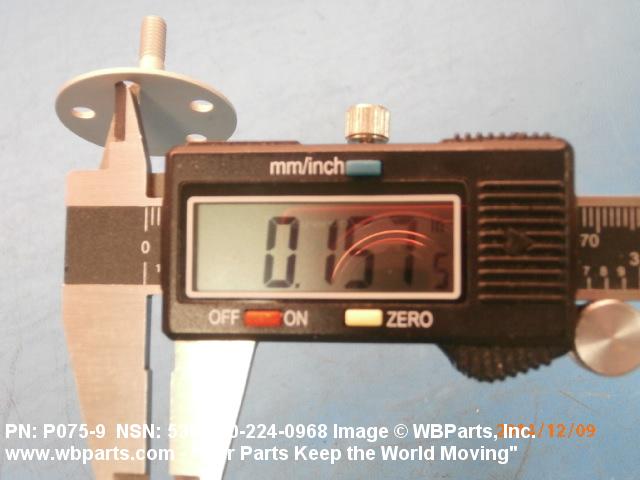

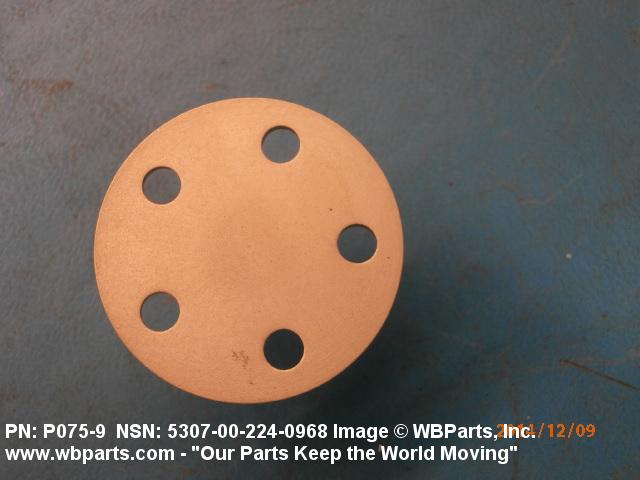

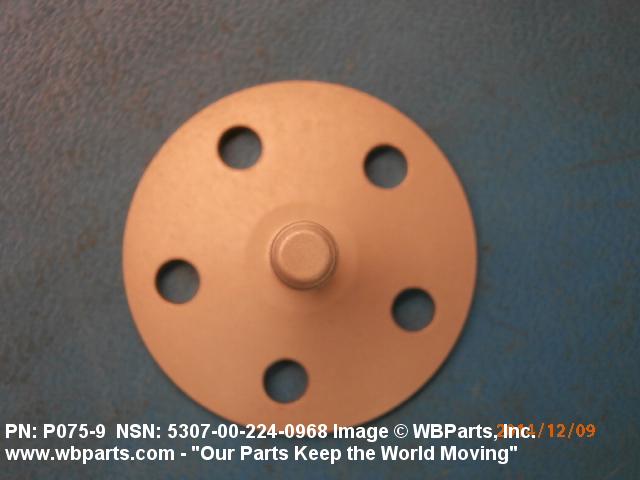

| HEAD HEIGHT | 0.070 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.146 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 5 |

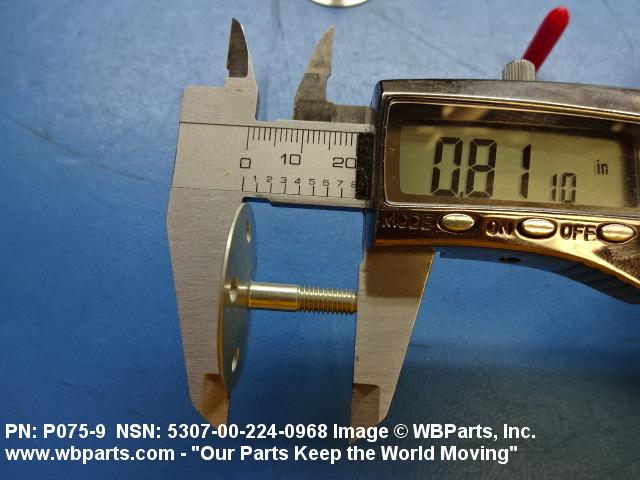

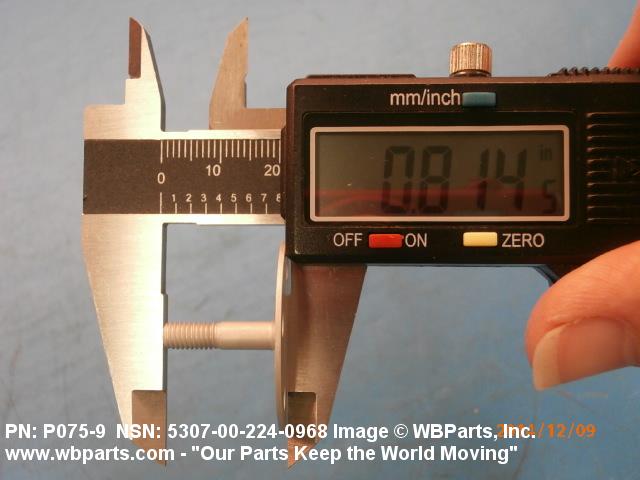

| OVERALL LENGTH | 0.800 INCHES MINIMUM AND 0.820 INCHES MAXIMUM |
