NSN 5340-01-307-9735 013079735
Product Details | SPACING THREADED STANDOFF
5340-01-307-9735 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 013079735
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-307-9735 | 40280 ( STANDOFF, THREADED, SPACING ) |

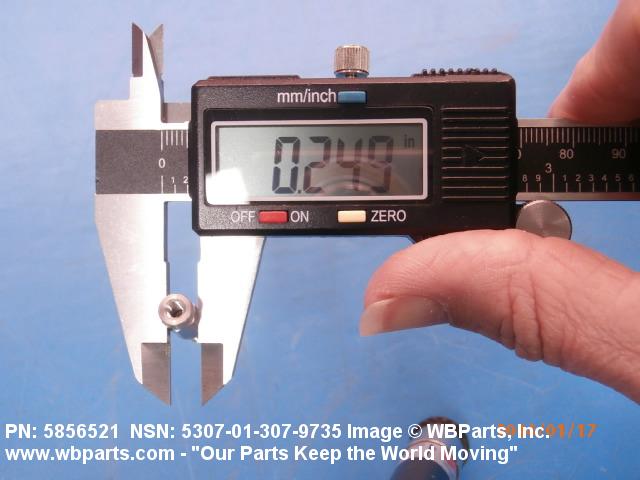

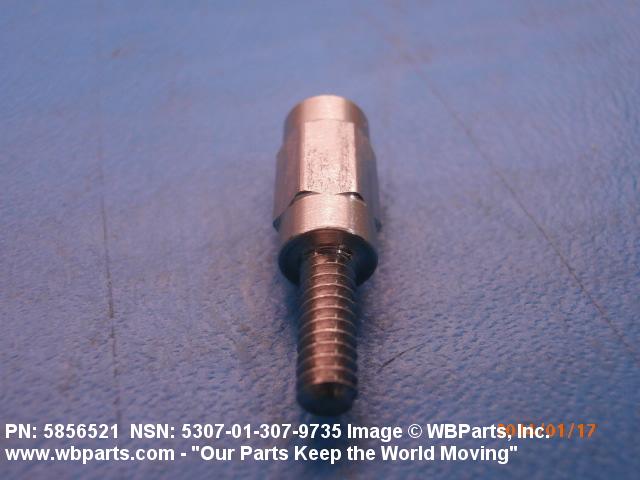

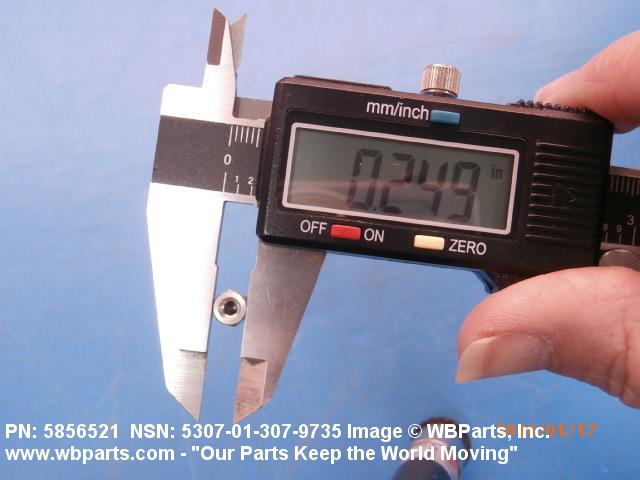

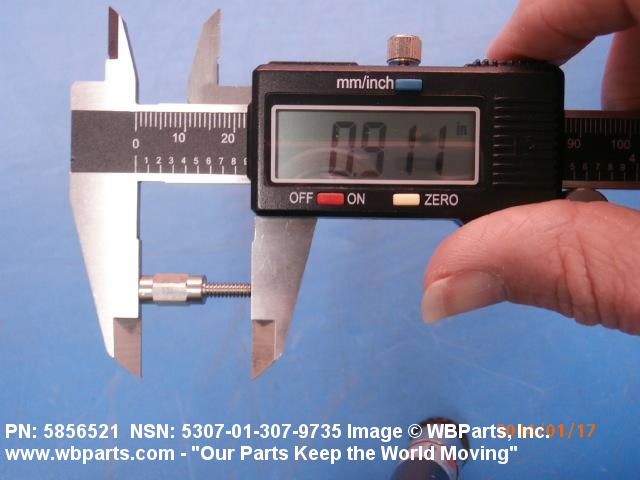

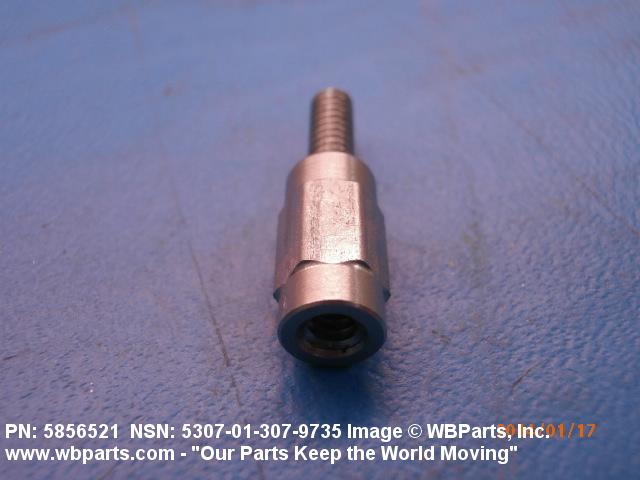

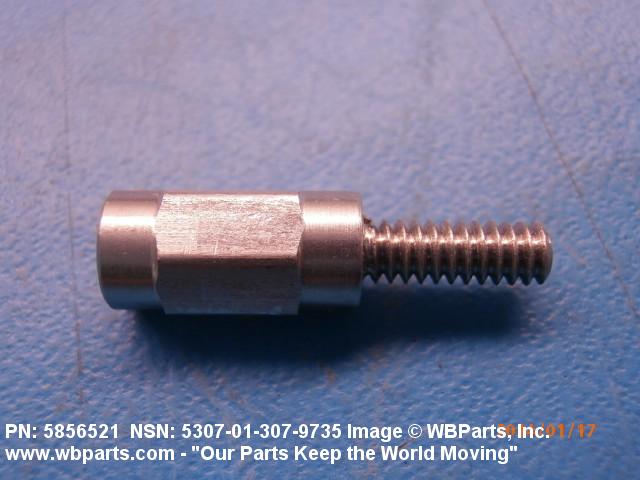

Drawings & Photos | NSN 5307-01-307-9735
Demand History | NSN 5340-01-307-9735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5856521 | 2013-12-350 | 7 | United States |
| 5307-01-307-9735 | 2013-11-323 | 7 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-307-9735
Technical Data | NSN 5340-01-307-9735
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 STANDOFF |
| STYLE DESIGNATOR | 7 FLANGED WITH LEFT INTERNAL THREAD |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| LENGTH | 1.006 INCHES NOMINAL |
| FLANGE WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC LEFT INTERNAL UNC RIGHT EXTERNAL |
| NOMINAL THREAD SIZE | 0.138 INCHES LEFT INTERNAL 0.138 INCHES RIGHT EXTERNAL |
| THREAD QUANTITY PER INCH | 32 LEFT INTERNAL 32 RIGHT EXTERNAL |
| THREAD CLASS | 2A LEFT INTERNAL 2B RIGHT EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND LEFT INTERNAL RIGHT-HAND RIGHT EXTERNAL |
| THREAD LENGTH | 0.344 INCHES NOMINAL LEFT INTERNAL 0.280 INCHES NOMINAL RIGHT EXTERNAL |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 5856521 |
Restrictions/Controls & Freight Information | NSN 5340-01-307-9735
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
