Product Details | SHOULDERED STUD
5307-00-670-7623 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 204001347001, 204-001-347-001, 2040013471, 204-001-347-1, 20400134714821, 204-001-347-14821, 5307-00-670-7623, 00-670-7623, 5307006707623, 006707623
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-670-7623 | 15946 ( STUD, SHOULDERED ) |
Drawings & Photos | NSN 5307-00-670-7623
Demand History | NSN 5307-00-670-7623
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-670-7623 | 2016-01-06 | 143 | DIBBS |
| 204001347001 | 2008-11-316 | 2 | Argentina |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-670-7623
Related Products | NSN 5307-00-670-7623
Technical Data | NSN 5307-00-670-7623
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758,COND C4 MIL SPEC SINGLE MATERIAL RESPONSE |

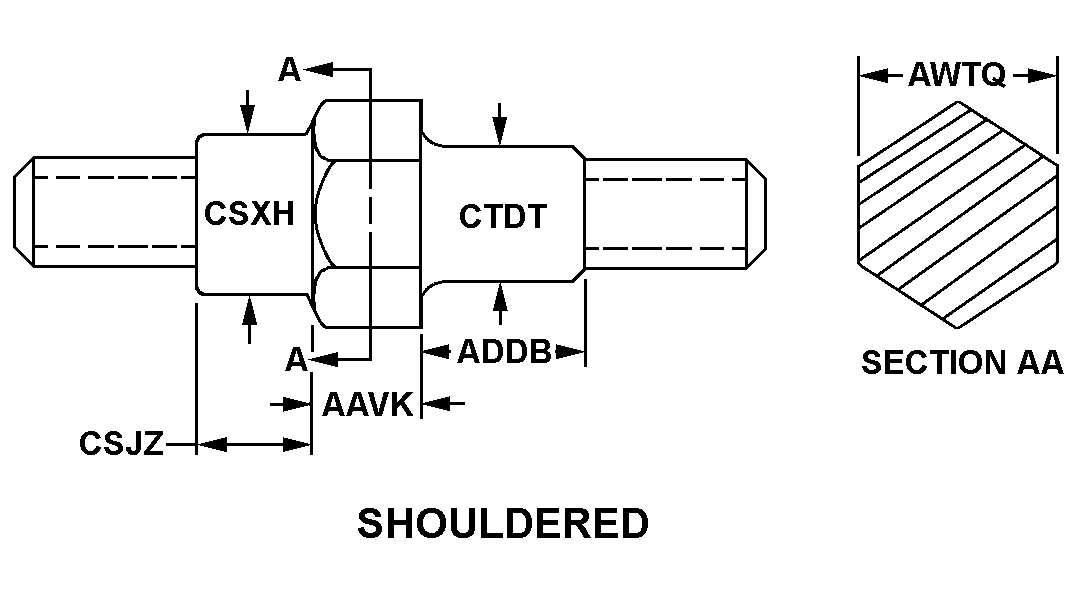

| STYLE DESIGNATOR | 95A SHOULDERED |
| SHOULDER LENGTH | 0.156 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| NUT END SHANK LENGTH | 1.420 INCHES MINIMUM AND 1.450 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.500 INCHES NOMINAL |
| STUD END SHANK LENGTH | 0.200 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| STUD END SHANK DIAMETER | 0.246 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| NUT END SHANK DIAMETER | 0.248 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| OVERALL LENGTH | 2.880 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 28 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.530 INCHES MINIMUM AND 0.560 INCHES MAXIMUM NUT THREAD 0.444 INCHES MINIMUM AND 0.510 INCHES MAXIMUM STUD THREAD |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 204-001-347-1 |
