NSN 5307-00-514-6834 B5332, B5332X, BB16040

Product Details | SHOULDERED STUD

5307-00-514-6834 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.

Part Alternates: B5332, B5332X, BB16040, BB6025, SFP156, XD148, 532063, 534781, 537858, 952496, 06937AB, 10013, 11A8298, 12676, 13097, 13097E, 1701351, 18A13097, 18AX338, 1B6161, 2055, 20X27, 20X55, 22423V, 234133, 237D6, 25261, 26C15, 293151, 36969R, 418J , 4A20X55, 4FKW0491, 4SD0491A, 4SD3491A, 5223825, 5307-00-514-6834, 00-514-6834, 5307005146834, 005146834

Hardware and Abrasives | Studs

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-514-6834	15946 ( STUD, SHOULDERED )

Drawings & Photos | NSN 5307-00-514-6834

Part Number	Request Date	QTY	Origin
25261	2024-12-345	80	US
2055	2024-10-291	3	US
10013	2022-04-108	20	United States
25261	2020-04-104	3	BA
10013	2019-10-284	2	Brazil
10013	2015-03-76	5	TH
2055	2011-03-69	5

Cross Reference | NSN 5307-00-514-6834

Part Number	Cage Code	Manufacturer
06937AB	10988	CNH INDUSTRIAL AMERICA LLC
10013	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
11A8298	09386	ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
11A8298	95201	NAPCO INTERNATIONAL LLC
12676	09386	ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
12676	13696	TRICO INDUSTRIES INC COLUMBIAN DIV
12676	71282	BUDD CO THE
13097	09386	ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
13097	65282	WHITE MOTOR CORP
13097	71282	BUDD CO THE
13097E	09386	ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
13097E	09605	BOMAG USA SUB OF UNITED DOMINION INDUSTRIES
13097E	71282	BUDD CO THE
1701351	27996	HEIL ENVIRONMENTAL INDUSTRIES
18A13097	23382	FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
18A13097	65358	TRACKMOBILE INC.
18A13097	80751	U S INDUSTRIES INC
18AX338	76040	MACK TRUCKS INC PARTS OPN
1B6161	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
1B6161	65282	WHITE MOTOR CORP
2055	1DF03	ABM EQUIPMENT & SUPPLY, LLC DBA HIGHWAY MANUFACTURING
20X27	3D6E9	AXLETECH INTERNATIONAL, LLC
20X27	78500	MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS,
20X55	02413	KERSEY / AMERICAN LAFRANCE A DIV OF FIGGIE INTERNATIONAL INC
20X55	19107	DART TRUCK CO
20X55	28294	HERMAN BODY CO THE
20X55	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
20X55	65282	WHITE MOTOR CORP
22423V	31007	NAVISTAR INTL CORP
22423V	89346	NAVISTAR INTL CORP TRUCK BR
234133	24617	GENERAL MOTORS CORP
234133	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
237D6	56442	DIAMOND REO TRUCK CO
25261	33116	KELSEY-HAYES CO WHEEL DRUM AND BRAKE DIV
26C15	05643	BARBER-GREENE CO
26C15	0MKW7	MINNPAR, LLC DBA MINNPAR
26C15	61790	ASTEC INDUSTRIES, INC. DIV ASTEC IND.
293151	08683	BROCKWAY MOTOR TRUCKS DIV OF MACK TRUCKS INC
36969R	56442	DIAMOND REO TRUCK CO
418J	45152	OSHKOSH CORPORATION
418J	75Q65	OSHKOSH DEFENSE, LLC
4A20X55	23382	FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
4FKW0491	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
4SD0491A	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
4SD3491A	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
5223825	19204	ARMY UNITED STATES DEPARTMENT OF THE
532063	12204	DAIMLER CHRYSLER
534781	23705	FRUEHAUF CORP
537858	09386	ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
952496	56721	PREMIER CENTRAL TRUCK BODY
B5332	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
B5332X	65282	WHITE MOTOR CORP
BB16040	56442	DIAMOND REO TRUCK CO
BB6025	56442	DIAMOND REO TRUCK CO
SFP156	33705	KINGHAM TRAILER CO
XD148	53762	SEAGRAVE CORP THE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5307-00-514-6834

Compare

Related Products | NSN 5307-00-514-6834

5307-00-514-6835, 5307-00-514-7143, 5307-00-514-7670, 5307-00-514-8090, 5307-00-514-8101

Technical Data | NSN 5307-00-514-6834

Characteristic	Specifications
MATERIAL	STEEL

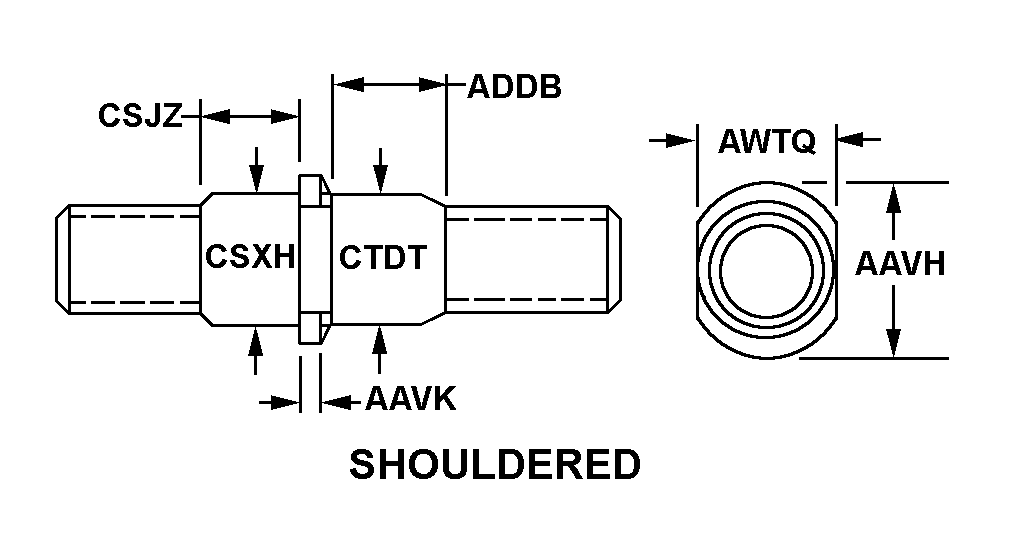

STYLE DESIGNATOR	96 SHOULDERED
SHOULDER DIAMETER	1.125 INCHES NOMINAL
SHOULDER LENGTH	0.188 INCHES NOMINAL
NUT END SHANK LENGTH	0.875 INCHES NOMINAL
DISTANCE ACROSS FLATS	0.938 INCHES NOMINAL
STUD END SHANK LENGTH	0.115 INCHES NOMINAL
STUD END SHANK DIAMETER	0.785 INCHES NOMINAL
NUT END SHANK DIAMETER	0.785 INCHES NOMINAL
OVERALL LENGTH	3.469 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNS NUT THREAD UNS STUD THREAD
NOMINAL THREAD SIZE	0.750 INCHES NUT THREAD 0.750 INCHES STUD THREAD
THREAD QUANTITY PER INCH	16 NUT THREAD 16 STUD THREAD
THREAD PITCH DIAMETERS	0.7044 TO 0.7084 INCHES NUT THREAD 0.7044 TO 0.7084 INCHES STUD THREAD
THREAD DIRECTION	RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD
THREAD LENGTH	1.219 INCHES NOMINAL NUT THREAD 1.062 INCHES NOMINAL STUD THREAD
III HARDNESS RATING	18.0 ROCKWELL C MINIMUM AND 28.0 ROCKWELL C MAXIMUM
III END ITEM IDENTIFICATION	SHIPBOARD MATERIAL HANDLING
MANUFACTURERS CODE	19204
DESIGN CONTROL REFERENCE	5223825

Restrictions/Controls & Freight Information | NSN 5307-00-514-6834

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5307-00-514-6834

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
