NSN 5307-01-365-0586 021360-450, 365872, 01-365-0586
Product Details | SHOULDERED STUD

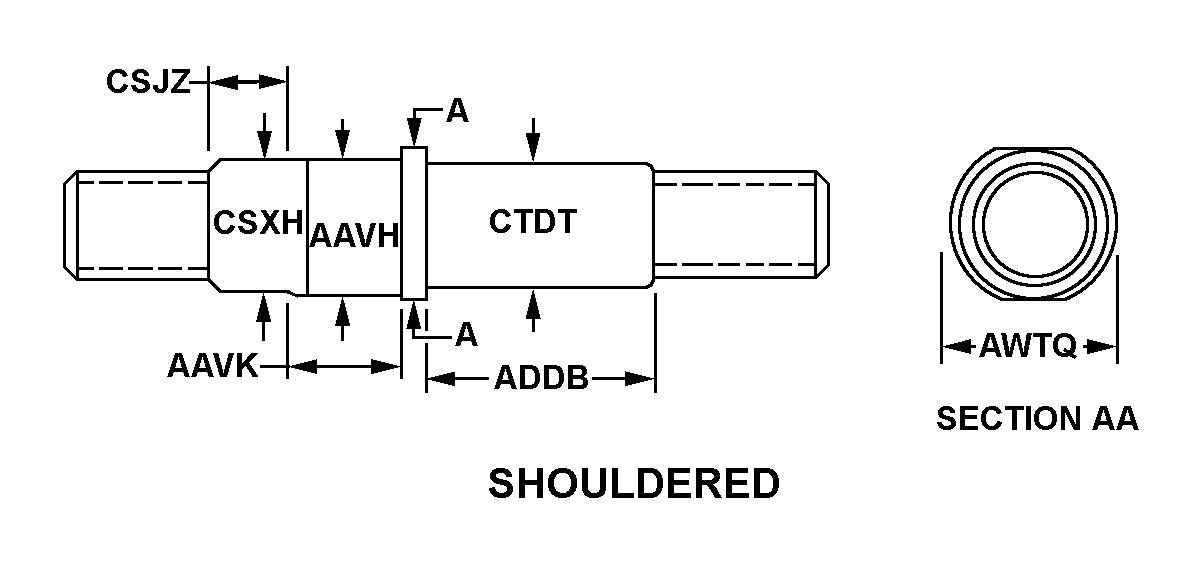

5307-01-365-0586 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 021360-450, 365872, 5307-01-365-0586, 01-365-0586, 5307013650586, 021360450, 013650586
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 SEP 1992 | 01-365-0586 | 15946 ( STUD, SHOULDERED ) |
Drawings & Photos | NSN 5307-01-365-0586
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-365-0586
Related Products | NSN 5307-01-365-0586
Technical Data | NSN 5307-01-365-0586
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE J429 GR 5 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ZINC AND PHOSPHATE OVERALL |
| STYLE DESIGNATOR | 99 SHOULDERED |
| SHOULDER DIAMETER | 0.500 INCHES NOMINAL |
| SHOULDER LENGTH | 0.300 INCHES MINIMUM AND 0.336 INCHES MAXIMUM |
| NUT END SHANK LENGTH | 4.290 INCHES MINIMUM AND 4.410 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.560 INCHES MINIMUM AND 0.600 INCHES MAXIMUM |
| STUD END SHANK LENGTH | 0.625 INCHES NOMINAL |
| STUD END SHANK DIAMETER | 0.3125 INCHES NOMINAL |
| NUT END SHANK DIAMETER | 0.3065 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |
| OVERALL LENGTH | 5.365 INCHES MINIMUM AND 5.461 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.3125 INCHES NUT THREAD 0.3125 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 24 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.875 INCHES NOMINAL NUT THREAD 0.625 INCHES NOMINAL STUD THREAD |
