NSN 5307-01-325-6099 23009784, 01-325-6099, 013256099
Product Details | SHOULDERED STUD
5307-01-325-6099 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 23009784, 5307-01-325-6099, 01-325-6099, 5307013256099, 013256099
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 SEP 1990 | 01-325-6099 | 15946 ( STUD, SHOULDERED ) |
Drawings & Photos | NSN 5307-01-325-6099
Demand History | NSN 5307-01-325-6099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23009784 | 2024-08-239 | 1 | DIBBS |
| 23009784 | 2024-06-157 | 1 | DIBBS |
| 23009784 | 2024-05-149 | 1 | DIBBS |
| 23009784 | 2022-04-116 | 1 | DIBBS |
Cross Reference | NSN 5307-01-325-6099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23009784 | 63005 | ROLLS-ROYCE CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-325-6099
Related Products | NSN 5307-01-325-6099
Technical Data | NSN 5307-01-325-6099
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5643 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

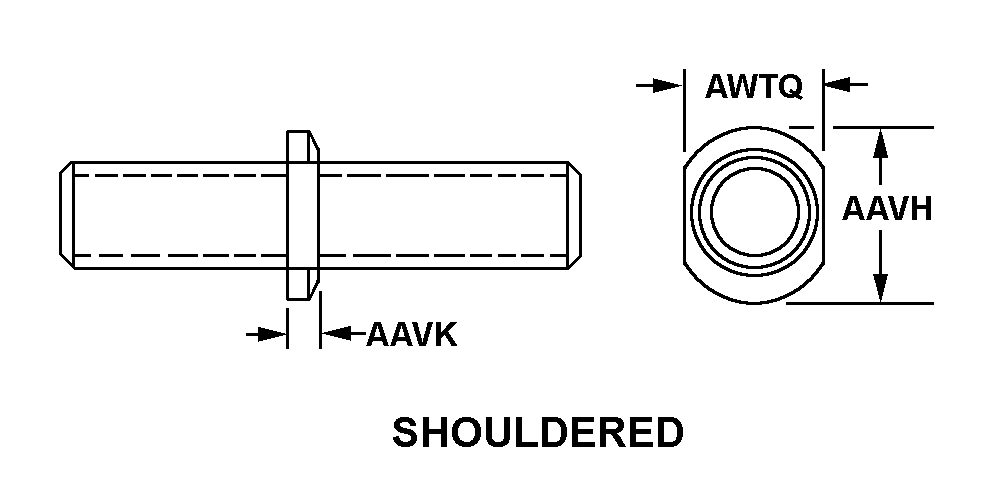

| STYLE DESIGNATOR | 96C SHOULDERED |
| SHOULDER DIAMETER | 0.562 INCHES NOMINAL |
| SHOULDER LENGTH | 0.062 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.438 INCHES NOMINAL |
| OVERALL LENGTH | 0.781 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 24 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.366 INCHES NOMINAL NUT THREAD 0.193 INCHES MINIMUM AND 0.203 INCHES MAXIMUM STUD THREAD |
| III SURFACE FINISH | 63.0 MICROINCHES NUT THD 32.0 MICROINCHES STUD THD |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | OVERALL SILVER |
Restrictions/Controls & Freight Information | NSN 5307-01-325-6099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-325-6099
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
