Product Details | SHOULDERED STUD
5307-01-286-2655 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 6473268001, 647-3268-001, 5307-01-286-2655, 01-286-2655, 5307012862655, 012862655
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 SEP 1988 | 01-286-2655 | 15946 ( STUD, SHOULDERED ) |

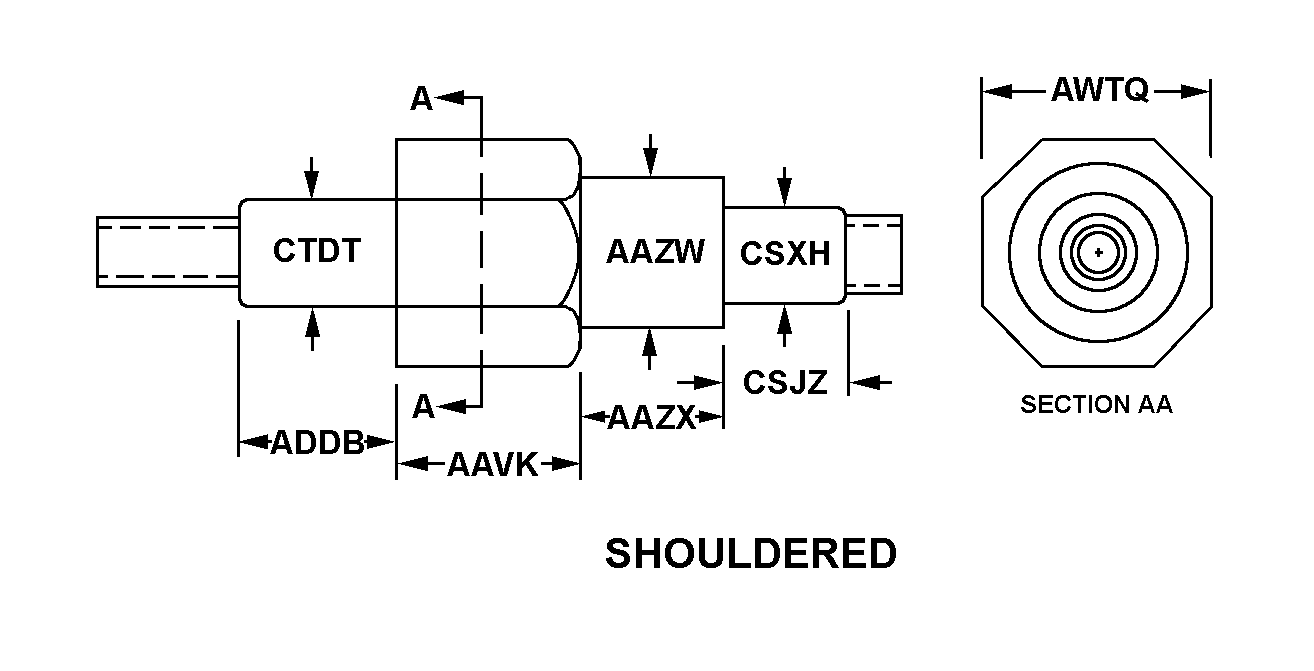

Drawings & Photos | NSN 5307-01-286-2655
Cross Reference | NSN 5307-01-286-2655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 647-3268-001 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-286-2655
Related Products | NSN 5307-01-286-2655
Technical Data | NSN 5307-01-286-2655
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 360 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 98 SHOULDERED |
| SHOULDER LENGTH | 0.300 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.050 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 0.312 INCHES NOMINAL |
| NUT END SHANK LENGTH | 0.404 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.312 INCHES NOMINAL |
| STUD END SHANK LENGTH | 0.061 INCHES NOMINAL |
| STUD END SHANK DIAMETER | 0.250 INCHES NOMINAL |
| NUT END SHANK DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.765 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 28 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.630 INCHES MINIMUM NUT THREAD 0.320 INCHES MINIMUM STUD THREAD |
| SPECIAL FEATURES | NUT END INTERNALLY THREADED 0.138 NOM. IN. THREAD SIZE; 32UNC THREADS PER INCH; 0.250 MIN. IN. DEEP; STUD END INTERNALLY THREADED 0.086 NOM. IN. THREAD SIZE; 56UNC THREADSPER INCH; 0.250 MIN. IN. DEEP; CHEMICAL FILM FINISH PER 580-0034-000,CAGEC 13499 |
