NSN 5307-01-226-9152 MS17295032, MS17295-032, 01-226-9152
Product Details | STEPPED STUD

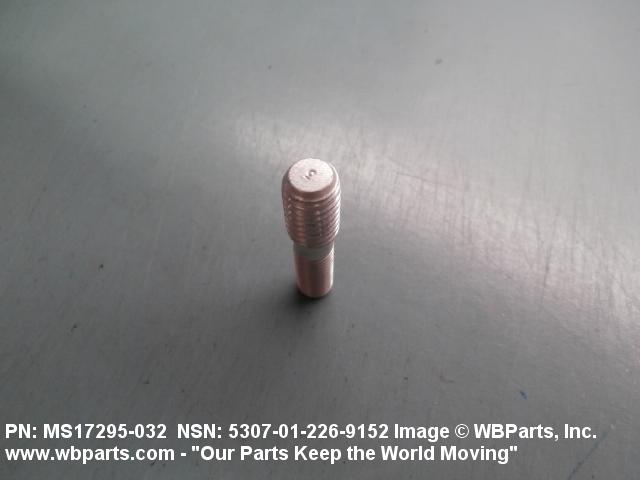

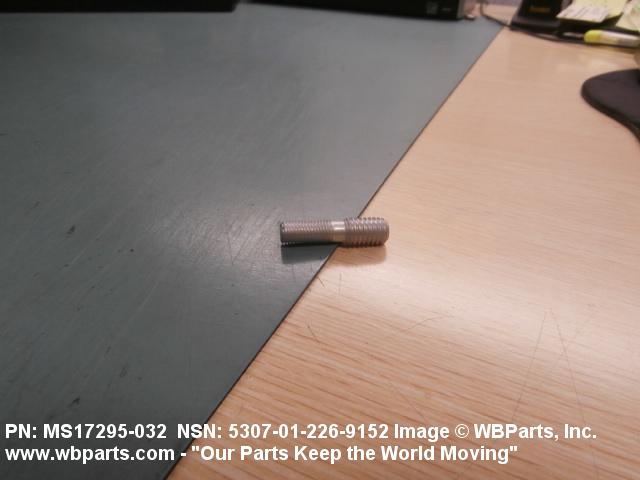

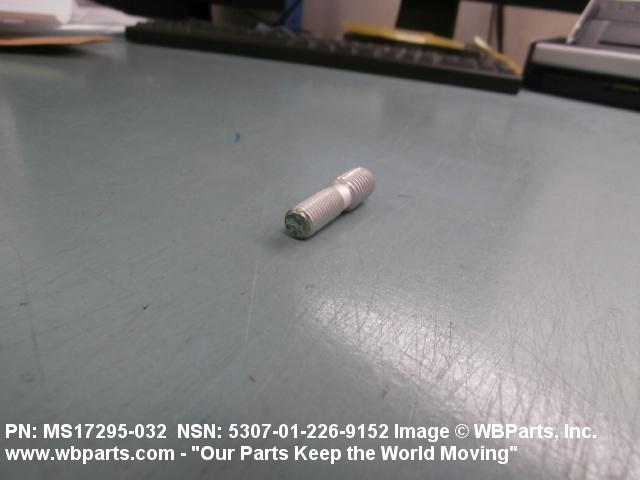

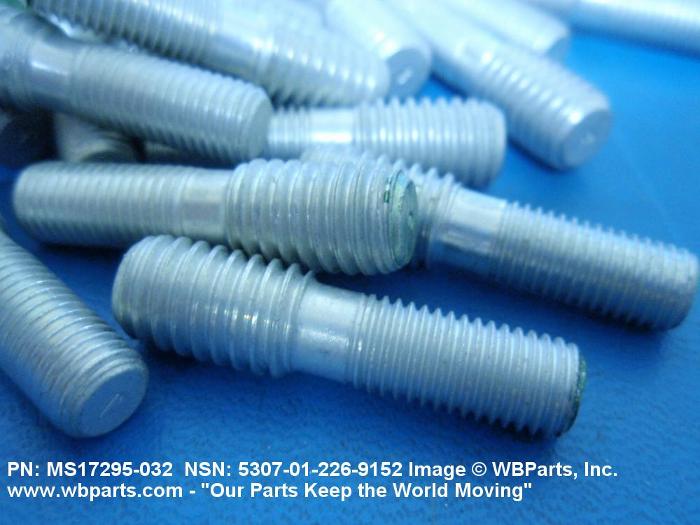

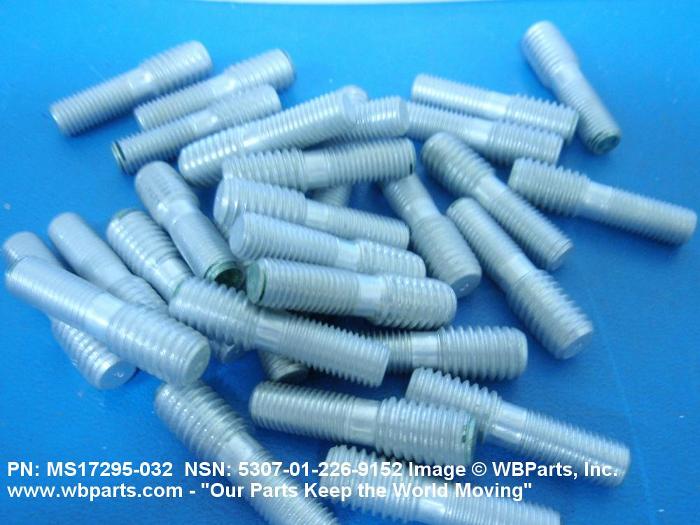

5307-01-226-9152 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.
Part Alternates: MS17295032, MS17295-032, 5307-01-226-9152, 01-226-9152, 5307012269152, 012269152
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 FEB 1986 | 01-226-9152 | 15949 ( STUD, STEPPED ) |

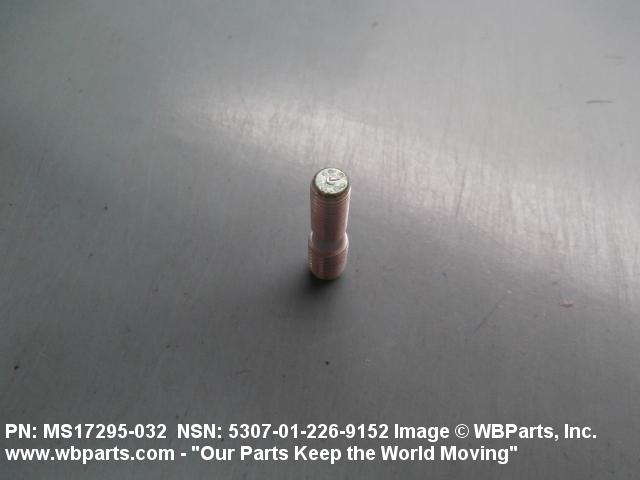

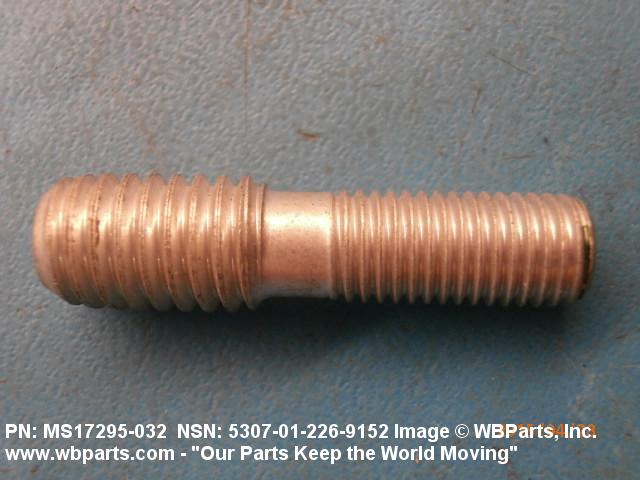

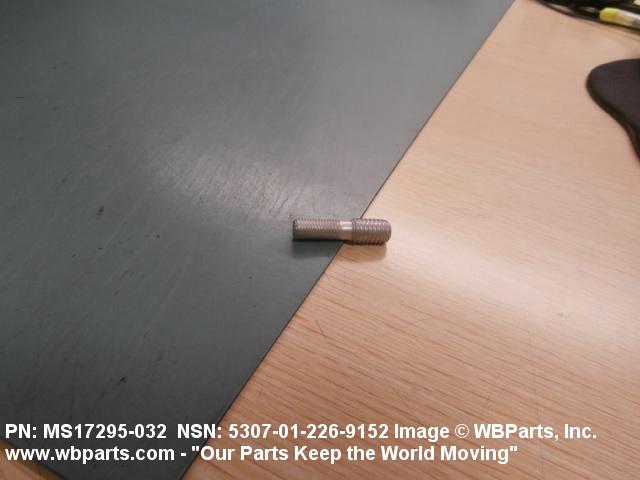

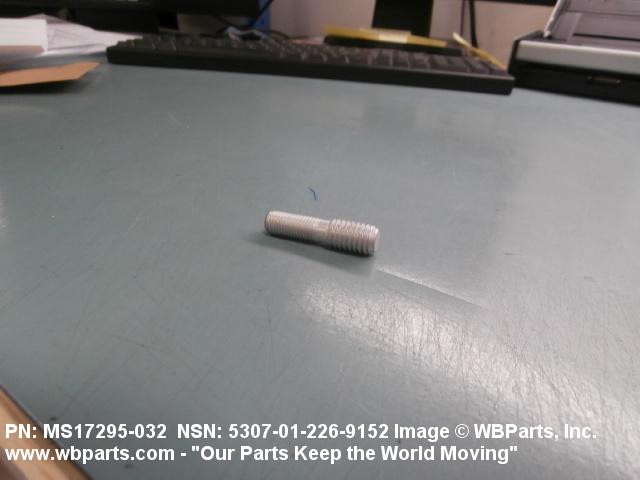

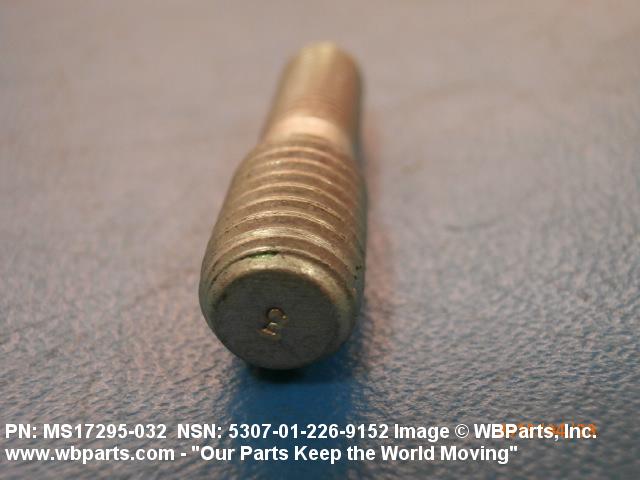

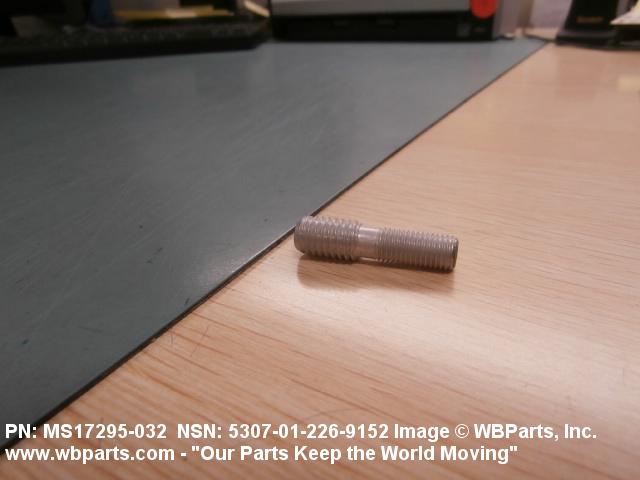

Drawings & Photos | NSN 5307-01-226-9152
Demand History | NSN 5307-01-226-9152
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17295032 | 2020-02-58 | 10 | Canada |
| MS17295032 | 2017-05-132 | 10 | Canada |
| MS17295032 | 2017-04-108 | 20 | Canada |
| MS17295032 | 2016-12-343 | 10 | Canada |
| MS17295032 | 2015-12-338 | 20 | Canada |
| MS17295032 | 2015-11-315 | 10 | Canada |
| MS17295032 | 2015-11-309 | 10 | Canada |
| 5307-01-226-9152 | 2015-05-149 | 27 | DIBBS |
| 5307-01-226-9152 | 2015-05-138 | 27 | DIBBS |
| MS17295032 | 2015-04-103 | 40 | Canada |
| MS17295032 | 2015-01-14 | 40 | Canada |
| MS17295032 | 2014-06-156 | 40 | Canada |
| MS17295032 | 2013-06-158 | 5 | Canada |
| MS17295032 | 2011-04-117 | 30 | Canada |
Cross Reference | NSN 5307-01-226-9152
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS17295-032 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-226-9152
Related Products | NSN 5307-01-226-9152
Technical Data | NSN 5307-01-226-9152
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 120 STEPPED |

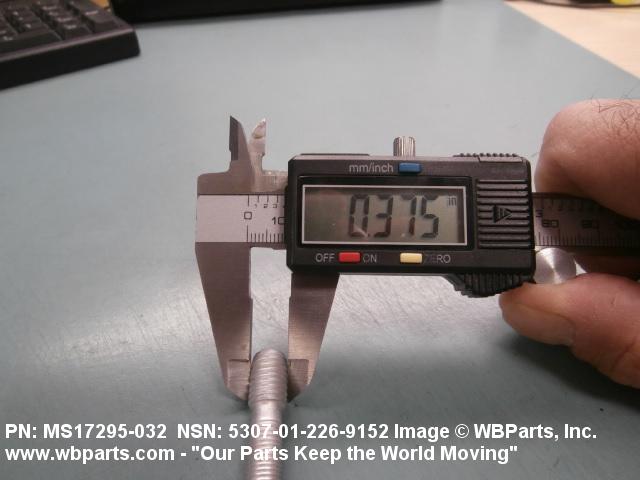

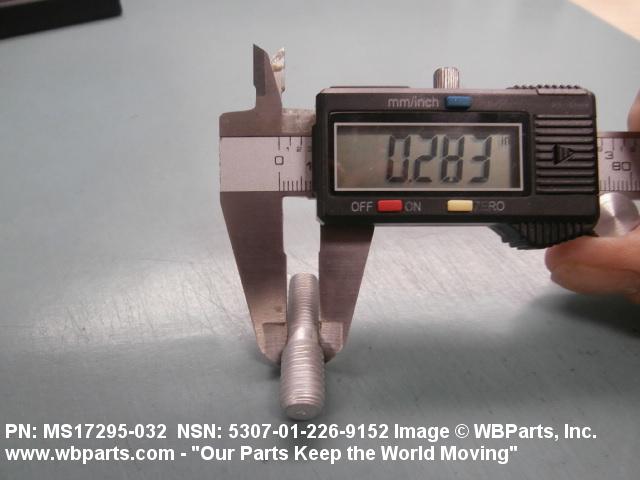

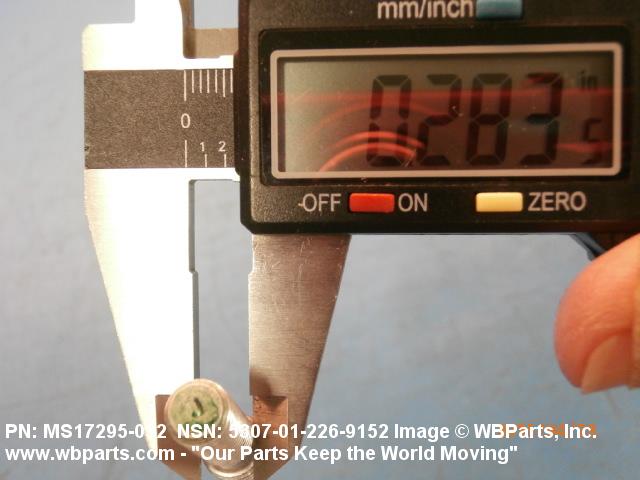

| SHANK DIAMETER | 0.279 INCHES MINIMUM AND 0.289 INCHES MAXIMUM |
| OVERALL LENGTH | 1.438 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF NUT THREAD UNJS STUD THREAD |

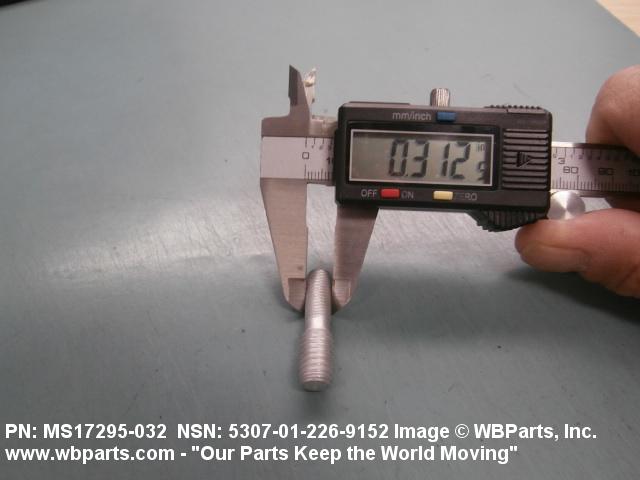

| NOMINAL THREAD SIZE | 0.3125 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD PITCH DIAMETERS | 0.3354 TO 0.3374 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |

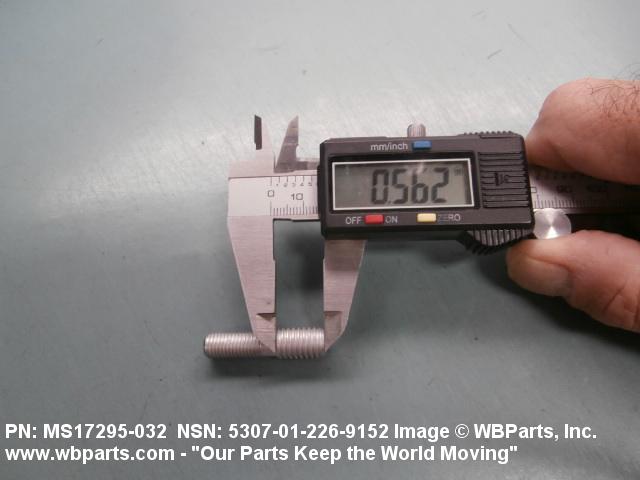

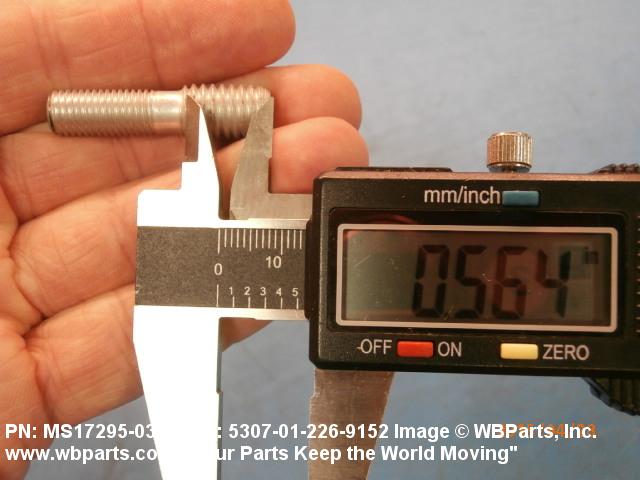

| THREAD LENGTH | 0.625 INCHES MINIMUM NUT THREAD 0.562 INCHES NOMINAL STUD THREAD |
