NSN 5307-01-185-3539 634A382006, 634A382-006, 634A382P6
Product Details | SHOULDERED STUD
5307-01-185-3539 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 634A382006, 634A382-006, 634A382P6, 5307-01-185-3539, 01-185-3539, 5307011853539, 011853539
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUL 1984 | 01-185-3539 | 15946 ( STUD, SHOULDERED ) |

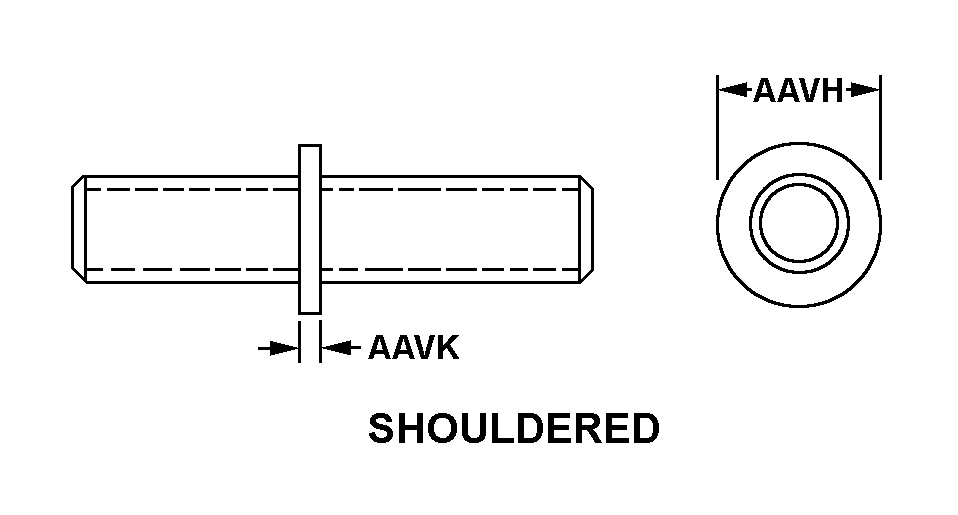

Drawings & Photos | NSN 5307-01-185-3539
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-185-3539
Technical Data | NSN 5307-01-185-3539
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1018 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A576 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 97C SHOULDERED |
| SHOULDER DIAMETER | 0.9985 INCHES MINIMUM AND 0.9990 INCHES MAXIMUM |
| SHOULDER LENGTH | 3.000 INCHES NOMINAL |
| OVERALL LENGTH | 4.625 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.750 INCHES NUT THREAD 0.750 INCHES STUD THREAD |
| THREAD QUANTITY PER INCH | 10 NUT THREAD 10 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.812 INCHES NOMINAL NUT THREAD 0.812 INCHES NOMINAL STUD THREAD |
| MANUFACTURERS CODE | 01289 |
| DESIGN CONTROL REFERENCE | 634A382P6 |
Restrictions/Controls & Freight Information | NSN 5307-01-185-3539
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-185-3539
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
