NSN 5307-01-101-6142 CA17037, G2652881, G265288-1
Product Details | LOCKED IN STUD
5307-01-101-6142 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: CA17037, G2652881, G265288-1, 1046G1, 1046G-1, 3179804, 5307-01-101-6142, 01-101-6142, 5307011016142, 011016142
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 OCT 1980 | 01-101-6142 | 16012 ( STUD, LOCKED IN ) |

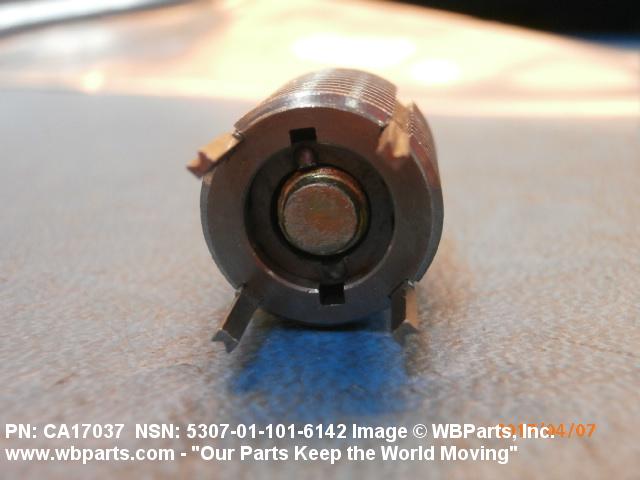

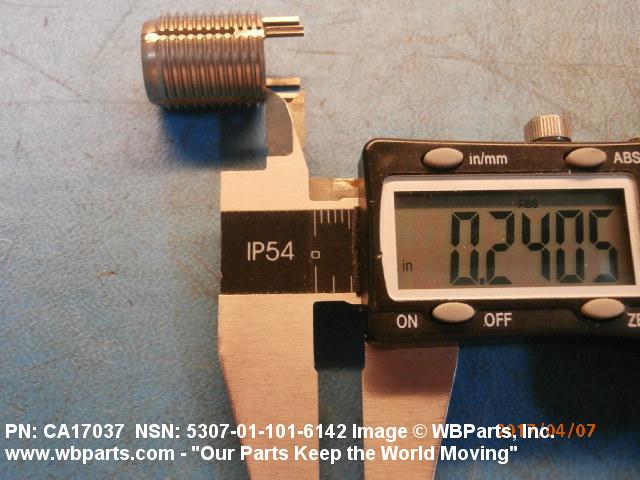

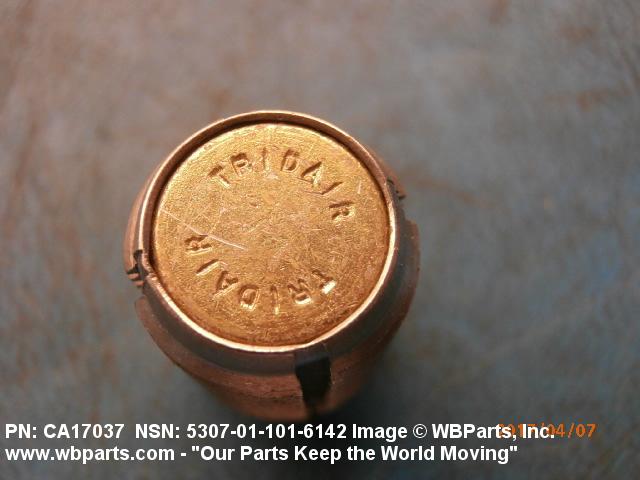

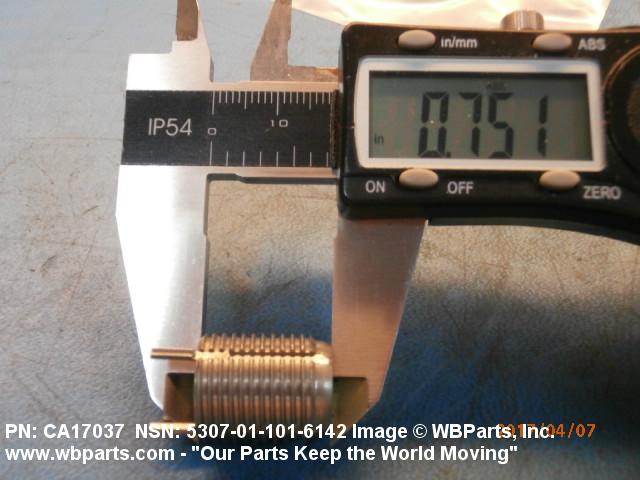

Drawings & Photos | NSN 5307-01-101-6142
Demand History | NSN 5307-01-101-6142
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA17037 | 2023-06-170 | 2 | DIBBS |
| CA17037 | 2023-02-51 | 27 | DIBBS |
| CA17037 | 2022-03-89 | 35 | DIBBS |
| 5307-01-101-6142 | 2022-03-70 | 20 | US |
| CA17037 | 2021-08-220 | 35 | DIBBS |
| 5307-01-101-6142 | 2021-04-106 | 300 | TW |
| 5307-01-101-6142 | 2017-07-186 | 50 | DIBBS |
| 5307-01-101-6142 | 2017-03-89 | 2 | United States |
| 5307-01-101-6142 | 2017-02-37 | 12 | Japan |
| 5307-01-101-6142 | 2017-01-20 | 12 | Japan |
| 5307-01-101-6142 | 2016-12-356 | 23 | DIBBS |
| 5307-01-101-6142 | 2016-12-348 | 23 | DIBBS |
| CA17037 | 2016-03-64 | 20 | US |
| 5307-01-101-6142 | 2012-12-339 | 62 | DIBBS |
| 5307-01-101-6142 | 2012-06-158 | 200 | DIBBS |
| 5307-01-101-6142 | 2012-02-40 | 68 | DIBBS |
| 5307-01-101-6142 | 2011-12-363 | 7 | DIBBS |
| 5307-01-101-6142 | 2011-12-363 | 34 | DIBBS |
| 5307-01-101-6142 | 2011-08-230 | 25 | DIBBS |
| 5307-01-101-6142 | 2011-05-151 | 25 | DIBBS |
| 5307-01-101-6142 | 2011-01-10 | 13 | DIBBS |
| 5307-01-101-6142 | 2010-08-236 | 13 | DIBBS |
| CA17037 | 2010-07-204 | 30 | us |
| 5307-01-101-6142 | 2010-05-126 | 6 | DIBBS |
| CA17037 | 2010-01-22 | 12 | US |
| 5307-01-101-6142 | 2009-04-99 | 2 | US |
| CA17037 | 2009-02-47 | 12 | US |
| CA17037 | 2009-01-21 | 6 | US |
| 5307-01-101-6142 | 2008-08-234 | 1 | DIBBS |
| 5307-01-101-6142 | 2008-08-234 | 2 | DIBBS |
| 5307-01-101-6142 | 2008-08-234 | 19 | DIBBS |
Cross Reference | NSN 5307-01-101-6142
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-101-6142
Related Products | NSN 5307-01-101-6142
Technical Data | NSN 5307-01-101-6142
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 303 OR STEEL COMP 303SE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6322 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A582 TY303 OR 303SE ASSN STD 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

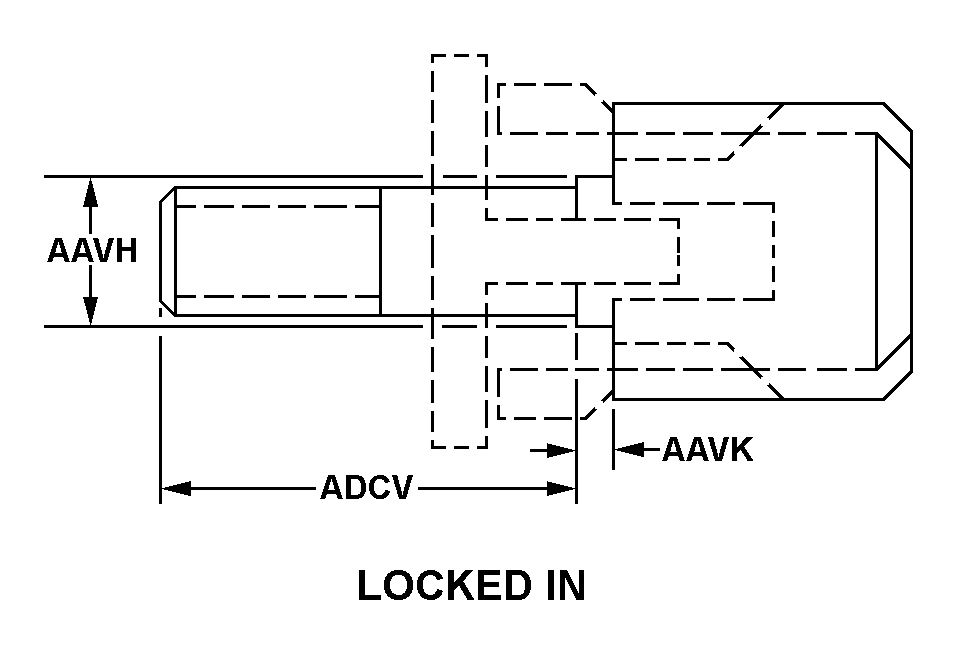

| STYLE DESIGNATOR | 38 LOCKED IN |
