NSN 5307-01-101-8195 KAD16160, KAD-16-160, 01-101-8195
Product Details | SHOULDERED AND STEPPED STUD
5307-01-101-8195 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: KAD16160, KAD-16-160, 5307-01-101-8195, 01-101-8195, 5307011018195, 011018195
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 OCT 1980 | 01-101-8195 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

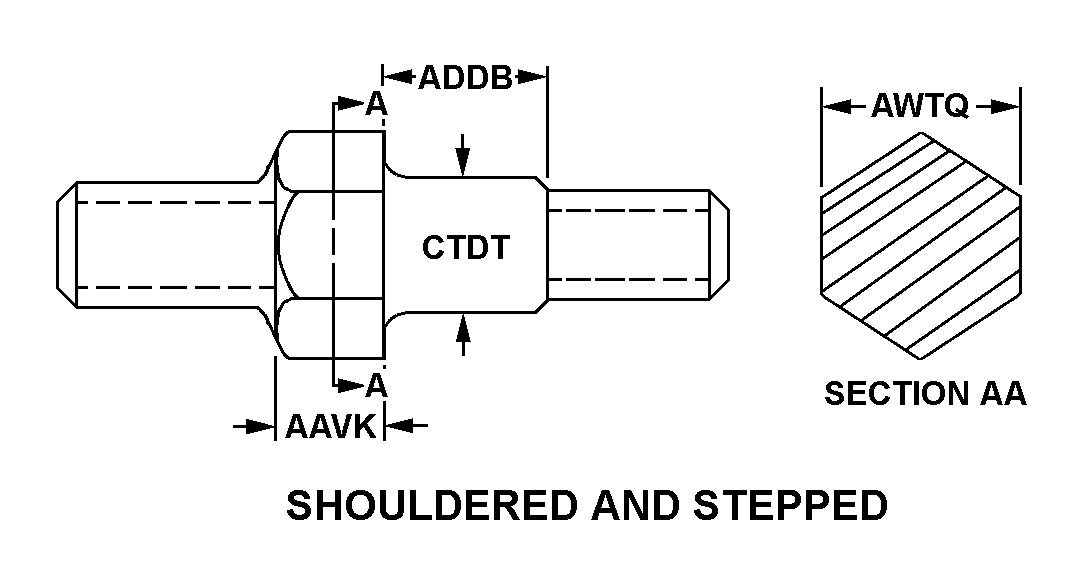

Drawings & Photos | NSN 5307-01-101-8195
Cross Reference | NSN 5307-01-101-8195
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KAD-16-160 | 80103 | VEECO INSTRUMENTS INC LAMBDA DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-101-8195
Related Products | NSN 5307-01-101-8195
Technical Data | NSN 5307-01-101-8195
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1141 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PAINT OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-10727,TY1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 105 SHOULDERED AND STEPPED |
| SHOULDER LENGTH | 0.125 INCHES NOMINAL |
| NUT END SHANK LENGTH | 0.375 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.312 INCHES NOMINAL |
| NUT END SHANK DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.078 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.164 INCHES NUT THREAD 0.190 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD 32 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.265 INCHES NOMINAL NUT THREAD 0.313 INCHES NOMINAL STUD THREAD |
Restrictions/Controls & Freight Information | NSN 5307-01-101-8195
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-101-8195
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
