NSN 5307-01-103-4428 5006295, 01-103-4428, 011034428
Product Details | SHOULDERED AND STEPPED STUD
5307-01-103-4428 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: 5006295, 5307-01-103-4428, 01-103-4428, 5307011034428, 011034428
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 NOV 1980 | 01-103-4428 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

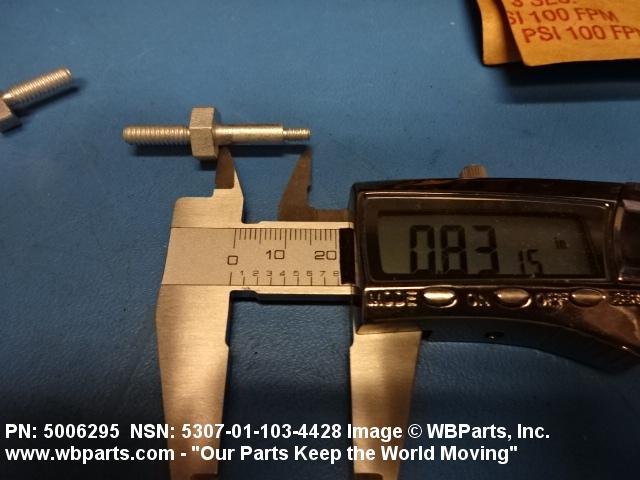

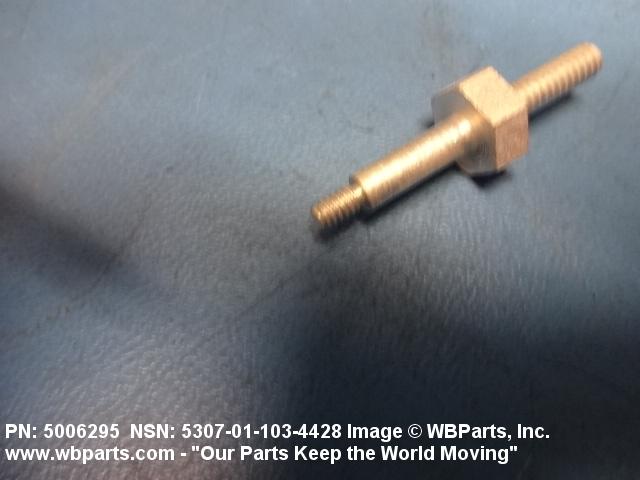

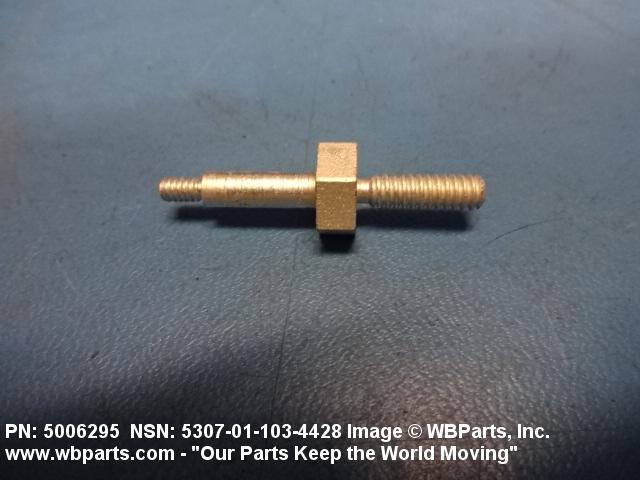

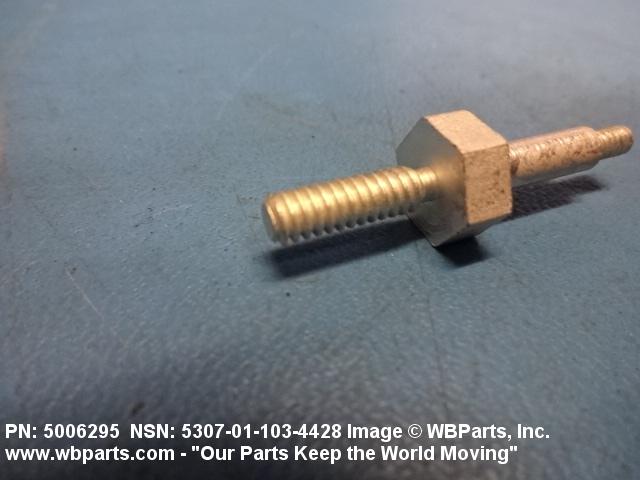

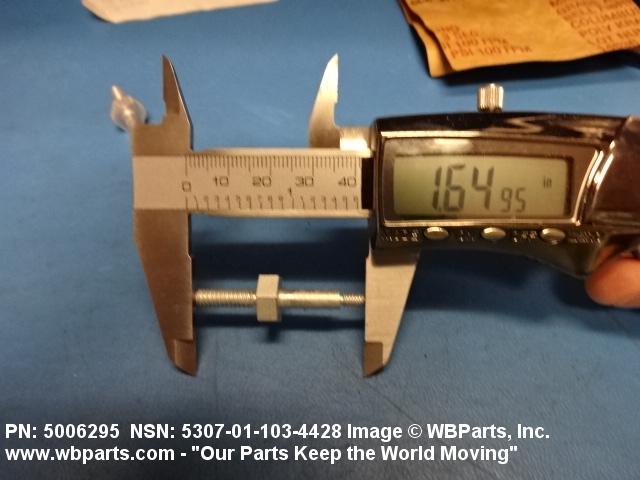

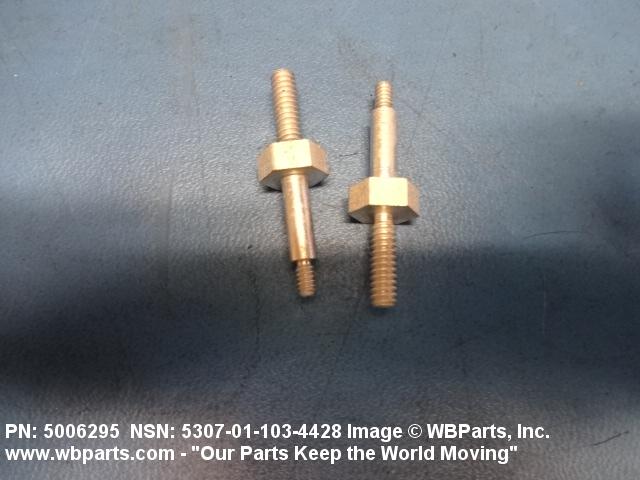

Drawings & Photos | NSN 5307-01-103-4428
Demand History | NSN 5307-01-103-4428
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-103-4428 | 2021-08-243 | 50 | Singapore |
| 5307-01-103-4428 | 2021-08-217 | 50 | Singapore |
| 5307-01-103-4428 | 2021-04-102 | 10 | US |
| 5307-01-103-4428 | 2020-02-48 | 79 | DIBBS |
| 5307-01-103-4428 | 2018-11-309 | 202 | DIBBS |
| 5307-01-103-4428 | 2018-10-301 | 202 | DIBBS |
| 5307-01-103-4428 | 2018-07-211 | 6 | DIBBS |
| 5307-01-103-4428 | 2018-07-203 | 6 | DIBBS |
| 5307-01-103-4428 | 2018-05-122 | 203 | DIBBS |
| 5307-01-103-4428 | 2018-04-114 | 203 | DIBBS |
| 5307-01-103-4428 | 2018-03-74 | 107 | United States |
| 5307-01-103-4428 | 2018-02-52 | 151 | DIBBS |
| 5307-01-103-4428 | 2017-07-186 | 241 | DIBBS |
| 5307-01-103-4428 | 2017-03-73 | 39 | DIBBS |
| 5307-01-103-4428 | 2015-10-287 | 296 | DIBBS |
| 5307-01-103-4428 | 2015-10-279 | 296 | DIBBS |
| 5307-01-103-4428 | 2014-12-356 | 460 | DIBBS |
| 5307-01-103-4428 | 2014-09-255 | 326 | DIBBS |
| 5307-01-103-4428 | 2014-09-247 | 326 | DIBBS |
Cross Reference | NSN 5307-01-103-4428
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5006295 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-103-4428
Related Products | NSN 5307-01-103-4428
Technical Data | NSN 5307-01-103-4428
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OR STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6370 ASSN STD 1ST MATERIAL RESPONSE AND AMS 6382 ASSN STD 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 105 SHOULDERED AND STEPPED |
| SHOULDER LENGTH | 0.165 INCHES NOMINAL |

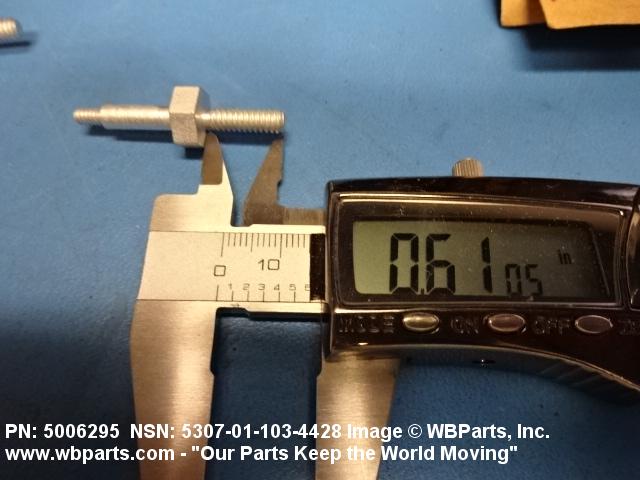

| NUT END SHANK LENGTH | 0.575 INCHES NOMINAL |

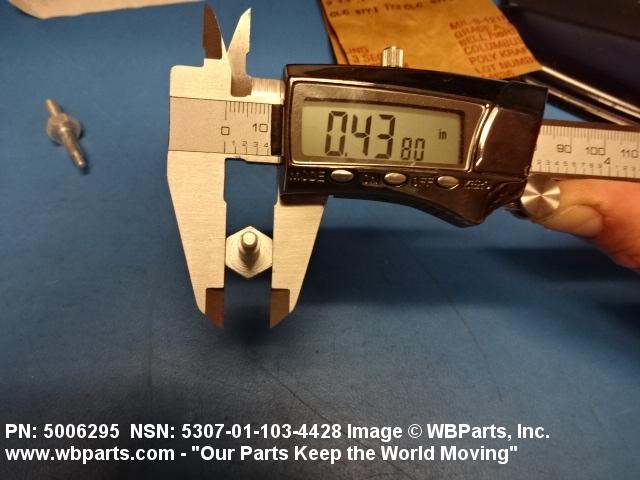

| DISTANCE ACROSS FLATS | 0.438 INCHES NOMINAL |

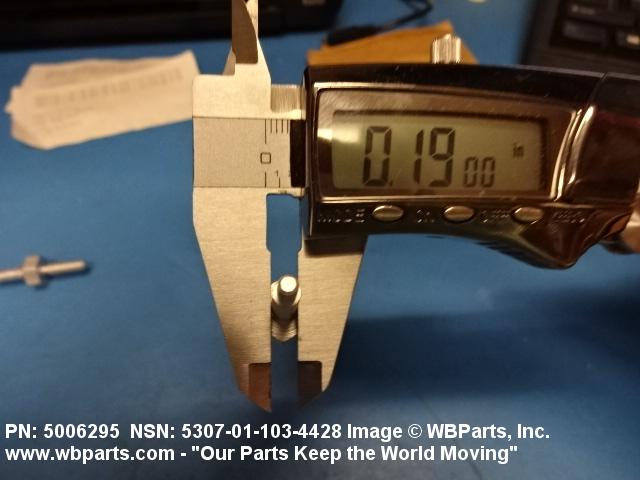

| NUT END SHANK DIAMETER | 0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| OVERALL LENGTH | 2.831 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.235 INCHES NOMINAL NUT THREAD 0.750 INCHES NOMINAL STUD THREAD |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 5006295 |
Restrictions/Controls & Freight Information | NSN 5307-01-103-4428
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-103-4428
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
