NSN 5307-01-359-8943 1220C0845, 01-359-8943, 013598943
Product Details | SHOULDERED AND STEPPED STUD
5307-01-359-8943 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: 1220C0845, 5307-01-359-8943, 01-359-8943, 5307013598943, 013598943
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUN 1992 | 01-359-8943 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

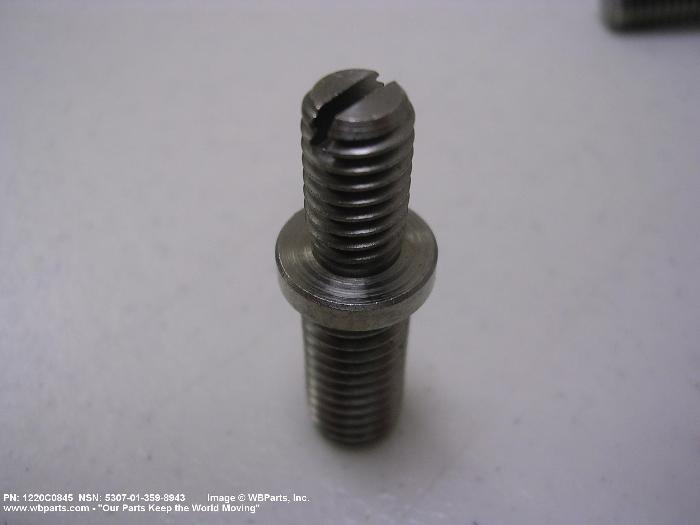

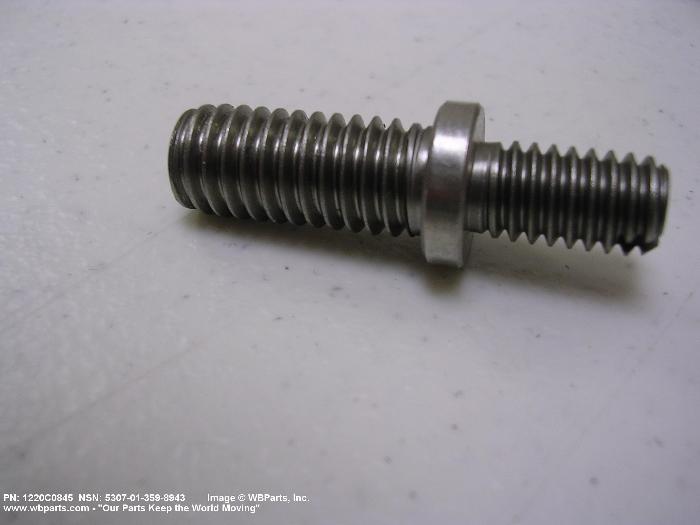

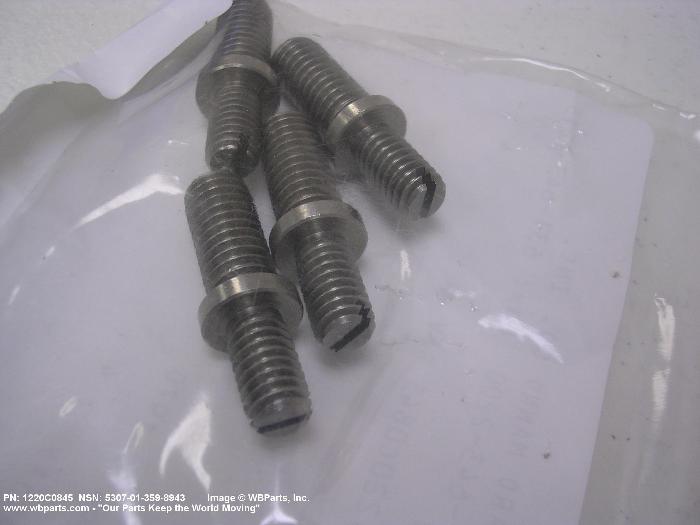

Drawings & Photos | NSN 5307-01-359-8943
Demand History | NSN 5307-01-359-8943
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-359-8943 | 2020-02-57 | 2 | United States |
| 5307-01-359-8943 | 2015-11-308 | 32 | DIBBS |
| 5307-01-359-8943 | 2014-12-350 | 2 | DIBBS |
| 5307-01-359-8943 | 2014-09-262 | 4 | DIBBS |
| 5307-01-359-8943 | 2014-09-251 | 4 | DIBBS |
| 1220C0845 | 2007-08-227 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-359-8943
Related Products | NSN 5307-01-359-8943
Technical Data | NSN 5307-01-359-8943
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 TY 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 107 SHOULDERED AND STEPPED |
| SHOULDER DIAMETER | 0.500 INCHES NOMINAL |
| SHOULDER LENGTH | 0.060 INCHES NOMINAL |
| NUT END SHANK LENGTH | 0.100 INCHES NOMINAL |
| STUD END SHANK LENGTH | 0.060 INCHES NOMINAL |
| STUD END SHANK DIAMETER | 0.290 INCHES NOMINAL |
| NUT END SHANK DIAMETER | 0.238 INCHES NOMINAL |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.312 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 18 NUT THREAD 16 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.500 INCHES NOMINAL NUT THREAD 0.780 INCHES NOMINAL STUD THREAD |
| SPECIAL FEATURES | SLOT ON NUT END 0.060 IN DIA AND 0.120 IN DEPTH |
Restrictions/Controls & Freight Information | NSN 5307-01-359-8943
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-359-8943
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
