NSN 5307-01-448-9708 MS518332018, MS51833-201-8, 01-448-9708
Product Details | LOCKED IN STUD
5307-01-448-9708 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: MS518332018, MS51833-201-8, 5307-01-448-9708, 01-448-9708, 5307014489708, 014489708
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1997 | 01-448-9708 | 16012 ( STUD, LOCKED IN ) |

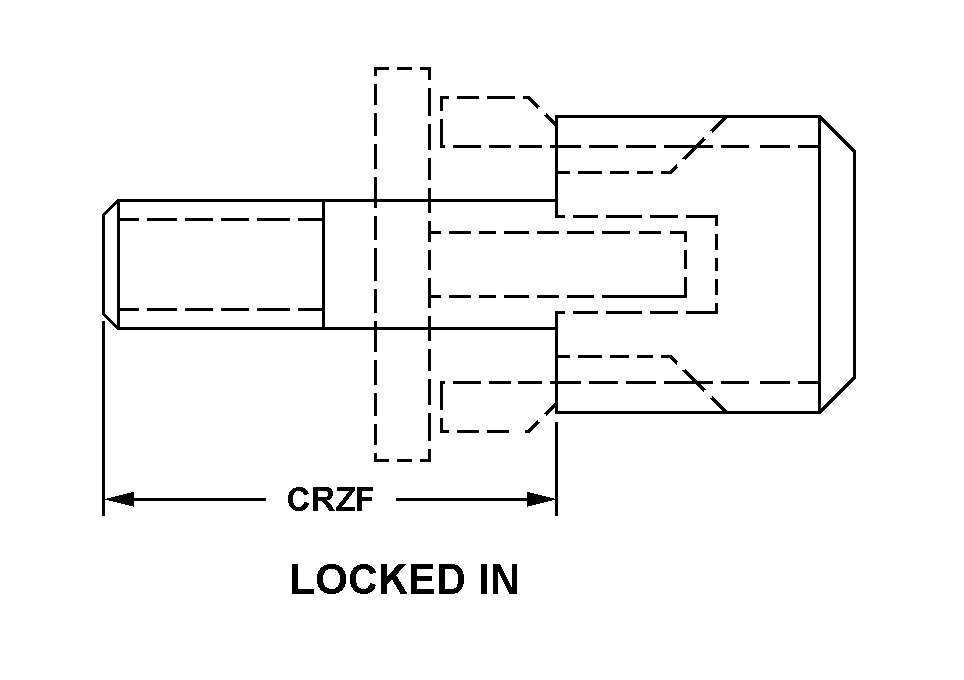

Drawings & Photos | NSN 5307-01-448-9708
Demand History | NSN 5307-01-448-9708
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS518332018 | 2012-01-17 | 300 | United States |
| MS518332018 | 2012-01-17 | 1200 | United States |
| MS518332018 | 2009-08-223 | 15 | United States |
| MS518332018 | 2009-08-219 | 15 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-448-9708
Technical Data | NSN 5307-01-448-9708
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| STYLE DESIGNATOR | 39 LOCKED IN |
| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJC NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 18 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.297 INCHES MINIMUM AND 0.327 INCHES MAXIMUM NUT THREAD 0.395 INCHES MINIMUM AND 0.425 INCHES MAXIMUM STUD THREAD |
| LOCKING FEATURE | KEY INSERTS |
| SPECIFICATION/STANDARD DATA | 96906-MS51833-201-8 GOVERNMENT STANDARD |
| III HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5307-01-448-9708
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
