Product Details | LOCKED IN STUD

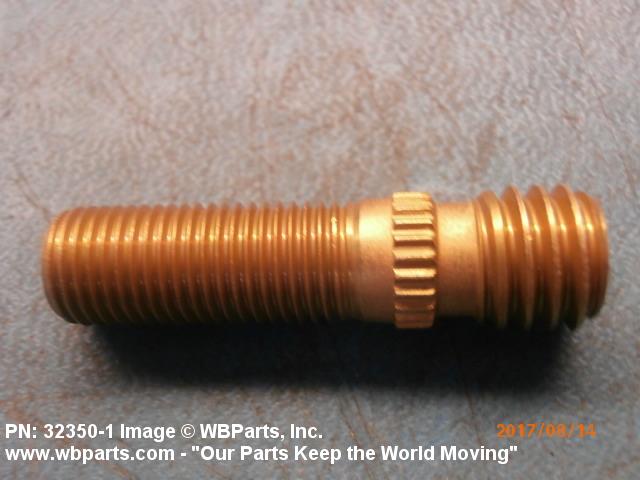

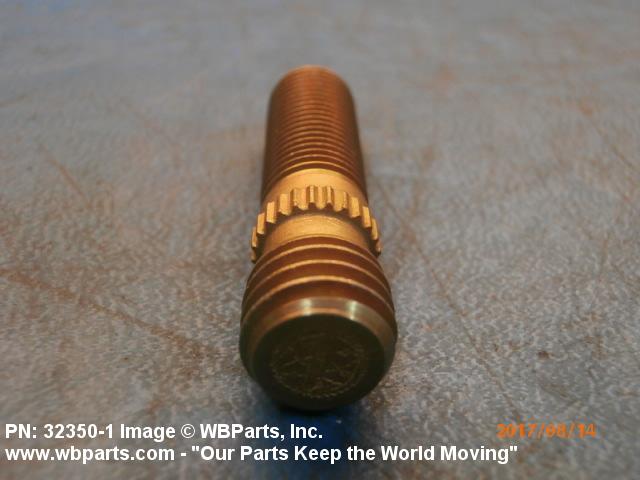

5307-00-959-6770 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: 323501, 32350-1, 5307-00-959-6770, 00-959-6770, 5307009596770, 009596770
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-959-6770 | 16012 ( STUD, LOCKED IN ) |

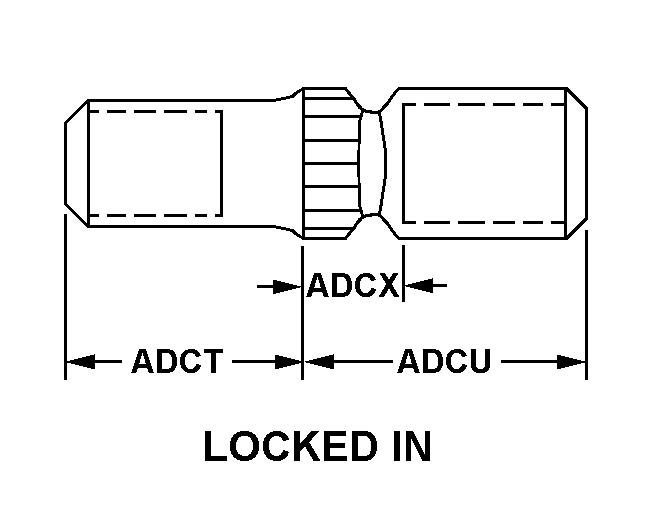

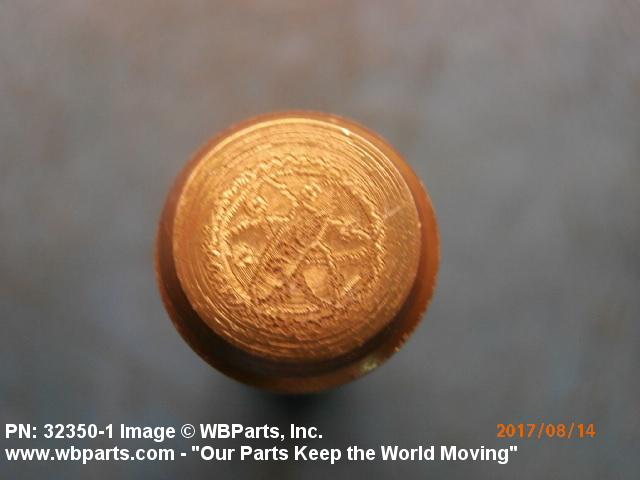

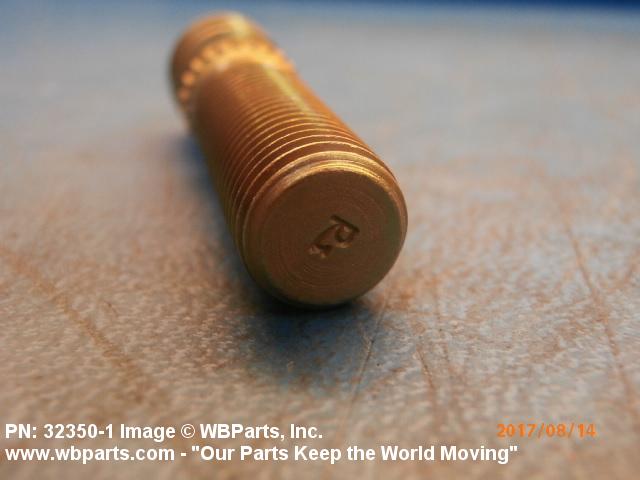

Drawings & Photos | NSN 5307-00-959-6770
Demand History | NSN 5307-00-959-6770
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-959-6770 | 2024-07-190 | 16 | DIBBS |
| 5307-00-959-6770 | 2024-06-177 | 16 | DIBBS |
| 5307-00-959-6770 | 2024-03-73 | 19 | DIBBS |
| 5307-00-959-6770 | 2023-03-73 | 10 | DIBBS |
| 5307-00-959-6770 | 2022-07-191 | 10 | DIBBS |
| 5307-00-959-6770 | 2020-07-211 | 7 | DIBBS |
| 5307-00-959-6770 | 2020-04-99 | 7 | DIBBS |
| 5307-00-959-6770 | 2019-12-340 | 3 | DIBBS |
| 5307-00-959-6770 | 2019-11-332 | 3 | DIBBS |
| 5307-00-959-6770 | 2019-09-272 | 8 | DIBBS |
| 5307-00-959-6770 | 2018-07-198 | 20 | DIBBS |
| 323501 | 2017-07-199 | 5 | United States |
| 323501 | 2017-07-198 | 5 | United States |
Cross Reference | NSN 5307-00-959-6770
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32350-1 | 55820 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-959-6770
Related Products | NSN 5307-00-959-6770
Technical Data | NSN 5307-00-959-6770
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758,COND F MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 35 LOCKED IN |

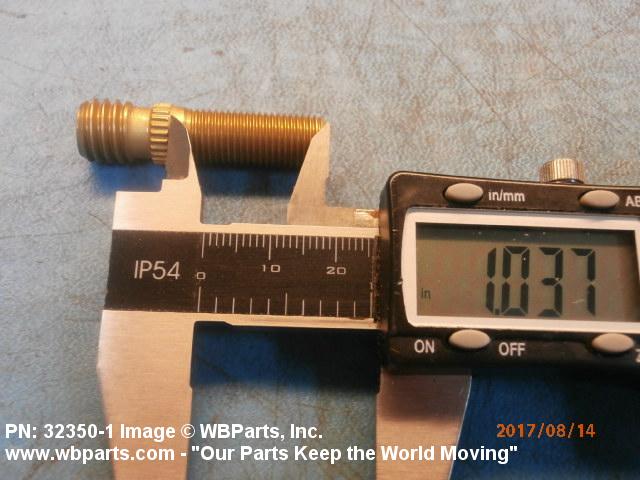

| DISTANCE FROM SERRATED PORTION TO NUT END | 1.031 INCHES NOMINAL |

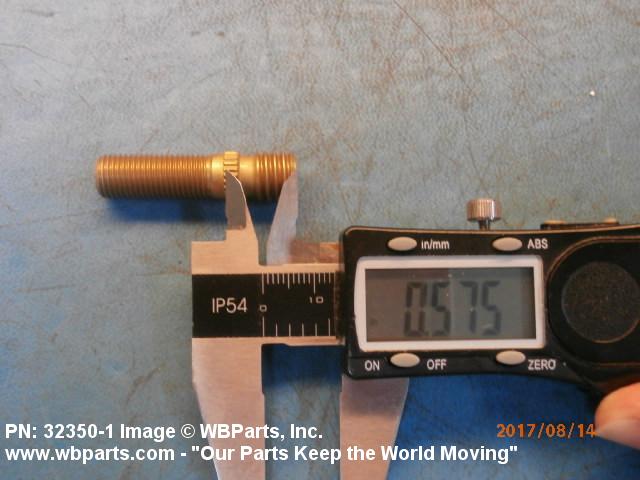

| DISTANCE FROM SERRATED PORTION TO STUD END | 0.576 INCHES MINIMUM AND 0.586 INCHES MAXIMUM |
| DISTANCE FROM SERRATED PORTION TO END OF STUD THREAD | 0.230 INCHES NOMINAL |

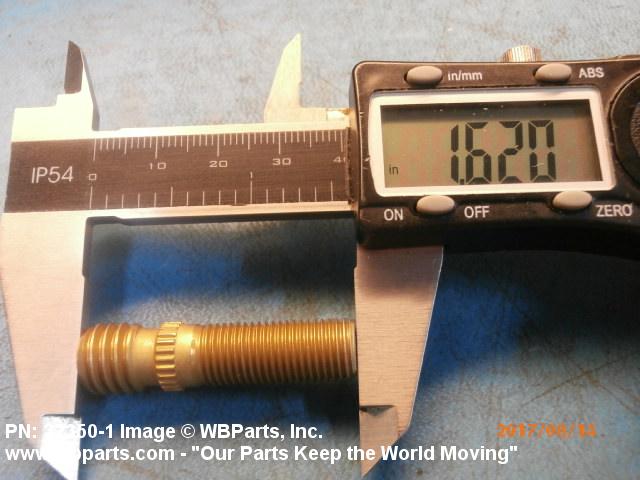

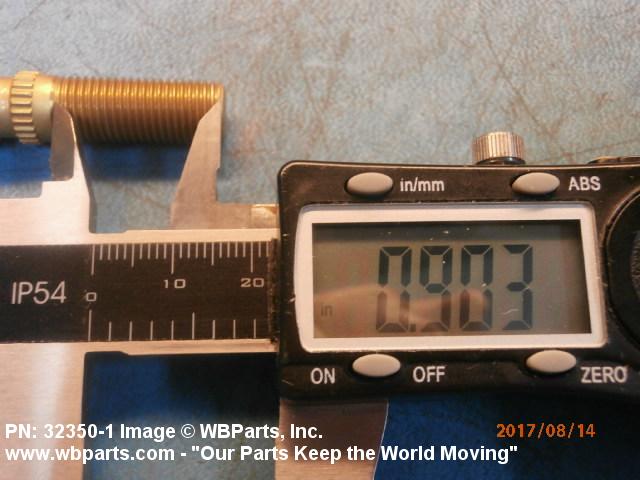

| OVERALL LENGTH | 1.607 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |

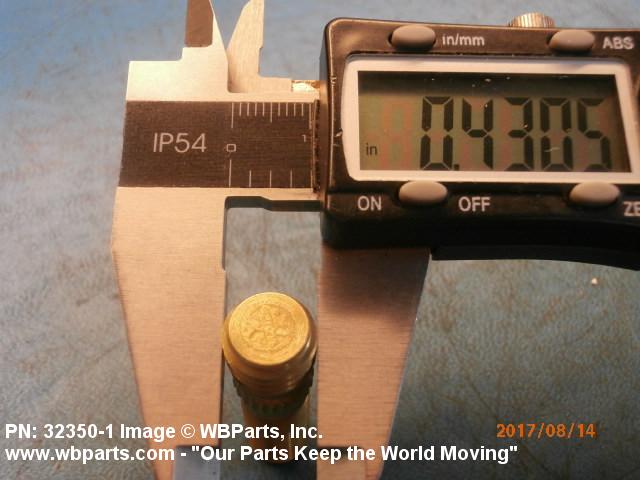

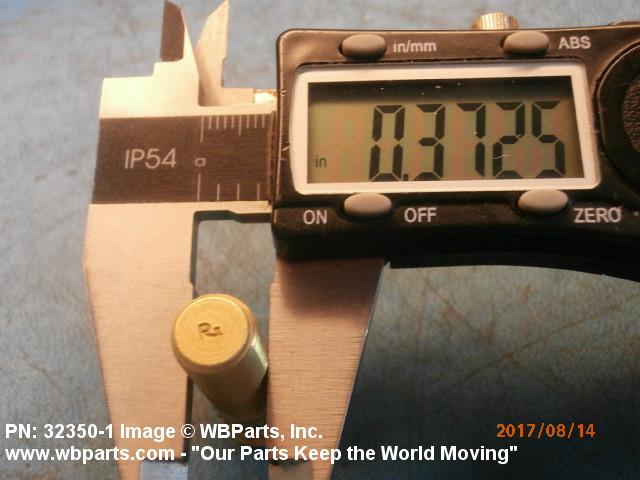

| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD 0.438 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |

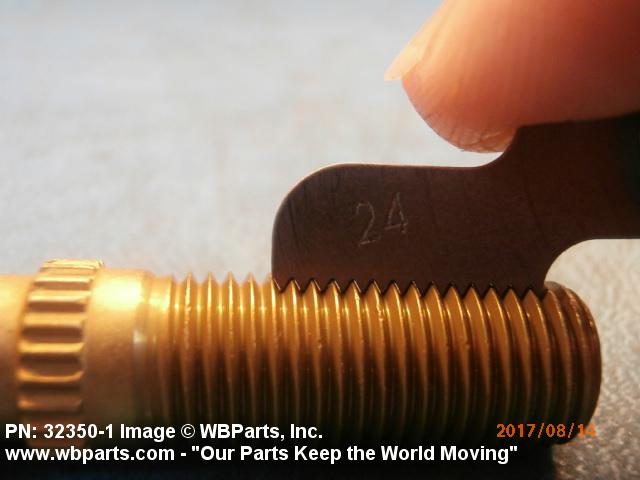

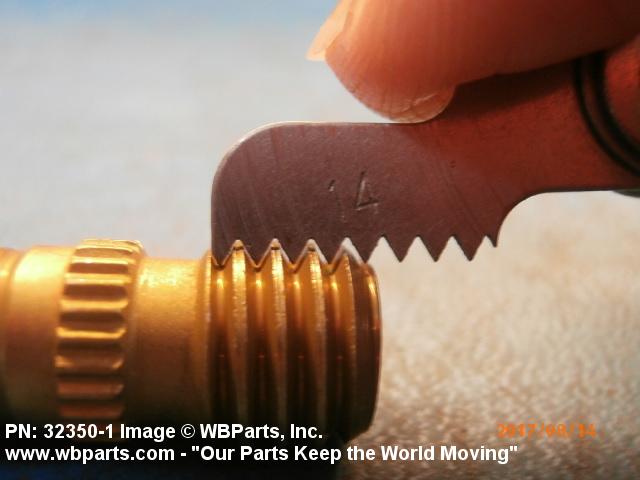

| THREAD QUANTITY PER INCH | 24 NUT THREAD 14 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.3926 TO 0.3946 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |

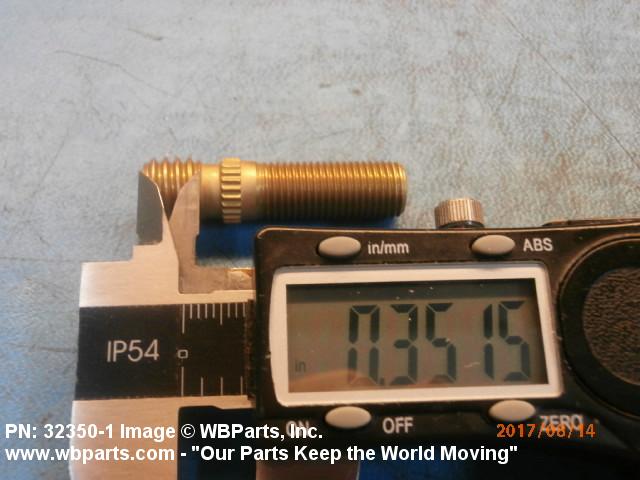

| THREAD LENGTH | 0.620 INCHES NOMINAL NUT THREAD 0.351 INCHES NOMINAL STUD THREAD |

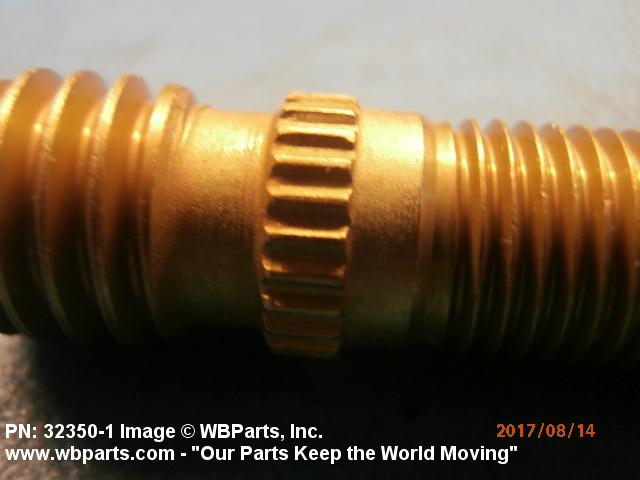

| LOCKING FEATURE | RING, LOCK SERRATED |
| MANUFACTURERS CODE | 55820 |
| DESIGN CONTROL REFERENCE | 32350-1 |
