NSN 5307-01-176-8435 RZA12156P04, 9117M41P04, 01-176-8435
Product Details | LOCKED IN STUD
5307-01-176-8435 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: RZA12156P04, 9117M41P04, 5307-01-176-8435, 01-176-8435, 5307011768435, 011768435
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 APR 1984 | 01-176-8435 | 16012 ( STUD, LOCKED IN ) |

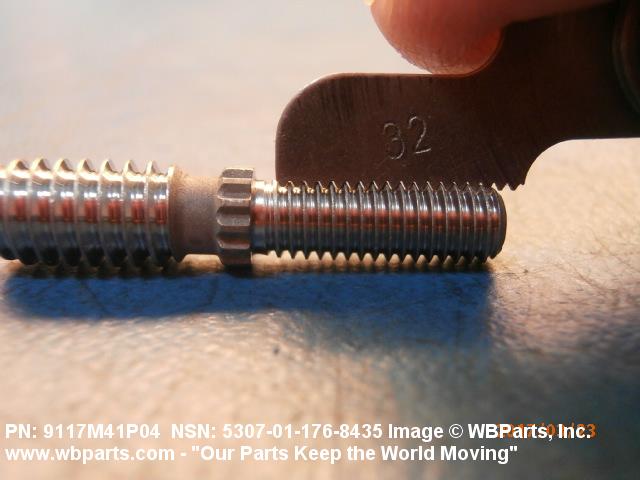

Drawings & Photos | NSN 5307-01-176-8435
Demand History | NSN 5307-01-176-8435
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9117M41P04 | 2017-04-95 | 5 | Canada |
| 9117M41P04 | 2017-03-73 | 5 | Canada |
| 9117M41P04 | 2017-03-69 | 5 | Canada |
| 5307-01-176-8435 | 2012-08-237 | 14 | DIBBS |
| 5307-01-176-8435 | 2012-08-229 | 14 | DIBBS |
| 5307-01-176-8435 | 2011-09-263 | 11 | DIBBS |
| 9117M41P04 | 2009-03-61 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-176-8435
Related Products | NSN 5307-01-176-8435
Technical Data | NSN 5307-01-176-8435
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5734 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 35 LOCKED IN |
| DISTANCE FROM SERRATED PORTION TO NUT END | 0.547 INCHES MINIMUM AND 0.577 INCHES MAXIMUM |
| DISTANCE FROM SERRATED PORTION TO STUD END | 0.580 INCHES MINIMUM AND 0.610 INCHES MAXIMUM |
| DISTANCE FROM SERRATED PORTION TO END OF STUD THREAD | 0.205 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| OVERALL LENGTH | 1.142 INCHES MINIMUM AND 1.172 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF NUT THREAD UNJC STUD THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD 20 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.547 INCHES MINIMUM AND 0.577 INCHES MAXIMUM NUT THREAD 0.375 INCHES NOMINAL STUD THREAD |
| LOCKING FEATURE | RING, LOCK SERRATED |
| III SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 9117M41P04 |
Restrictions/Controls & Freight Information | NSN 5307-01-176-8435
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-176-8435
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | JF | SX:F-101 ENGINE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
