Product Details | SHOULDERED STUD
5307-01-050-9611 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 106C7149P21, 5307-01-050-9611, 01-050-9611, 5307010509611, 010509611
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 NOV 1977 | 01-050-9611 | 15946 ( STUD, SHOULDERED ) |

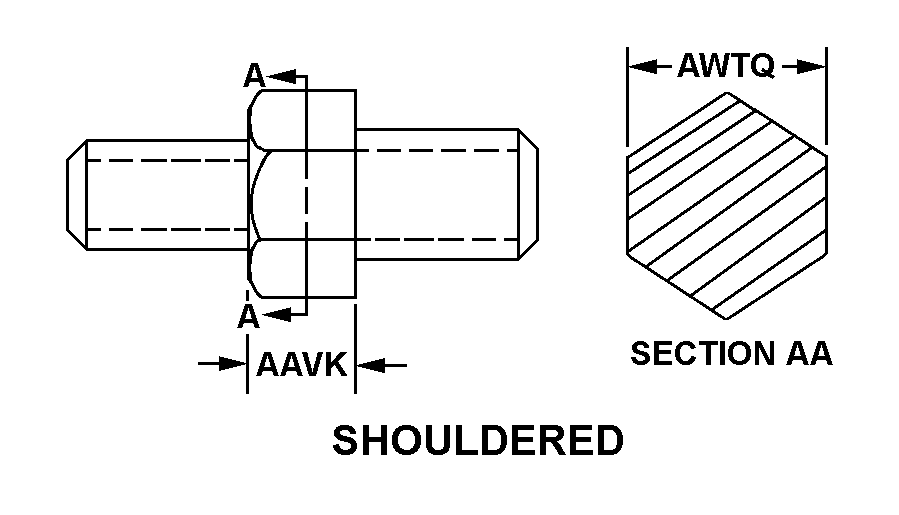

Drawings & Photos | NSN 5307-01-050-9611
Demand History | NSN 5307-01-050-9611
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-050-9611 | 2021-03-61 | 2 | United States |
| 5307-01-050-9611 | 2013-07-210 | 7 | United States |
| 5307-01-050-9611 | 2010-03-81 | 20 | DIBBS |
