NSN 5307-01-045-1680 16W3517, 16W351-7, 01-045-1680
Product Details | STEPPED STUD

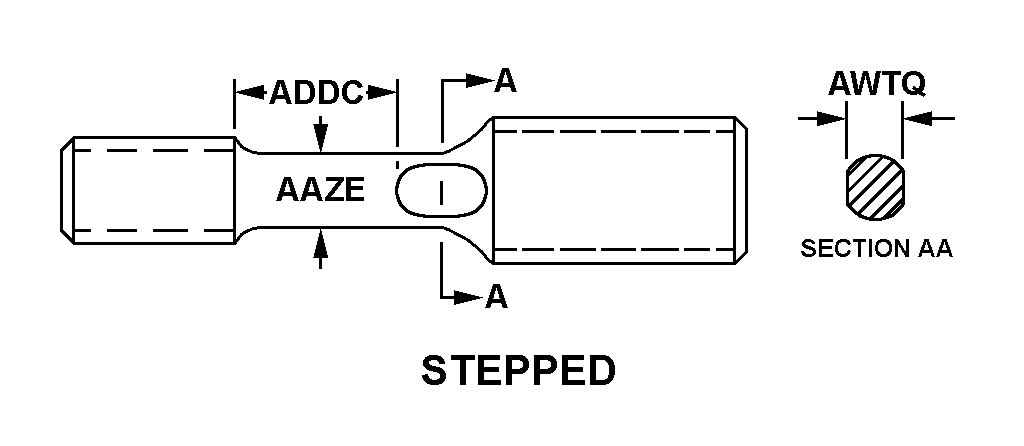

5307-01-045-1680 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.
Part Alternates: 16W3517, 16W351-7, 5307-01-045-1680, 01-045-1680, 5307010451680, 010451680
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JUL 1977 | 01-045-1680 | 15949 ( STUD, STEPPED ) |
Drawings & Photos | NSN 5307-01-045-1680
Cross Reference | NSN 5307-01-045-1680
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16W351-7 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-045-1680
Related Products | NSN 5307-01-045-1680
Technical Data | NSN 5307-01-045-1680
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 121 STEPPED |
| SHANK DIAMETER | 0.311 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SHANK LENGTH EXCLUDING WRENCHING PORTION | 0.454 INCHES MINIMUM AND 0.494 INCHES MAXIMUM |
| OVERALL LENGTH | 1.287 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF STUD THREAD |
| NOMINAL THREAD SIZE | 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16W351-7 |
