Product Details | SHOULDERED STUD
5307-00-946-5262 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 643062061101, 6430-62061-101, 5307-00-946-5262, 00-946-5262, 5307009465262, 009465262
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 1966 | 00-946-5262 | 15946 ( STUD, SHOULDERED ) |

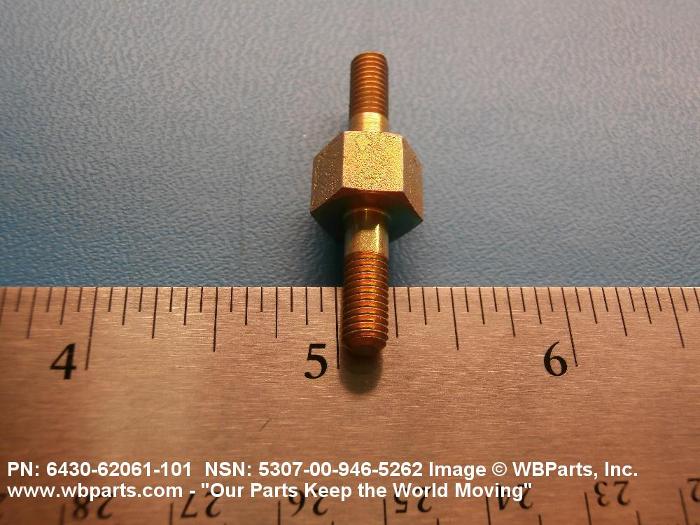

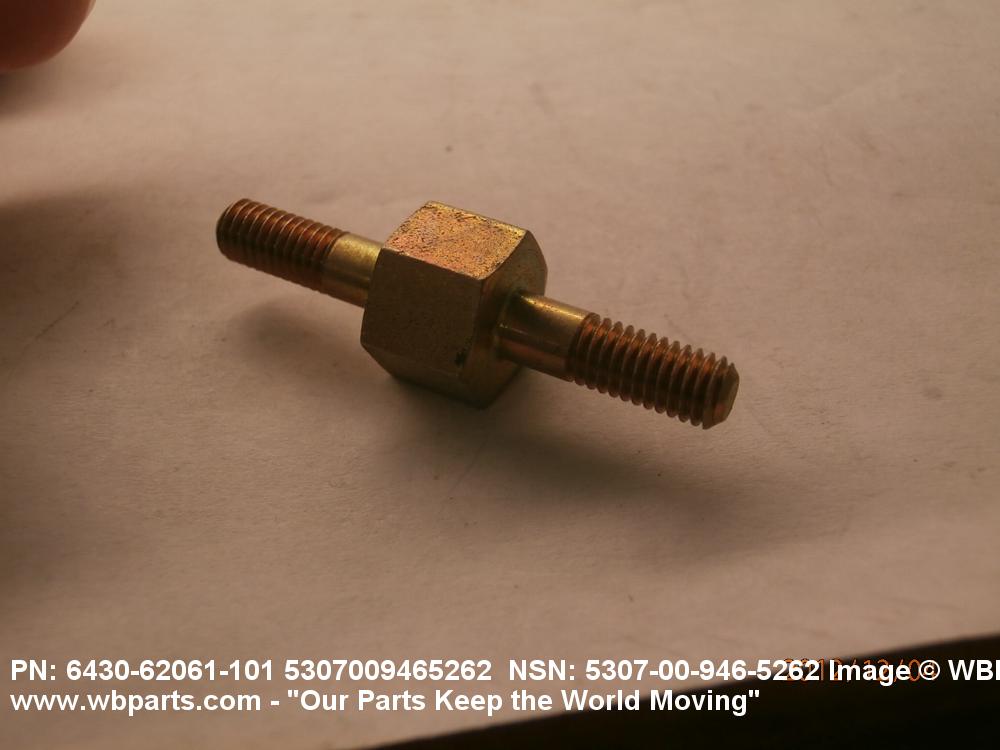

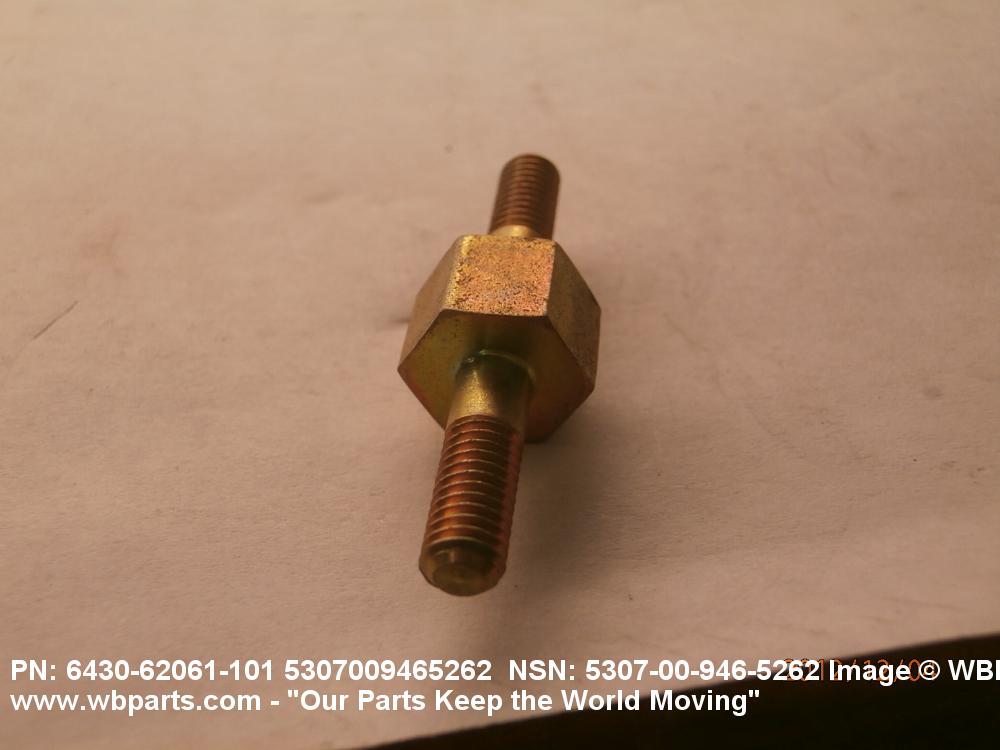

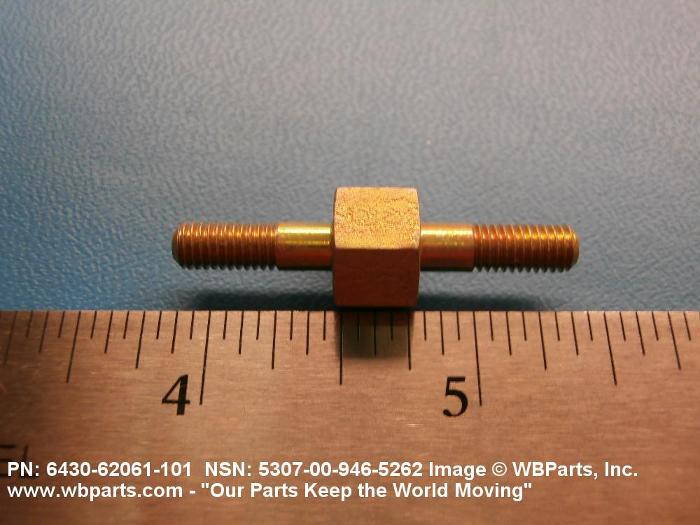

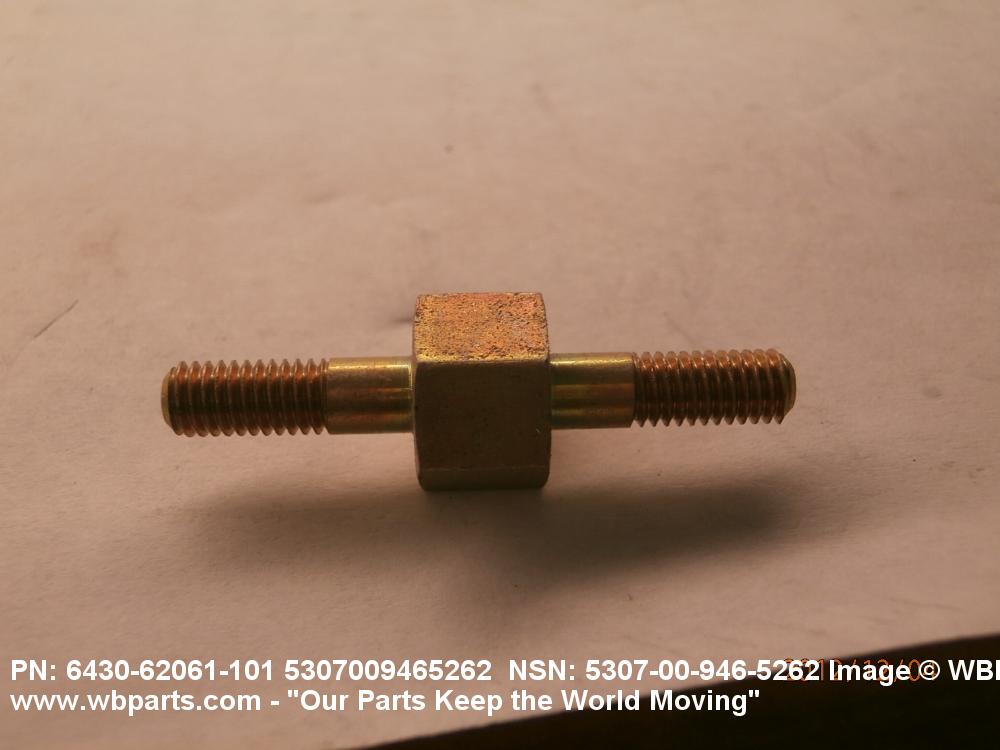

Drawings & Photos | NSN 5307-00-946-5262
Demand History | NSN 5307-00-946-5262
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 643062061101 | 2015-09-260 | 1 | Malaysia |
| 5307-00-946-5262 | 2015-09-259 | 50 | Malaysia |
| 643062061101 | 2012-11-332 | 2 | United States |
| 6430-62061-101 | 2012-06-160 | 1 | United States |
| 6430-62061-101 | 2012-04-93 | 1 | United States |
