Product Details | SHOULDERED STUD
5307-00-937-6980 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 2416291, 5307-00-937-6980, 00-937-6980, 5307009376980, 009376980
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 MAY 1972 | 00-937-6980 | 15946 ( STUD, SHOULDERED ) |

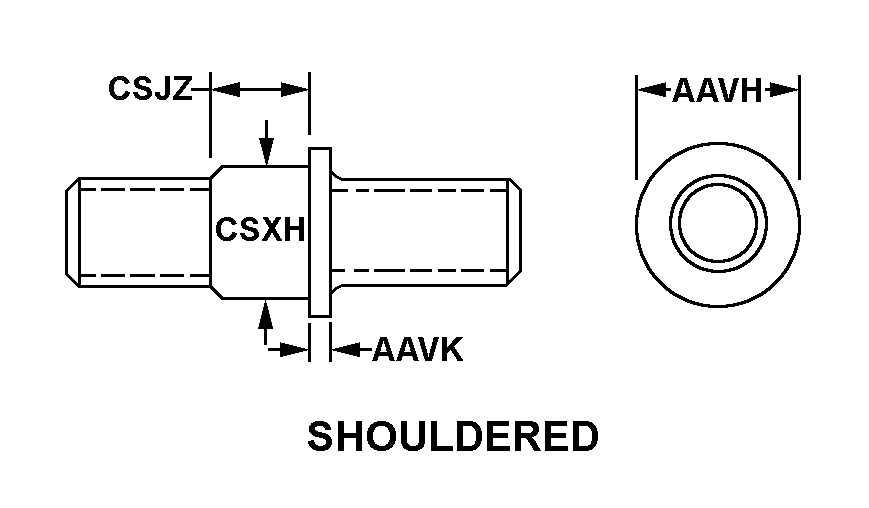

Drawings & Photos | NSN 5307-00-937-6980
Cross Reference | NSN 5307-00-937-6980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2416291 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-937-6980
Related Products | NSN 5307-00-937-6980
Technical Data | NSN 5307-00-937-6980
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 |
| STYLE DESIGNATOR | 97A SHOULDERED |
| SHOULDER DIAMETER | 1.000 INCHES NOMINAL |
| SHOULDER LENGTH | 0.125 INCHES NOMINAL |
| STUD END SHANK LENGTH | 0.813 INCHES NOMINAL |
| STUD END SHANK DIAMETER | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 2.188 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 24 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.750 INCHES MINIMUM NUT THREAD 0.500 INCHES NOMINAL STUD THREAD |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2416291 |
