Product Details | SHOULDERED STUD
5307-00-440-2121 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 105B1602P1, 105B1602-P1, 5307-00-440-2121, 00-440-2121, 5307004402121, 004402121
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-440-2121 | 15946 ( STUD, SHOULDERED ) |

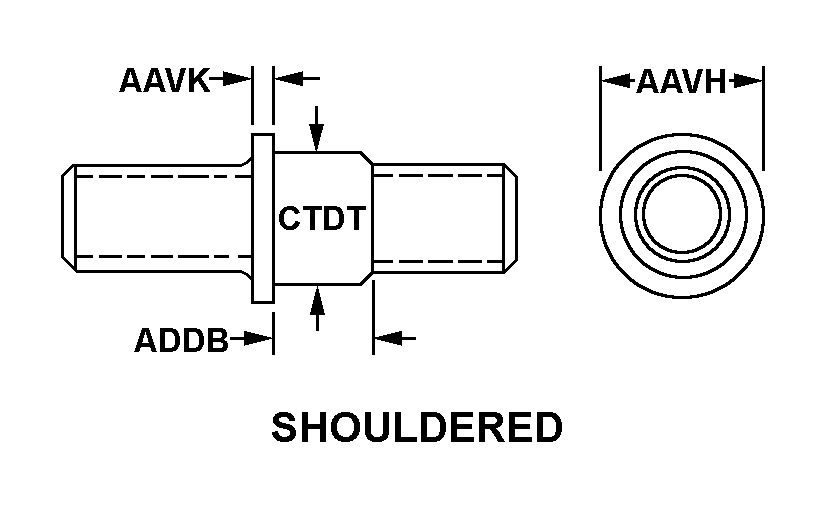

Drawings & Photos | NSN 5307-00-440-2121
Demand History | NSN 5307-00-440-2121
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-440-2121 | 2023-04-103 | 1 | DIBBS |
| 5307-00-440-2121 | 2023-04-95 | 1 | DIBBS |
| 5307-00-440-2121 | 2023-04-95 | 2 | DIBBS |
| 5307-00-440-2121 | 2022-11-320 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-440-2121
Related Products | NSN 5307-00-440-2121
Technical Data | NSN 5307-00-440-2121
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5637 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 97B SHOULDERED |
| SHOULDER DIAMETER | 0.430 INCHES MINIMUM AND 0.450 INCHES MAXIMUM |
| SHOULDER LENGTH | 1.062 INCHES NOMINAL |
| NUT END SHANK LENGTH | 0.190 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| NUT END SHANK DIAMETER | 0.190 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| OVERALL LENGTH | 1.830 INCHES MINIMUM AND 1.910 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM NUT THREAD 0.526 INCHES MINIMUM AND 0.560 INCHES MAXIMUM STUD THREAD |
| III DISTANCE FROM COTTER PIN HOLE CENTERLINE TO NUT END | 0.778 INCHES NOMINAL FIRST HOLE |
| III COTTER PIN HOLE DIAMETER | 0.246 INCHES MINIMUM AND 0.249 INCHES MAXIMUM FIRST HOLE |
| III SURFACE FINISH | 63.0 MICROINCHES SHANK |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 105B1602-P1 |
