NSN 5307-00-353-0491 20X151, 31782, 55TR
Product Details | SHOULDERED STUD
5307-00-353-0491 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: 20X151, 31782, 55TR, 5307-00-353-0491, 00-353-0491, 5307003530491, 003530491
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-353-0491 | 15946 ( STUD, SHOULDERED ) |

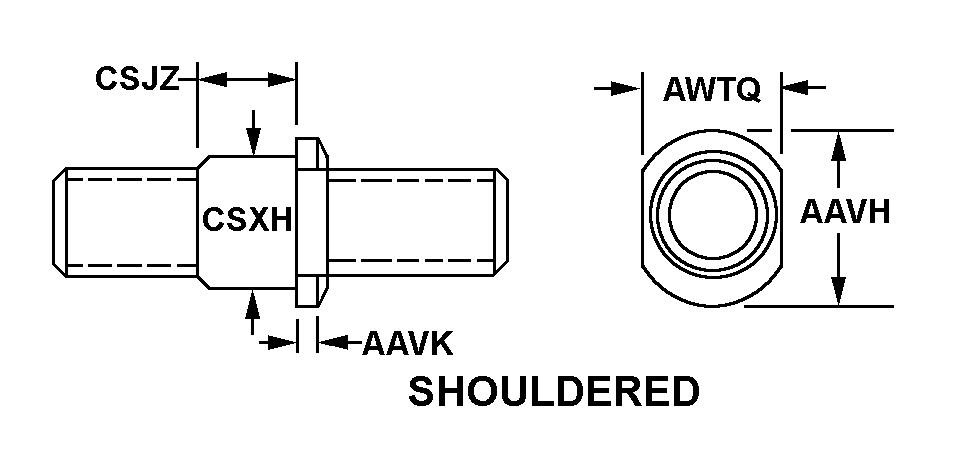

Drawings & Photos | NSN 5307-00-353-0491
Cross Reference | NSN 5307-00-353-0491
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-353-0491
Related Products | NSN 5307-00-353-0491
Technical Data | NSN 5307-00-353-0491
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4427 OR STEEL COMP 8640 |
| STYLE DESIGNATOR | 96A SHOULDERED |
| SHOULDER DIAMETER | 1.120 INCHES MINIMUM AND 1.210 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.190 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.910 INCHES MINIMUM AND 0.940 INCHES MAXIMUM |
| STUD END SHANK LENGTH | 0.990 INCHES NOMINAL |
| STUD END SHANK DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 3.910 INCHES MINIMUM AND 4.030 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UN NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 1.125 INCHES NUT THREAD 0.750 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 16 NUT THREAD 16 STUD THREAD |
| THREAD DIRECTION | LEFT-HAND NUT THREAD LEFT-HAND STUD THREAD |
| THREAD LENGTH | 1.220 INCHES NOMINAL NUT THREAD 0.440 INCHES NOMINAL STUD THREAD |
| MANUFACTURERS CODE | 28158 |
| DESIGN CONTROL REFERENCE | 20X151 |
