NSN 5307-00-064-6788 STD3020B11P, 00-064-6788, 000646788
Product Details | STEPPED STUD
5307-00-064-6788 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.
Part Alternates: STD3020B11P, 5307-00-064-6788, 00-064-6788, 5307000646788, 000646788
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-064-6788 | 15949 ( STUD, STEPPED ) |

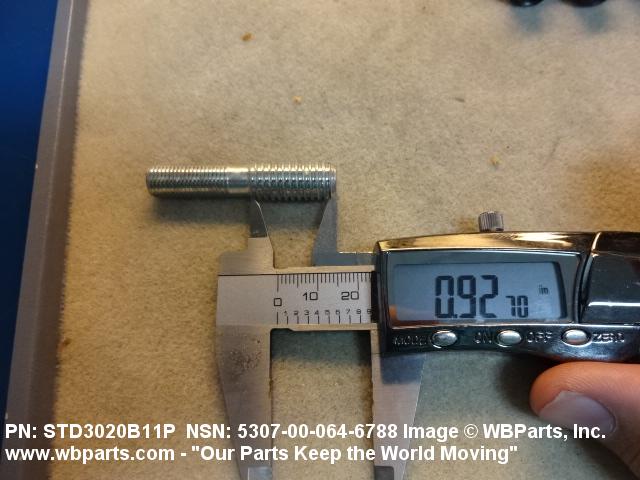

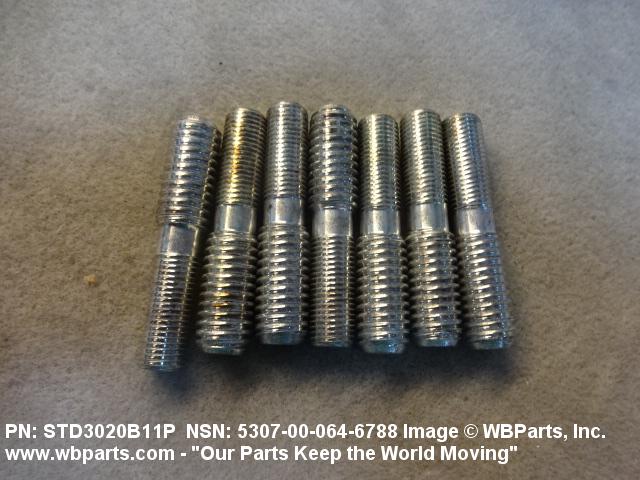

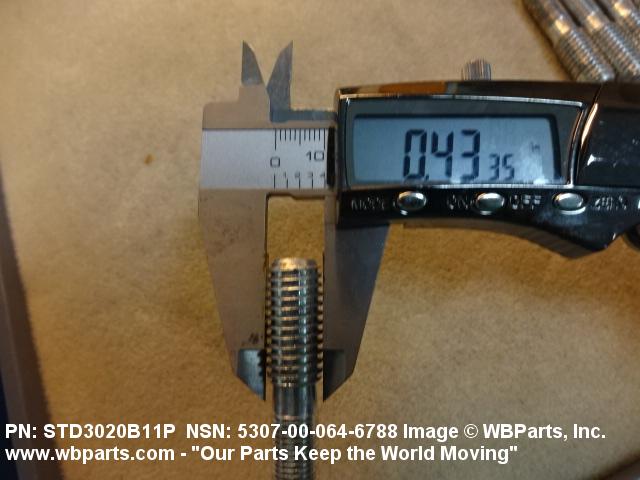

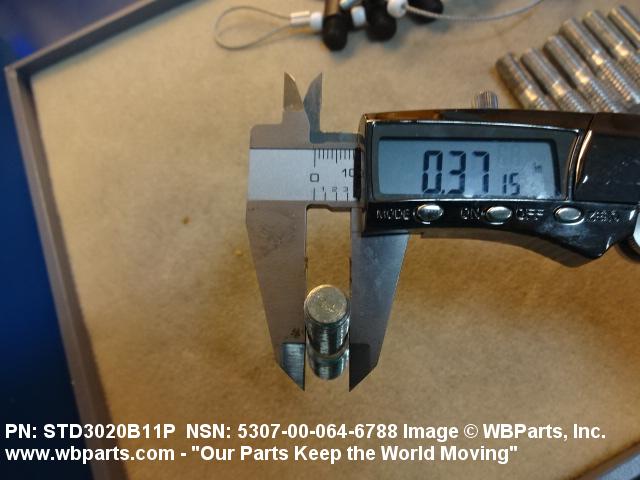

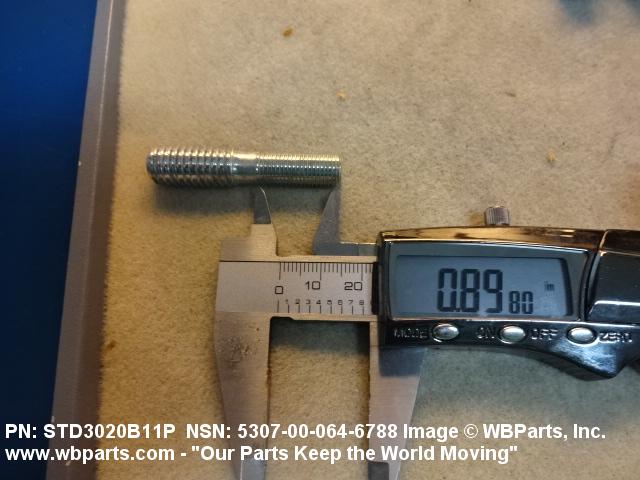

Drawings & Photos | NSN 5307-00-064-6788
Demand History | NSN 5307-00-064-6788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-064-6788 | 2019-02-32 | 7 | United States |
| 5307-00-064-6788 | 2018-12-354 | 7 | DIBBS |
| 5307-00-064-6788 | 2018-12-343 | 7 | DIBBS |
Cross Reference | NSN 5307-00-064-6788
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| STD3020B11P | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-064-6788
Related Products | NSN 5307-00-064-6788
Technical Data | NSN 5307-00-064-6788
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6382 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS-2400-1 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 120 STEPPED |

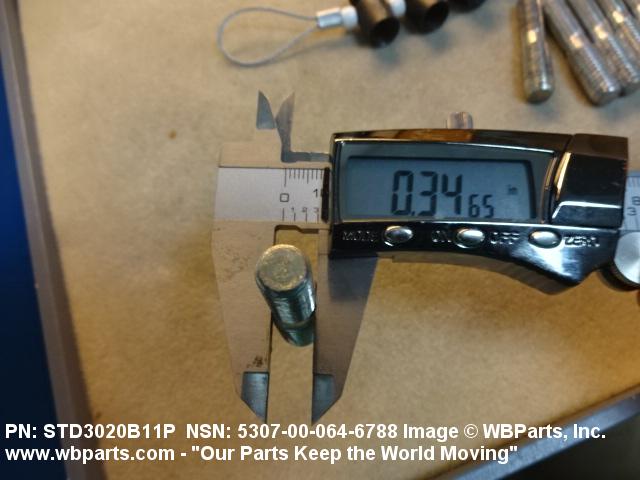

| SHANK DIAMETER | 0.342 INCHES MINIMUM AND 0.352 INCHES MAXIMUM |

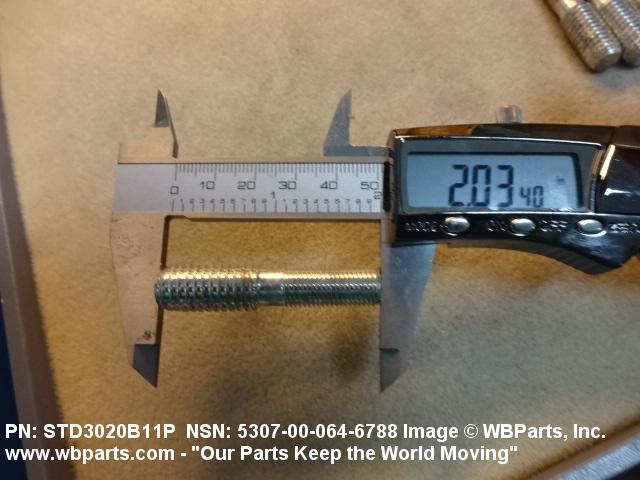

| OVERALL LENGTH | 2.030 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD 0.438 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 14 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.292 INCHES MINIMUM AND 0.303 INCHES MAXIMUM NUT THREAD 0.090 INCHES NOMINAL STUD THREAD |
| III HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
