NSN 5305-00-068-0506 MS907266, MS90726-6, A10930

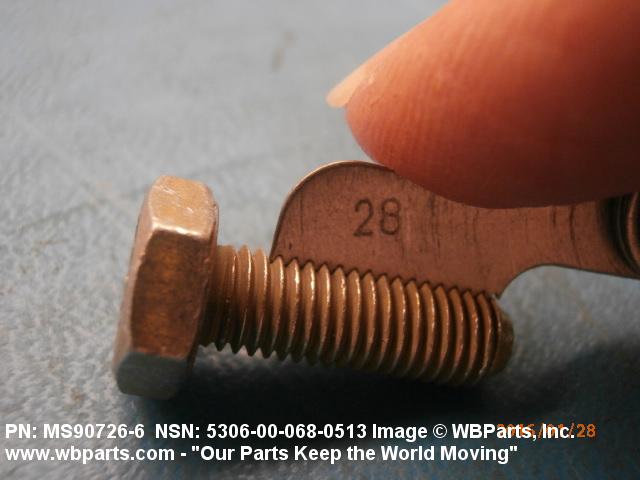

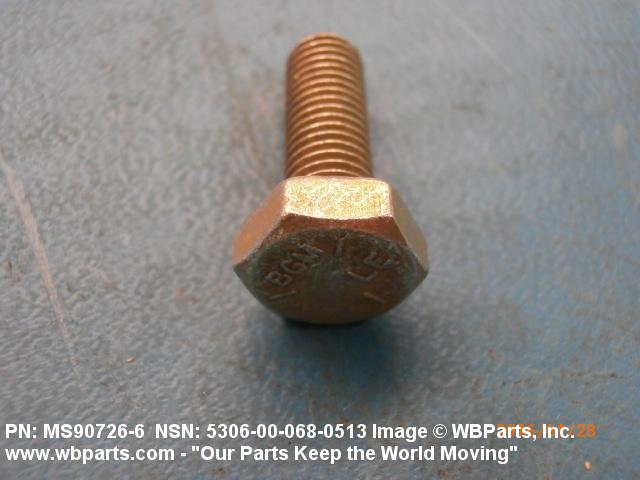

Product Details | HEXAGON HEAD CAP SCREW

5305-00-068-0506 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS907266, MS90726-6, A10930, BACB30BL46, BACB30BL4-6, L64984, L6498-4, 0702105, 1145, 114-5, 251552, 2C412, 3260166000, 326-0166-000, 3436532, 47496, 0003436532, 53050680506, 5305-068-0506 , 700086, 70008-6, 8011005, 801-1005, 5305-00-068-0506, 00-068-0506, 5305000680506, 000680506

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-068-0506	18257 ( SCREW, CAP, HEXAGON HEAD )

Drawings & Photos | NSN 5305-00-068-0506

Part Number	Request Date	QTY	Origin
MS907266	2019-03-60	2840	US
MS907266	2018-01-30	20	United States
MS907266	2018-01-30	20	United States
5305-00-068-0506	2015-12-356	500	DIBBS
5305-00-068-0506	2015-10-287	500	DIBBS
MS907266	2015-01-12	500	US
MS907266	2013-04-106	33	United Kingdom
MS907266	2012-09-262	86	US
MS907266	2012-04-93	182	US
MS907266	2012-03-69	500	CA
MS907266	2011-05-136	250	US
MS907266	2010-03-71	100	US
MS907266	2009-08-233	64	US
MS907266	2009-08-233	64	US
MS907266	2009-08-233	64	US
1145	2008-03-66	4	US

Cross Reference | NSN 5305-00-068-0506

Part Number	Cage Code	Manufacturer
0003436532	F0727	R.V.I. RENAULT VEHICULES INDUSTRIELS SA DPT BERLIET
0003436532	F6573	RENAULT TRUCKS DEFENSE
0702105	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
114-5	10988	CNH INDUSTRIAL AMERICA LLC
251552	H0001	DAF TRUCKS N.V.
2C412	12603	CLARK EQUIPMENT CO
2C412	F0851	GENEMAT STE GLE DE MATERIELS D'ENTREPRISES SA
326-0166-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
3436532	F0727	R.V.I. RENAULT VEHICULES INDUSTRIELS SA DPT BERLIET
3436532	F6573	RENAULT TRUCKS DEFENSE
47496	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
5305-068-0506	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305000680506	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
70008-6	95097	LITTLE GIANT CRANE AND SHOVEL INC
801-1005	44940	CUMMINS POWER GENERATION INC.
A10930	U4574	MANROY ENGINEERING LTD
BACB30BL4-6	82918	THE BOEING COMPANY DBA BOEING
L6498-4	46717	PETTIBONE LLC
MS90726-6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS90726-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
