Product Details | HEXAGON HEAD CAP SCREW

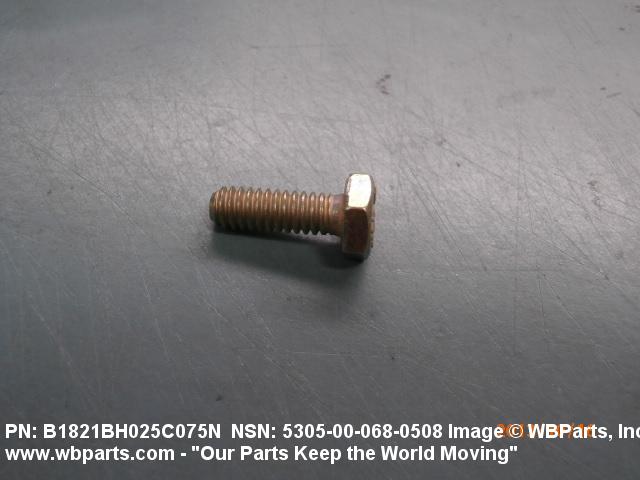

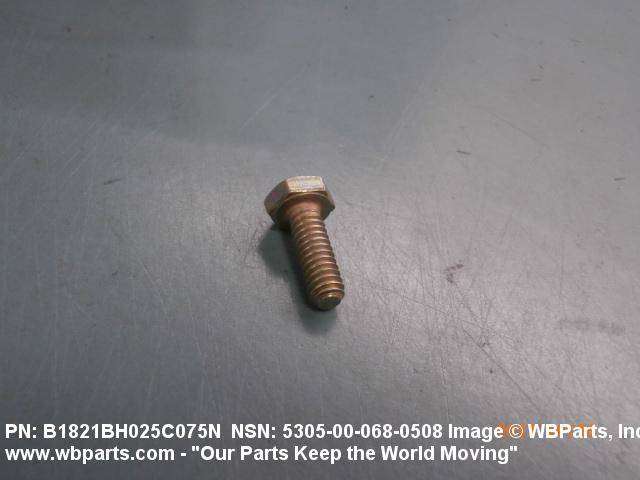

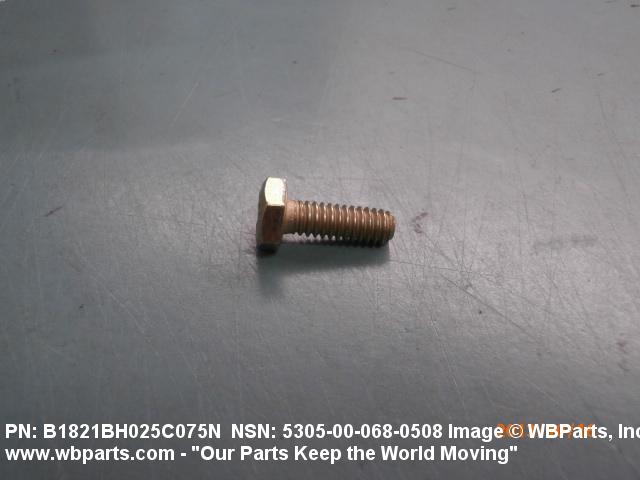

5305-00-068-0508 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS907286, MS90728-6, M19-20873 PC NO 124, M1920873PCNO124, M29-00288 PC NO 94, M2900288PCNO94, AES01C250750AW9A91 , B18.24 , B1821BH025C075N, B1824, S210NA38CAD14354BNCG1, 0008006992, 000-8006-992, 5305PL0655495, 60194, 73032, 8000533, 800-0533, 803007, 803-007, 803595927606, 803-5959276-06, 8035959276PC6, 803-5959276PC6, 903007, 903-007, 91247A540, 920073, 0321333, 03-2-1333, 10082360 , 108940, 15A00404-0000 ITEM NO 83, 15A004040000ITEMNO83, 15A00406-0000 I, 15A004060000I, 18257003, 18257-003, 1C817P63, 2109HX1, 22489R1, 26412, 26-412, 303842 , 30640025, 306-40025, 4183076, 418307-6, 443603, 50P010052011, 50P01005-2011, 5305-00-068-0508, 00-068-0508, 5305000680508 , 000680508, 018945075

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-068-0508	18257 ( SCREW, CAP, HEXAGON HEAD )

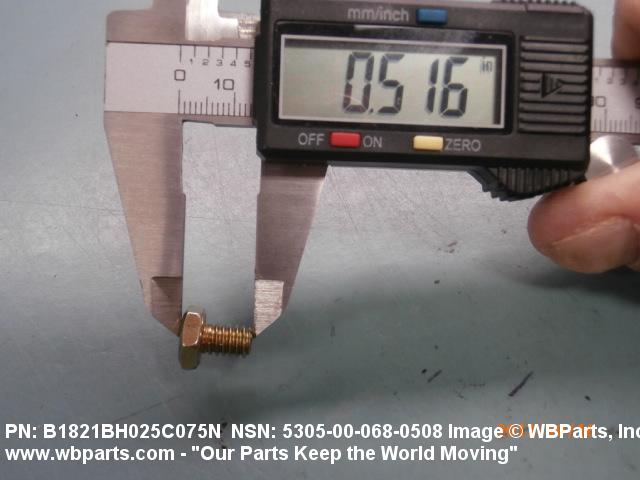

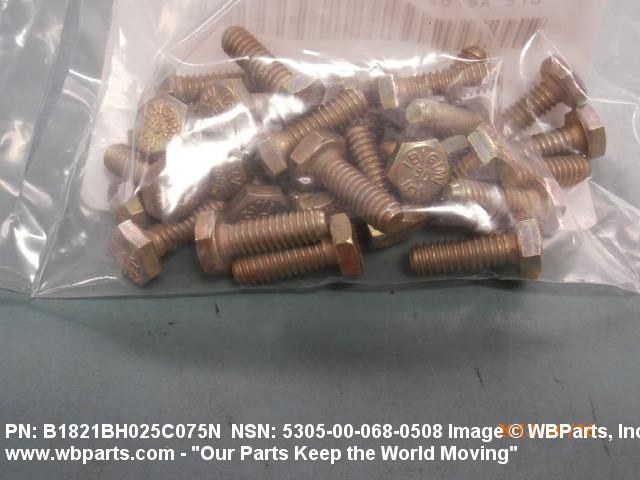

Drawings & Photos | NSN 5305-00-068-0508

Part Number	Request Date	QTY	Origin
B1821BH025C075N	2024-04-121	228	United States
5305-00-068-0508	2023-09-263	64	Australia
5305-00-068-0508	2023-07-206	500	United States
B1821BH025C075N	2023-07-206	500	United States
73032	2023-07-192	2	Germany
B1821BH025C075N	2023-04-111	480	United States
B1821BH025C075N	2023-03-86	400	United States
B1821BH025C075N	2022-02-34	16	United States
5305-00-068-0508	2022-01-20	428	US
5305-00-068-0508	2021-11-308	52	US
B1821BH025C075N	2020-09-261	734	United States
5305-00-068-0508	2020-06-182	124	MANUAL
5305-00-068-0508	2019-11-323	100	US
5305-00-068-0508	2019-10-303	1492	DIBBS
B1821BH025C075N	2019-08-217	1	us
B1821BH025C075N	2019-07-203	14172	BR
B1821BH025C075N	2019-04-115	312	United States
5305-00-068-0508	2018-12-362	2	DIBBS-KIT
B1821BH025C075N	2018-12-362	2
60194	2018-03-68	1	United States
5305-00-068-0508	2018-01-01	5827	DIBBS
B1821BH025C075N	2017-11-319	13
B1821BH025C075N	2017-10-286	140	United States
5305-00-068-0508	2017-06-179	22	United States
B1821BH025C075N	2016-11-308	100	us
B1821BH025C075N	2016-11-307	100	us
MS90728-6	2016-05-137	4
MS90728-6	2016-05-137	4
5305-00-068-0508	2015-12-351	100	US
B1821BH025C075N	2015-09-258	90	US
AES01C250750AW9A91	2015-08-230	120	United States
5305-00-068-0508	2015-06-160	2	US
5305-00-068-0508	2015-05-137	22010	DIBBS
5305-00-068-0508	2014-04-91	28	Turkey
MS907286	2014-02-59	138	US
B1821BH025C075N	2013-10-282	30	United States
5305-00-068-0508	2013-07-199	100	US
5305-00-068-0508	2013-07-199	250	US
5305-00-068-0508	2013-07-199	500	US
5305-00-068-0508	2013-07-199	1000	US
5305-00-068-0508	2013-07-199	2500	US
5305-00-068-0508	2013-07-199	5000	US
B1821BH025C075N	2013-03-67	460	US
B1821BH025C075N	2012-06-159	1380	US
B1821BH025C075N	2012-05-151	3375	US
MS907286	2012-03-73	84	United States
5305-00-068-0508	2011-07-202	450	us
B1821BH025C075N	2011-07-202	100	us
B1821BH025C075N	2011-07-196	104	US
B1821BH025C075N	2011-05-126	1	United States
MS90728-6	2011-04-95	48	United States
MS90728-6	2011-04-95	128	United States
5305-00-068-0508	2011-03-63	15000	United States
MS907286	2011-02-45	275	United States
B1821BH025C075N	2010-11-308	15000	US
B1821BH025C075N	2010-10-277	30	US
5305-00-068-0508	2010-09-245	11900	DIBBS
B1821BH025C075N	2010-07-195	4	US
B1821BH025C075N	2010-07-193	500	United States
B1821BH025C075N	2010-06-165	256	United States
5305-00-068-0508	2010-03-84	13000	DIBBS
B1821BH025C075N	2010-03-82	50	US
B1821BH025C075N	2010-03-81	16	United States
B1821BH025C075N	2010-02-46	3432	US
B1821BH025C075N	2010-02-40	3500	US
5305-00-068-0508	2010-01-27	240	US
5305-00-068-0508	2009-10-296	14600	DIBBS
5305-00-068-0508	2009-09-267	14500	DIBBS
B1821BH025C075N	2009-09-254	8500	us
5305-00-068-0508	2009-07-183	400	US
5305-00-068-0508	2009-03-86	9500	DIBBS
B1821BH025C075N	2008-10-305	300	us
5305-00-068-0508	2008-08-233	9771	DIBBS
B1821BH025C075N	2008-06-178	100	US
5305-00-068-0508	2008-06-163	20000	Turkey
MS907286	2008-02-42	2000	US

Cross Reference | NSN 5305-00-068-0508

Part Number	Cage Code	Manufacturer
000-8006-992	94756	BOEING COMPANY, THE DBA BOEING
018945075	5N978	THERMA-TECH ENGINEERING INC DBA A. R. LINTERN DIVISION
03-2-1333	15652	DYNA SYSTEMS INC
108940	40608	MILLER ELECTRIC MFG CO
15A00404-0000 ITEM NO 83	01425	LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND
15A00406-0000 I	01425	LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND
18257-003	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
18257-003	D2638	EME ELEKTRO-METALL EXPORT GMBH
1C817P63	07482	GENERAL ELECTRIC COMPANY DBA GE
2109HX1	45152	OSHKOSH CORPORATION
2109HX1	75Q65	OSHKOSH DEFENSE, LLC
22489R1	55820	HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS
22489R1	66195	SOLAR TURBINES INCORPORATED
26-412	10988	CNH INDUSTRIAL AMERICA LLC
303842	H0G87	WIBA ZEVENAAR B.V.
306-40025	9F512	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION
418307-6	96214	RAYTHEON COMPANY DBA RAYTHEON
443603	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
50P01005-2011	01425	LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND
5305000680508	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0655495	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
60194	40608	MILLER ELECTRIC MFG CO
73032	4C8A9	THERMASYS CORPORATION DBA GENERAL THERMO DYNAMICS
73032	63079	THERMASYS CORPORATION DBA GENERAL THERMO DYNAMICS DIV
800-0533	44940	CUMMINS POWER GENERATION INC.
803-007	08081	OHIO AUTO PARTS CO
803-007	72741	DORMAN PRODUCTS, INC. DBA MOTORMITE DIVISION
803-5959276-06	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
803-5959276PC6	53711	NAVAL SEA SYSTEMS COMMAND
903-007	72741	DORMAN PRODUCTS, INC. DBA MOTORMITE DIVISION
91247A540	39428	MCMASTER-CARR SUPPLY COMPANY
920073	07524	DOVER FLUID MANAGEMENT, INC. DBA BLACKMER
AES01C250750AW9A91	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B18.24	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B1821BH025C075N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
G1921	01417	GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS
G1921BH025C075N	01417	GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS
M19-20873 PC NO 124	9F512	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION
M29-00288 PC NO 94	9F512	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION
MS90728-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
S210NA38CAD14354BNCG1	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-068-0508

Compare

Related Products | NSN 5305-00-068-0508

5305-00-068-0509, 5305-00-068-0510, 5305-00-068-0511, 5305-00-068-0512, 5305-00-068-0515

Technical Data | NSN 5305-00-068-0508

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

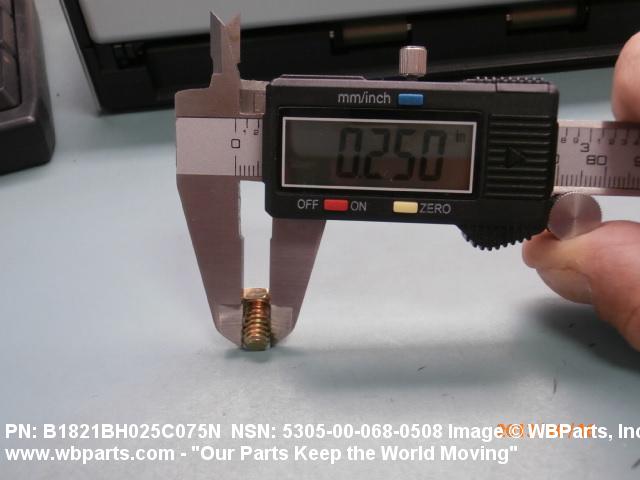

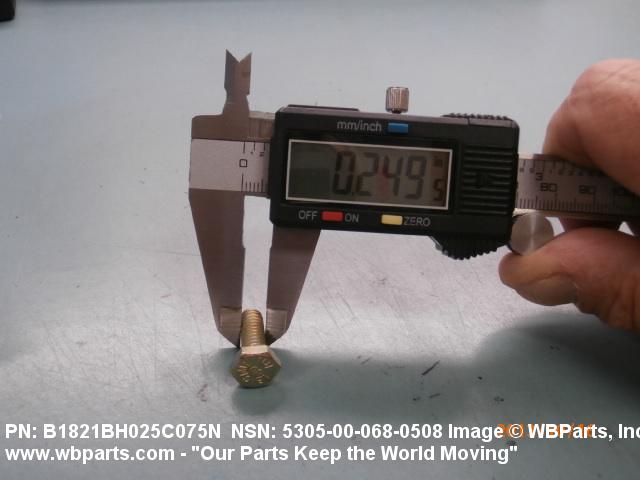

NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

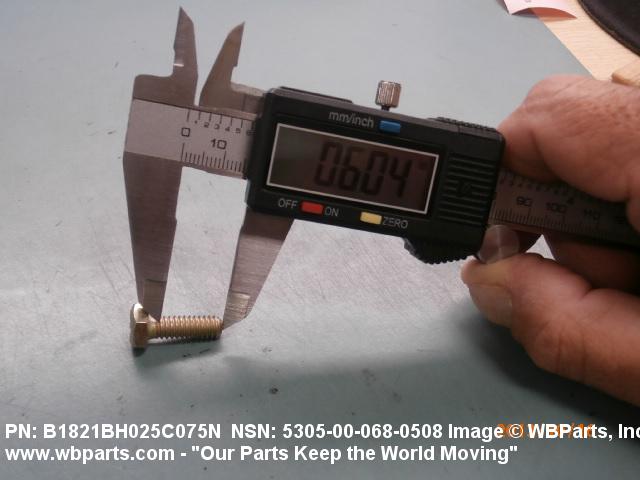

THREAD LENGTH	0.594 INCHES MINIMUM AND 0.750 INCHES MAXIMUM

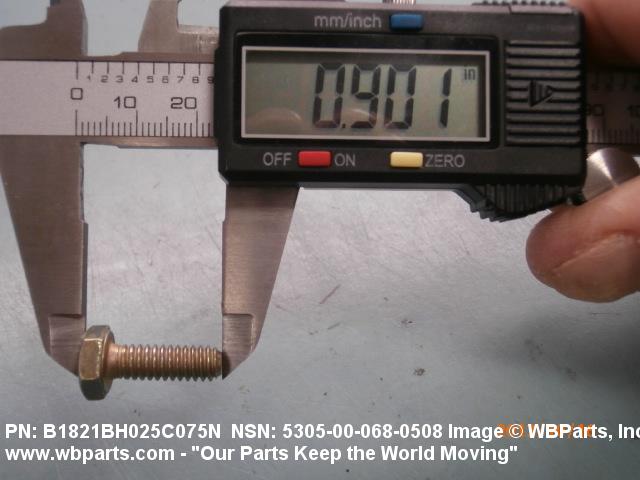

FASTENER LENGTH	0.719 INCHES MINIMUM AND 0.750 INCHES MAXIMUM
MATERIAL	STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1023 OR STEEL COMP 1524 OR STEEL COMP 1025 OR STEEL COMP 1026 OR STEEL COMP 1527 OR STEEL COMP 1029 OR STEEL COMP 1030 OR STEEL COMP 1033 OR STEEL COMP 1034 OR STEEL COMP 1035 OR STEEL COMP 1536 OR STEEL COMP 1037 OR STEEL COMP 1038 OR STEEL COMP 1039 OR STEEL COMP 1040 OR STEEL COMP 1541 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	150000 POUNDS PER SQUARE INCH

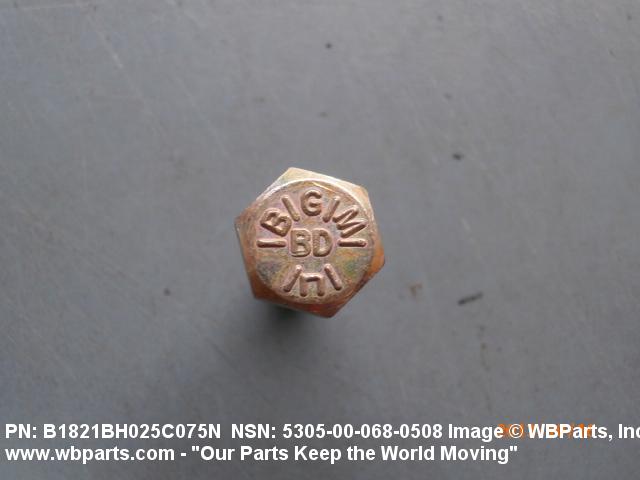

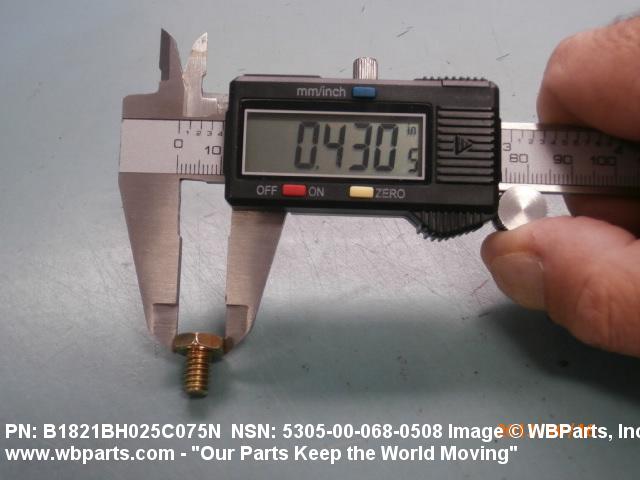

HEAD STYLE	C1 HEXAGON

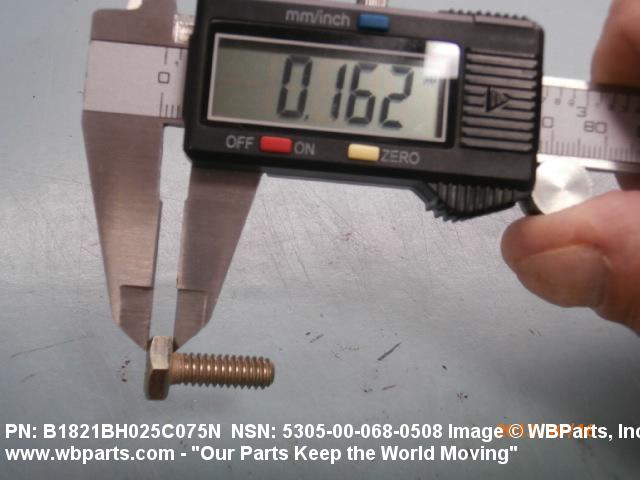

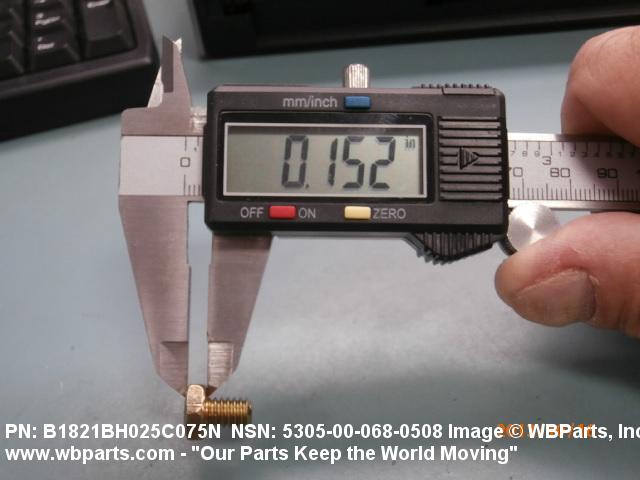

HEAD HEIGHT	0.150 INCHES MINIMUM AND 0.163 INCHES MAXIMUM
