NSN 5305-00-068-0509 MS3529110, MS35291-10, MS9072510

Product Details | HEXAGON HEAD CAP SCREW

5305-00-068-0509 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS3529110, MS35291-10, MS9072510, MS90725-10, MS9072810, MS90728-10, S105C, SC1434, B0405, B1821AH025C125N, B1821BH025C125N, 5305PL0655912, 5593328 , 02101392, 070994, 07-0994, 10082361 , 1027597, 1052138, 10521-38 , 121913, 1473342PC79, 17C616 , 1825015, 1825-015 , 197012, 197-012, 1C6885P22, 201988, 22492R1, 22523K1, 22523R1 , 251390, 2DD115, 3176210A089, 3176210-A-089 , 403817 , 41UT41034PC74, 41UT4103-4PC74, 456720119309 , 522C502006, 6300757-10, 66345AX, 7114560, 71145-60 , 7325 , 8001008, 800-1008, 8220630125, 82-2063-0125, 860012, 860-012, 9090060, 909-0060 , 91236A544, 91247A624, 9137 , 9433298, 5305-00-068-0509, 00-068-0509, 5305000680510 , 5305000680509, 000680509, 630075710

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-068-0509	18257 ( SCREW, CAP, HEXAGON HEAD )

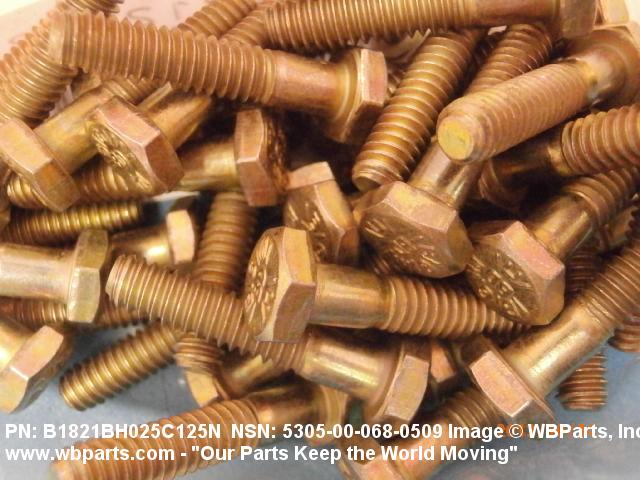

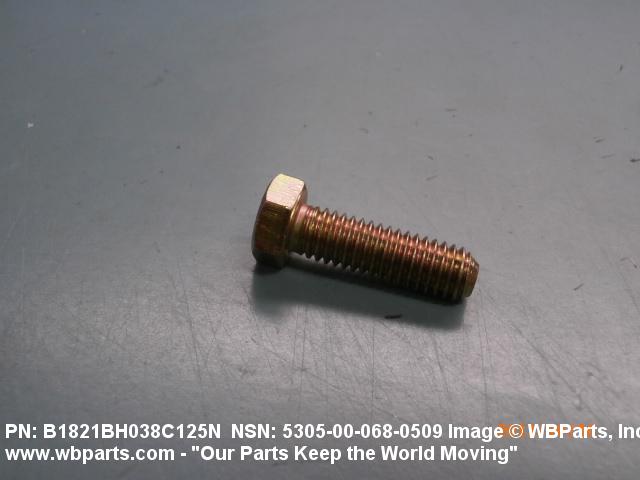

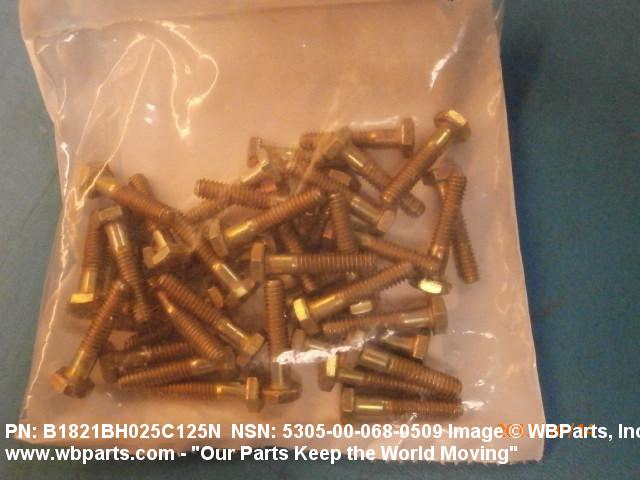

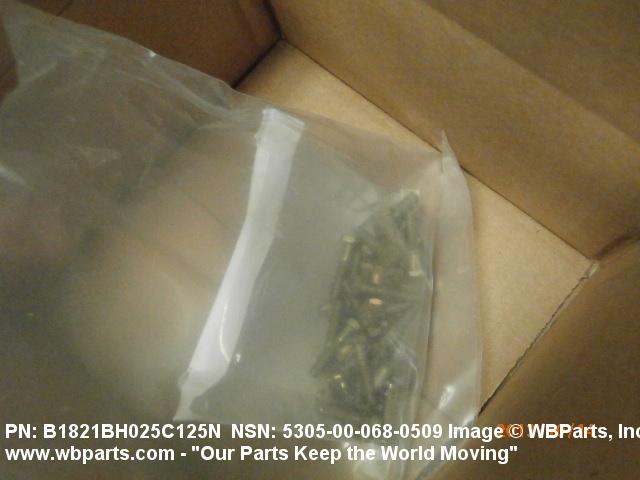

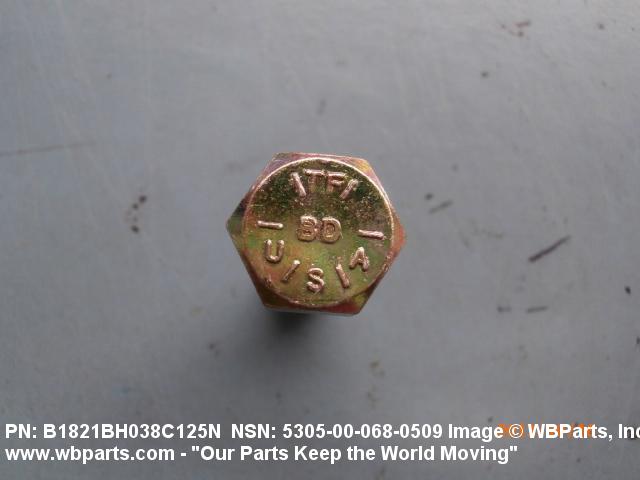

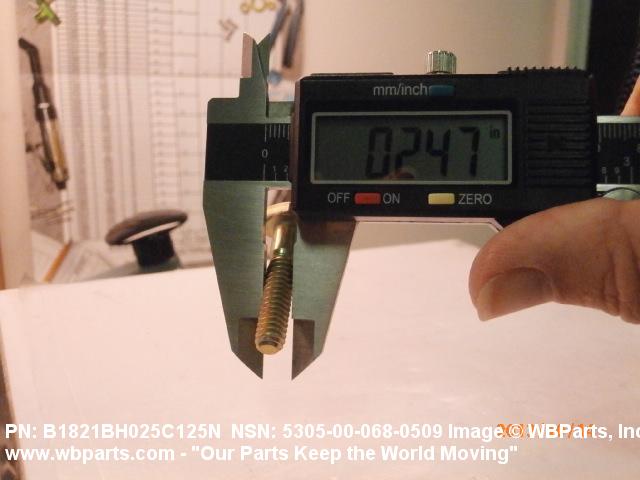

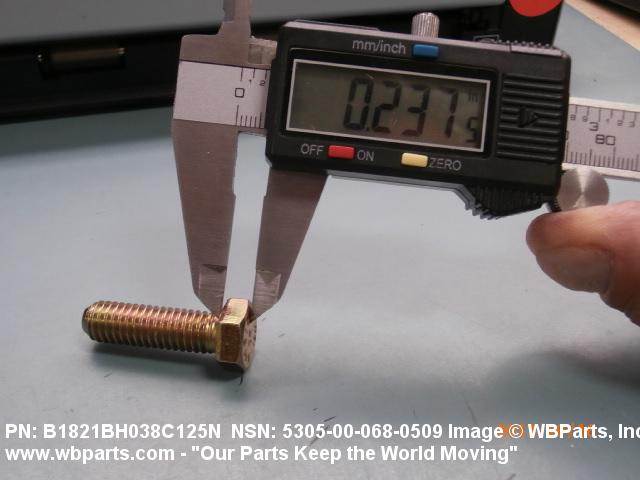

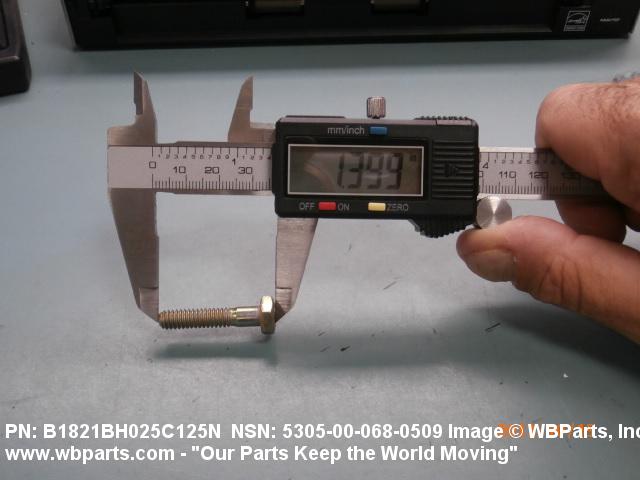

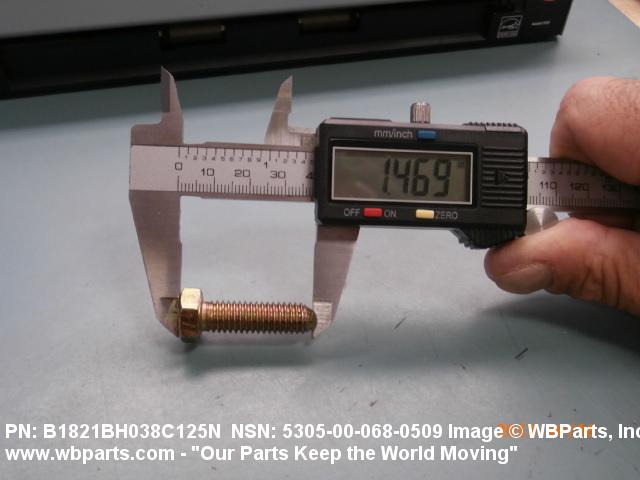

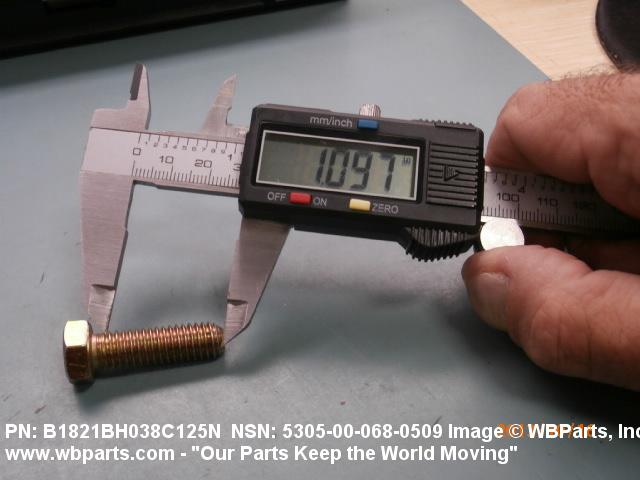

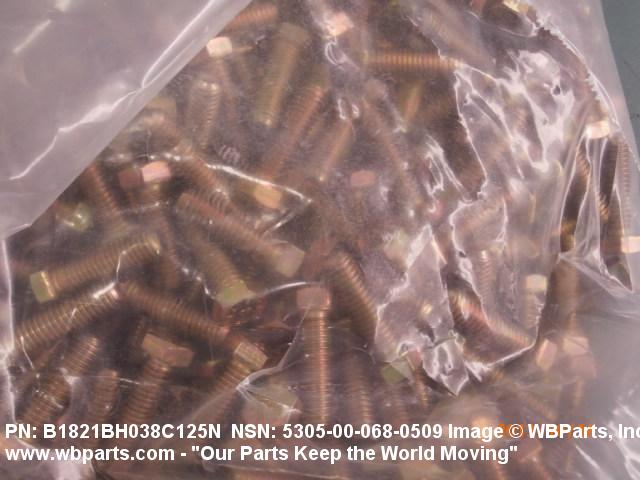

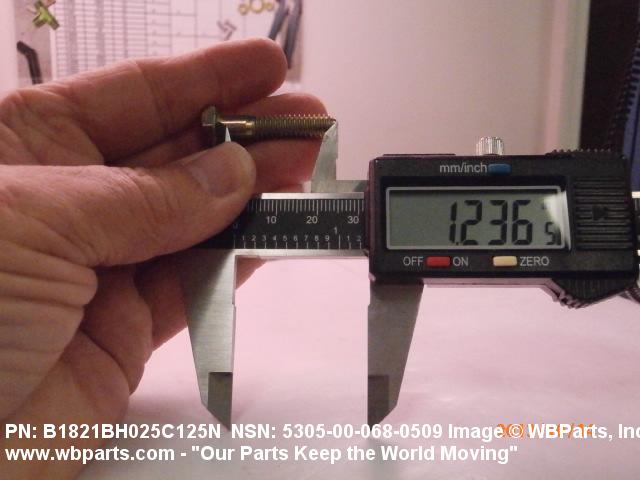

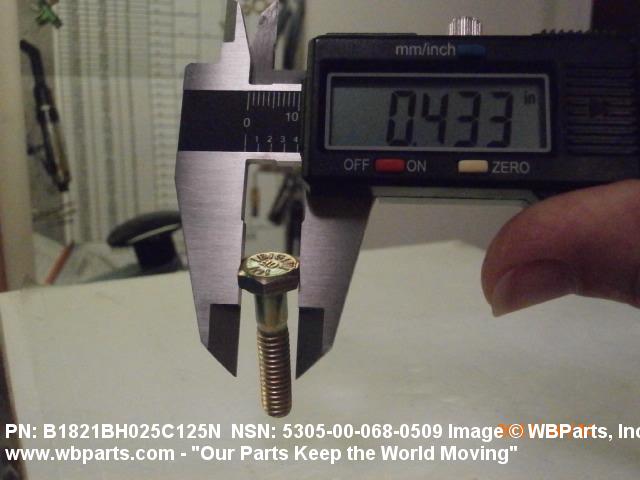

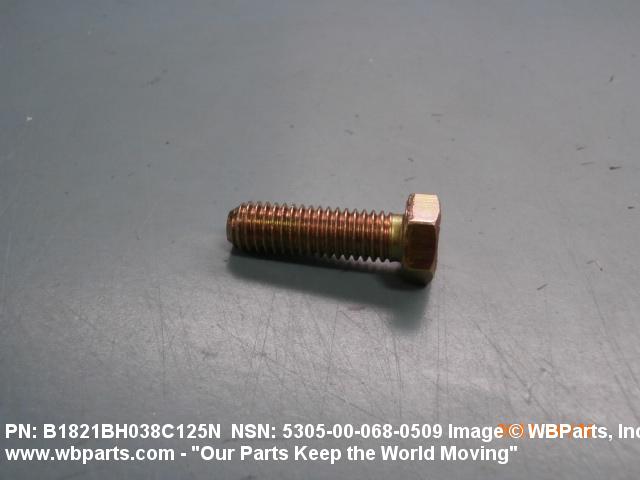

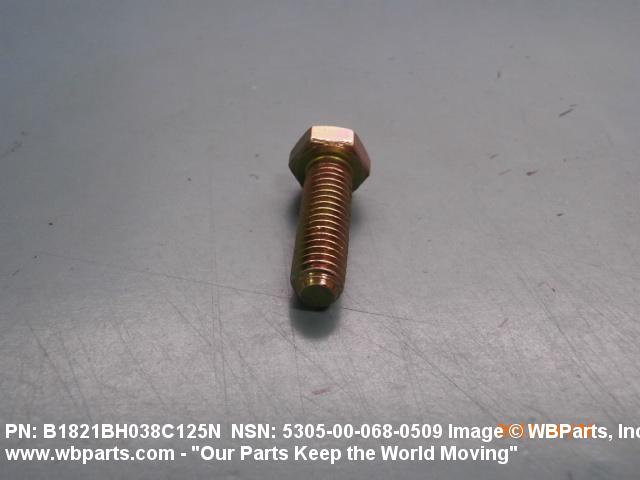

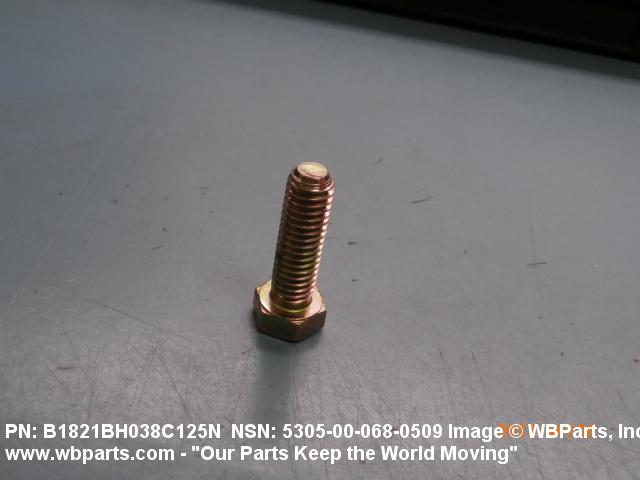

Drawings & Photos | NSN 5305-00-068-0509

Part Number	Request Date	QTY	Origin
5305-00-068-0509	2024-07-183	2000	United States
5305-00-068-0510	2024-07-183	4500	United States
5305-00-068-0509	2024-03-73	10626	DIBBS
5305-00-068-0509	2024-03-67	100	EE
5305-00-068-0509	2024-03-65	10626	DIBBS
5305-00-068-0509	2023-10-298	22500	US
MS9072810	2021-04-111	1430	United States
7325	2020-08-217	400	United States
5305-00-068-0510	2020-01-29	4	United States
522C502006	2020-01-08	4	United States
5305-00-068-0510	2019-05-140	275	US
5305-00-068-0509	2019-01-07	1	DIBBS-KIT
B1821BH025C125N	2019-01-07	1
B1821BH025C125N	2017-11-319	2
5305-00-068-0510	2017-08-213	24	US
5305-00-068-0509	2017-06-165	4	us
5305-00-068-0509	2015-03-71	1400	United States
5305-00-068-0509	2014-08-224	100	US
B1821BH025C125N	2014-03-73	200	us
B1821BH025C125N	2014-03-71	235	United States
B1821BH025C125N	2013-10-282	12	United States
B1821BH025C125N	2013-10-280	40	United States
MS9072510	2013-07-212	20	US
5305-00-068-0509	2013-07-183	2	US
B1821BH025C125N	2012-10-296	774	US
B1821BH025C125N	2012-08-223	3030	US
B1821AH025C125N	2012-04-121	500	US
MS3529110	2012-04-93	35	US
MS9072810	2012-03-73	162	United States
5305-00-068-0509	2011-11-334	65	US
5305-00-068-0510	2011-10-286	250	US
5305-00-068-0510	2011-09-272	100	us
B1821BH025C125N	2011-07-202	475	us
MS9072510	2011-07-202	15000	US
5305-00-068-0509	2011-05-126	1	United States
5305-00-068-0510	2011-05-126	8	United States
MS90728-10	2011-04-95	16	United States
5305-00-068-0509	2011-03-88	8	US
5305-00-068-0510	2011-03-63	140000	United States
MS9072510	2010-12-356	1	Italy
5305-00-068-0510	2010-11-308	3500	US
5305-00-068-0510	2010-11-308	300	US
5305-00-068-0510	2010-10-292	60	us
5305-00-068-0510	2010-09-271	1000	US
B1821BH025C125N	2010-08-230	4	United States
MS9072510	2010-08-214	2	United States
5305-00-068-0509	2010-02-53	410017	DIBBS
5305-00-068-0510	2010-01-27	48	US
B1821BH025C125N	2009-12-338	1272	US
5305-00-068-0509	2009-11-317	36	Italy
5305-00-068-0509	2009-11-317	108	Italy
B1821BH025C125N	2009-10-300	1000	US
5305-00-068-0510	2009-09-253	135	US
5305-00-068-0510	2009-06-160	16	US
5305-00-068-0510	2009-05-131	575	US
B1821BH025C125N	2009-05-128	1000	US
5305-00-068-0510	2009-05-126	20000	United States
5305-00-068-0510	2008-04-119	200	United States
5305-00-068-0509	2008-04-92	10	US
5305-00-068-0510	2008-03-67	374	United States
5305-00-068-0510	2007-02-58	1976	United States

Cross Reference | NSN 5305-00-068-0509

Part Number	Cage Code	Manufacturer
02101392	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
07-0994	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
121913	80195	E D ETNYRE & CO DBA EDETNYRE
1473342PC79	53711	NAVAL SEA SYSTEMS COMMAND
197-012	72741	DORMAN PRODUCTS, INC. DBA MOTORMITE DIVISION
197012	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
1C6885P22	07482	GENERAL ELECTRIC COMPANY DBA GE
201988	24234	AUSTIN-WESTRAN LLC
22492R1	55820	HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS
22492R1	66195	SOLAR TURBINES INCORPORATED
251390	H0001	DAF TRUCKS N.V.
2DD115	45152	OSHKOSH CORPORATION
2DD115	75Q65	OSHKOSH DEFENSE, LLC
41UT4103-4PC74	81340	UNITED STATES COAST GUARD
5305-071-2241	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305000712241	A00AM	E.C.A ETABLISSEMENT CENTRAL DESAPPROVISIONNEMENTS DES FORCES
5305PL0725561	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
6300757-10	53711	NAVAL SEA SYSTEMS COMMAND
800-1008	44940	CUMMINS POWER GENERATION INC.
802206	02280	AMERICAN HOIST AND DERRICK CO
802206	49185	TEREX AMERICAN CRANE CORP
82-2063-0125	04664	PIERCE MANUFACTURING, INC.
860-012	72741	DORMAN PRODUCTS, INC. DBA MOTORMITE DIVISION
91236A544	39428	MCMASTER-CARR SUPPLY COMPANY
9433298	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
B0405	25567	GORMAN-RUPP COMPANY, THE DBA MANSFIELD DIVISION
B1821AH025C125N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
B1821BH025C125N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
MS35291-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90725-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90728-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
S105C	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
SC1434	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-068-0509

Compare

Related Products | NSN 5305-00-068-0509

5305-00-068-0510, 5305-00-068-0511, 5305-00-068-0512, 5305-00-068-0515, 5305-00-068-0516

Technical Data | NSN 5305-00-068-0509

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

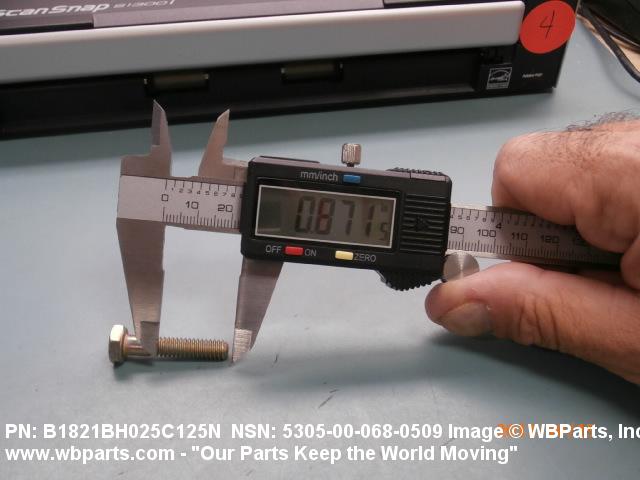

THREAD LENGTH	0.750 INCHES MINIMUM AND 0.938 INCHES MAXIMUM
FASTENER LENGTH	1.250 INCHES NOMINAL
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	SAE J429,GRADE8 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A354,GRADE BD ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	33.0 ROCKWELL C MINIMUM AND 39.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	150000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	120000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

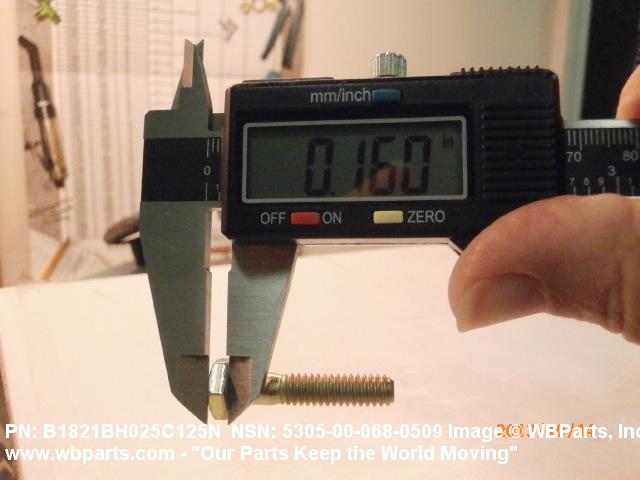

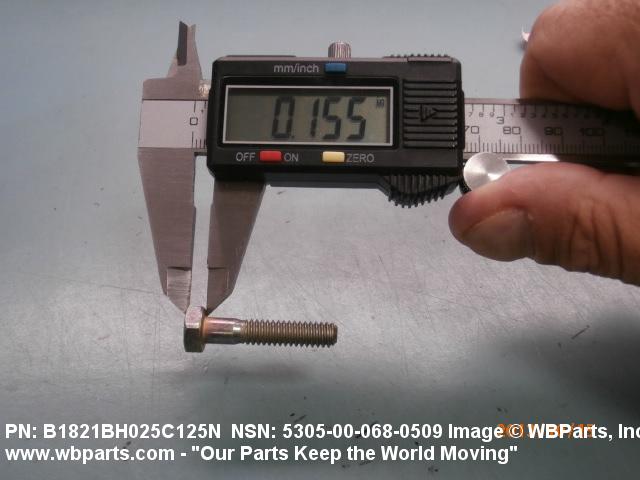

HEAD HEIGHT	0.150 INCHES MINIMUM AND 0.163 INCHES MAXIMUM

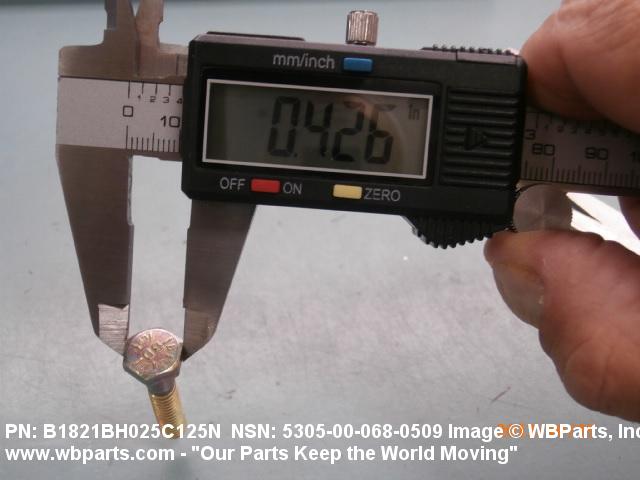

WIDTH BETWEEN FLATS	0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5305-00-068-0509

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-068-0509

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	I	Construction Equipment
Weapons Systems/End Item or Homogeneous Group	IN	Armored Combat Earthmover (ACE), M9
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
