NSN 5305-00-068-0511 MS3529110, MS35291-10 , MS3529562

Product Details | HEXAGON HEAD CAP SCREW

5305-00-068-0511 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS3529110, MS35291-10 , MS3529562, MS35295-62, MS9072510, MS90725-10 , MS9072562, MS90725-62, MS9072810, MS90728-10 , MS9072862, MS90728-62, S105C , SC1434, SC2169, SC2-169, SF10914 REV B PC23, SF10914REVBPC23, SK500013, SK-5000-13, B0405 , B1821AH025C125N, B1821BH025C125N , B1821BH038C125N, E103972 FIND NO 57, E103972FINDNO57, WG103806, 609004-056, 9C00209, 9C-00209, 53050712241, 5305-071-2241 , 5305PL0725561, 6300757-10 , 7617530, 8001008, 800-1008 , 802206 , 8220630125, 82-2063-0125 , 860012, 860-012 , 8775035, 87750-35, 91236A544 , 91236A626, 9415840, 9433298, 02101392 , 070994, 07-0994 , 0826V042, 10082362, 121913 , 122-5277668 ITEM 45, 1225277668ITEM45, 12Z2443, 12Z24-43, 1473342PC79 , 17C620, 180124, 186622, 197012 , 197-012 , 1C6885P22 , 201988, 22492R1 , 23036269062, 23036269-062, 251390 , 2DD115, 2DD63, 418 757, 418757, 41UT41034PC74, 41UT4103-4PC74 , 508-5562718 ITE, 5085562718ITE, 522C502007, 5305-00-068-0511, 00-068-0511, 5305000712241, 5305000680511, 000680511, 609004056, 630075710, 980394136

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-068-0511	18257 ( SCREW, CAP, HEXAGON HEAD )

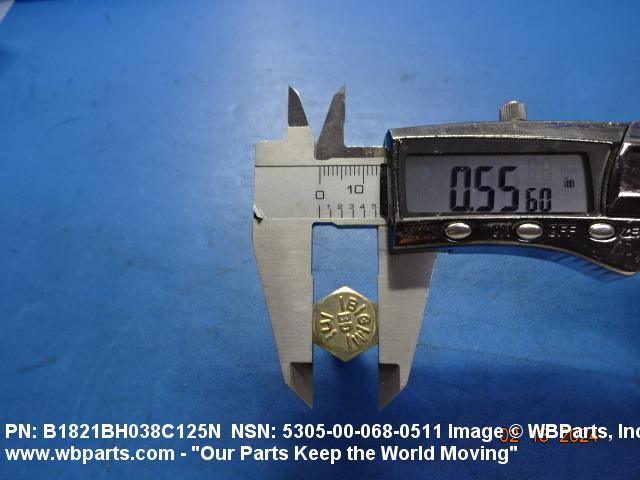

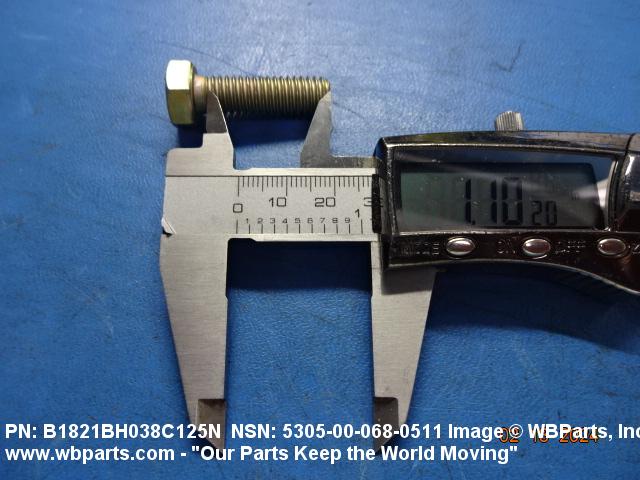

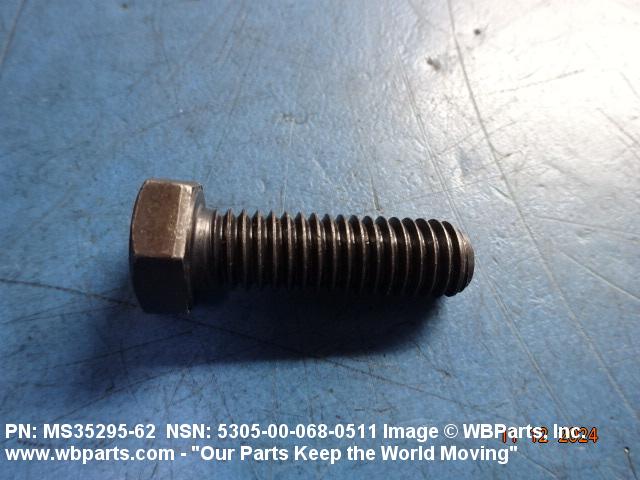

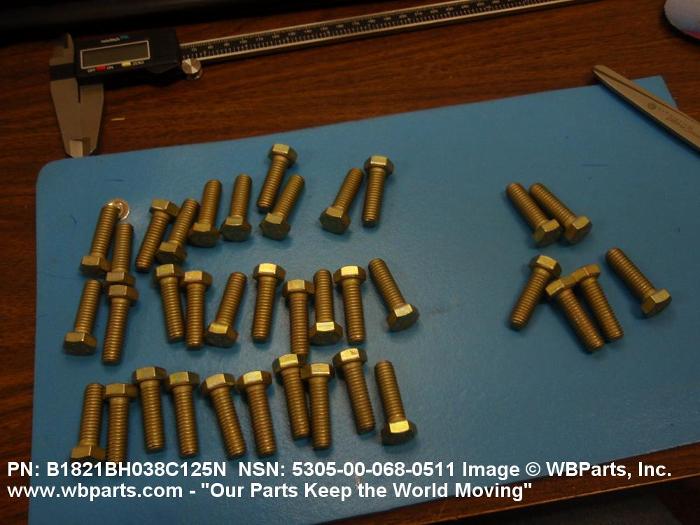

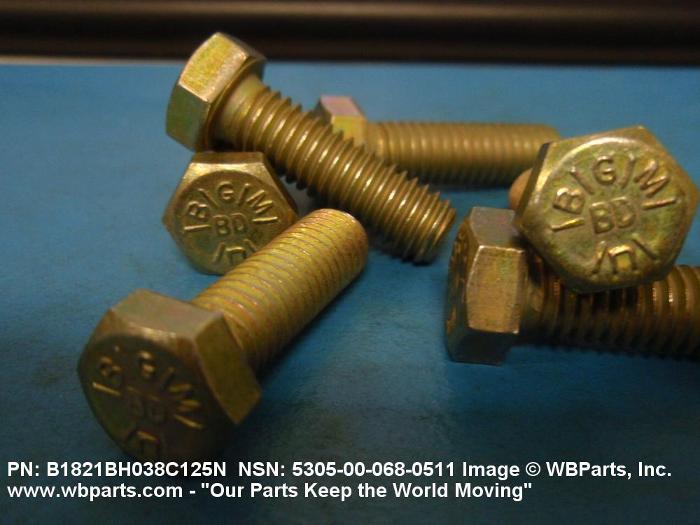

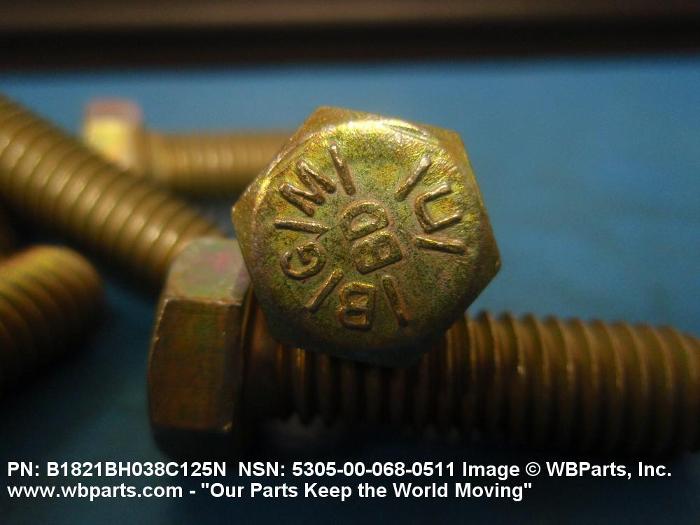

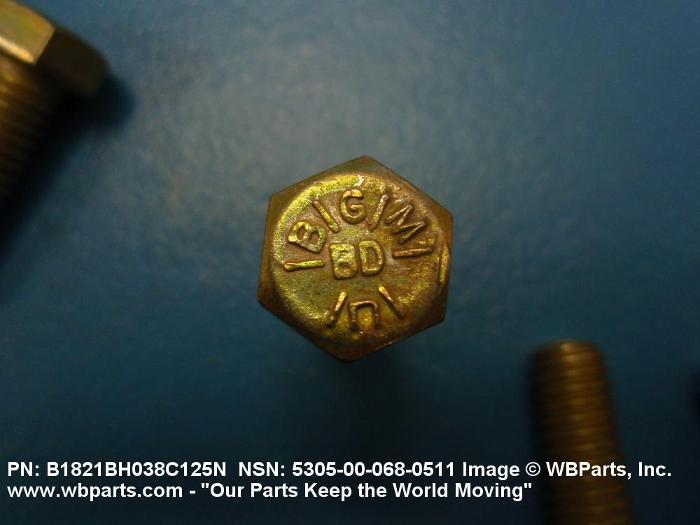

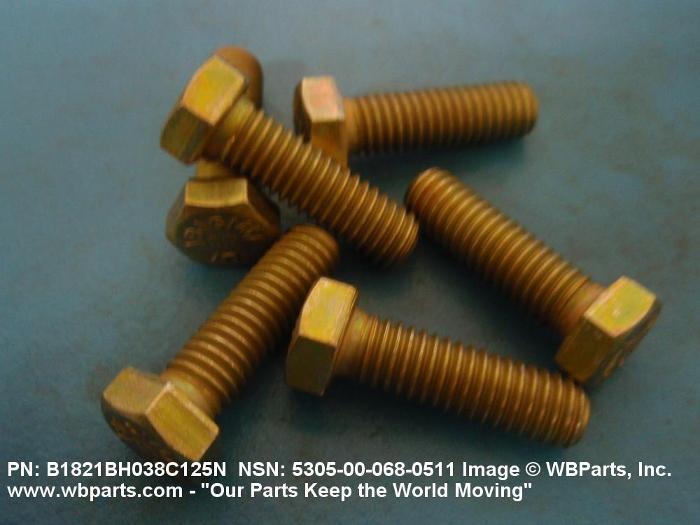

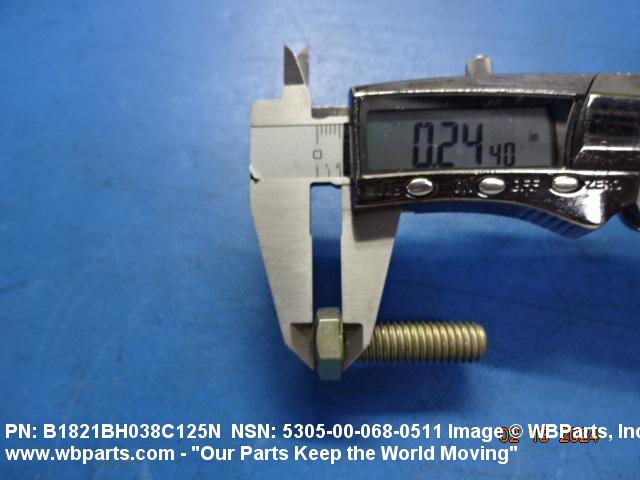

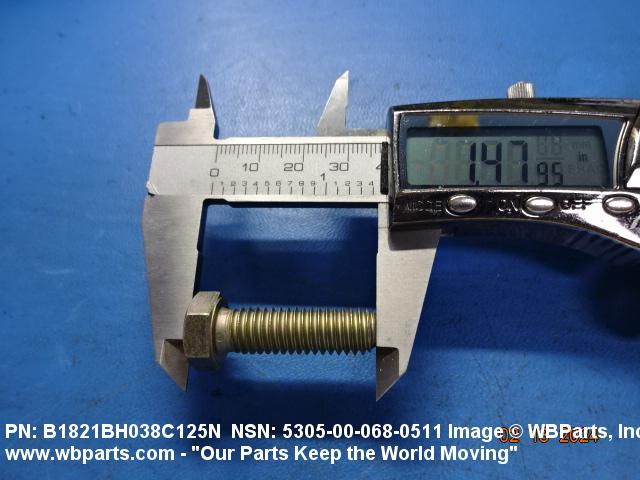

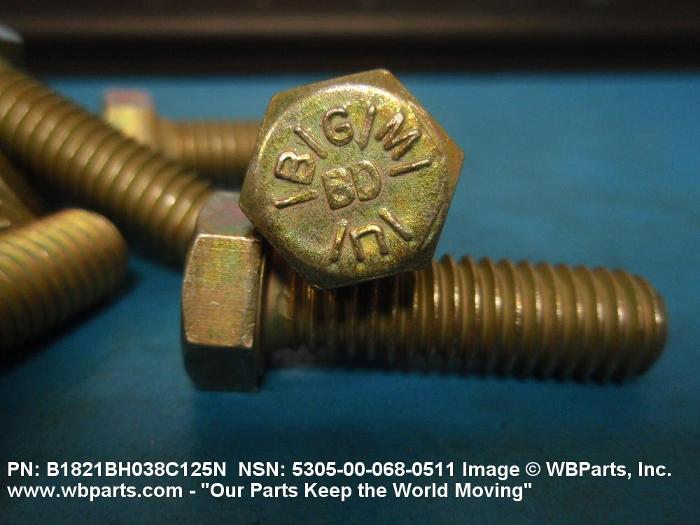

Drawings & Photos | NSN 5305-00-068-0511

Part Number	Request Date	QTY	Origin
5305-00-068-0511	2024-11-310	37	United States
MS3529562	2024-10-305	37	United States
5305-00-068-0511	2024-09-262	4000	DIBBS
5305-00-068-0511	2024-09-254	4000	DIBBS
5305-00-068-0511	2024-09-249	4000	DIBBS
5305-00-068-0511	2024-08-241	4000	DIBBS
5305-00-068-0511	2024-08-239	317	DIBBS
5305-00-068-0511	2024-08-236	3137	DIBBS
5305-00-068-0511	2024-08-231	317	DIBBS
5305-00-068-0511	2024-08-228	3137	DIBBS
5305-00-068-0511	2024-08-225	3137	DIBBS
5305-00-068-0511	2024-08-217	3137	DIBBS
5305-00-068-0511	2024-07-183	1500	United States
5305-00-068-0511	2024-05-126	2500	DIBBS
5305-00-068-0511	2024-04-119	1250	United States
5305-00-068-0511	2024-04-116	2500	DIBBS
MS9072562	2024-04-115	1920	US
5305-00-068-0511	2024-03-87	60	DIBBS
5305-00-068-0511	2024-03-68	150	EE
5305-00-068-0511	2024-01-30	9	United States
5305-00-068-0511	2023-12-354	2000	DIBBS
5305-00-068-0511	2023-12-354	2500	DIBBS
5305-00-068-0511	2023-12-346	2000	DIBBS
5305-00-068-0511	2023-12-346	2500	DIBBS
5305-00-068-0511	2023-05-134	5	DIBBS
MS9072562	2023-04-109	8	United States
B1821BH038C125N	2022-04-97	200	United States
MS9072810	2021-04-111	1430	United States
MS9072862	2021-04-111	520	United States
B1821BH038C125N	2021-03-76	16	US
5305-00-068-0511	2020-10-278	1500	DIBBS
5305-00-068-0511	2020-03-62	1	DIBBS-RFPs
5305-00-068-0511	2020-01-14	6	United States
MS9072862	2019-12-360	50	US
5305-00-068-0511	2019-12-347	80	US
5305-00-068-0511	2019-10-281	2260	DIBBS
MS9072562	2019-08-232	56	United States
5305-00-068-0511	2019-08-220	6	US
B1821BH038C125N	2019-06-162	1000	United States
5305-00-068-0511	2019-02-52	1484	DIBBS
MS9072562	2019-02-38	12	United States
B1821BH025C125N	2019-01-07	1
5305-00-068-0511	2018-09-259	1484	DIBBS
MS9072562	2018-03-79	320	United States
5305-00-068-0511	2018-03-74	5	US
B1821BH025C125N	2017-11-319	2
B1821BH038C125N	2017-11-306	20
5305-00-068-0511	2017-08-213	6	US
MS9072562	2017-06-177	50	United States
MS90725-62	2016-05-137	2
B1821BH038C125N	2015-03-64	4	United States
B1821BH038C125N	2015-01-29	4	United States
MS9072562	2015-01-19	66	US
B1821BH025C125N	2014-03-73	200	us
B1821BH025C125N	2014-03-71	235	United States
B1821BH038C125N	2014-03-71	713	United States
MS9072562	2013-11-312	17	US
5305-00-068-0511	2013-10-291	4	Colombia
B1821BH025C125N	2013-10-282	12	United States
B1821BH025C125N	2013-10-280	40	United States
B1821BH038C125N	2013-10-280	800	United States
MS35295-62	2013-09-249	260
MS9072510	2013-07-212	20	US
5305-00-068-0511	2013-07-183	1	US
5305-00-068-0511	2013-07-183	2	US
B1821BH038C125N	2013-02-46	3225	US
B1821BH025C125N	2012-10-296	774	US
B1821BH038C125N	2012-09-269	100	US
B1821BH025C125N	2012-08-223	3030	US
B1821AH025C125N	2012-04-121	500	US
MS3529110	2012-04-93	35	US
MS9072810	2012-03-73	162	United States
B1821BH038C125N	2011-12-343	42	US
MS9072862	2011-11-308	300	United States
5305-00-068-0511	2011-09-250	3000	DIBBS
B1821BH025C125N	2011-07-202	475	us
MS9072510	2011-07-202	15000	US
5305-00-068-0511	2011-07-201	8	MANUAL
B1821BH038C125N	2011-07-188	95	United States
MS9072562	2011-06-181	1500	United States
MS90728-62	2011-06-180	6	AE
MS90728-62	2011-06-180	6	AE
B1821BH038C125N	2011-04-110	200	VA
MS90728-10	2011-04-95	16	United States
MS9072862	2011-03-77	5280	US
MS9072562	2011-03-70	11	Belgium
5305-00-068-0511	2011-03-63	40000	United States
B1821BH038C125N	2011-02-47	536	United States
MS9072862	2011-02-47	536	United States
MS9072562	2011-01-24	202	US
MS9072510	2010-12-356	1	Italy
B1821BH038C125N	2010-11-308	14000	US
B1821BH038C125N	2010-11-308	1200	US
B1821BH025C125N	2010-08-230	4	United States
MS9072510	2010-08-214	2	United States
5305-00-068-0511	2010-07-193	9100	US
5305-00-068-0511	2010-06-180	9000	DIBBS
5305-00-068-0511	2010-02-46	20	France
5305-00-068-0511	2010-01-27	48	US
B1821BH025C125N	2009-12-338	1272	US
B1821BH025C125N	2009-10-300	1000	US
5305-00-068-0511	2009-08-224	320	US
5305-00-068-0511	2009-08-223	320	United States
B1821BH038C125N	2009-07-208	4000	US
B1821BH025C125N	2009-05-128	1000	US
5305-00-068-0511	2009-03-86	9600	DIBBS
MS3529562	2009-02-34	1435	US
5305-00-068-0511	2008-09-254	7000	DIBBS
B1821BH038C125N	2008-07-200	250	US
B1821BH038C125N	2008-05-148	10	United States
5305-00-068-0511	2008-05-128	1400	US
5305-00-068-0511	2008-04-121	5671	DIBBS
5305-00-068-0511	2007-04-110	100	United States

Cross Reference | NSN 5305-00-068-0511

Part Number	Cage Code	Manufacturer
0826V042	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
122-5277668 ITEM 45	53711	NAVAL SEA SYSTEMS COMMAND
12Z24-43	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
13014410-19	19200	US ARMY ARDEC RDECOM
17C620	12603	CLARK EQUIPMENT CO
180124	80195	E D ETNYRE & CO DBA EDETNYRE
186622	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
23036269-062	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2DD63	45152	OSHKOSH CORPORATION
2DD63	75Q65	OSHKOSH DEFENSE, LLC
418 757	77294	PIPER AIRCRAFT INC.
508-5562718 ITE	53711	NAVAL SEA SYSTEMS COMMAND
522C502007	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305-068-0511	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305000680511	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0552926	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
609004-056	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7617530	09017	EDO
87750-35	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
91236A626	39428	MCMASTER-CARR SUPPLY COMPANY
9415840	24617	GENERAL MOTORS CORP
980394136	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
9C-00209	62934	WAUSAU EQUIPMENT COMPANY, INC.
AES01C375A25AW9A91	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
ASME B18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B1821BH038C125N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
E103972 FIND NO 57	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
MS35295-62	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS90725-62	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
MS90725-62	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS90728-62	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90728-62	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
SC2-169	10904	CARTER MOTOR CO
SF10914 REV B PC23	59180	IMO INDUSTRIES INC. DBA IMO PUMP DIVISION
SK-5000-13	0EAK3	GSE MANAGEMENT CO
WG103806	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-068-0511

Compare

Related Products | NSN 5305-00-068-0511

5305-00-068-0512, 5305-00-068-0515, 5305-00-068-0516, 5305-00-068-0517, 5305-00-068-0518

Technical Data | NSN 5305-00-068-0511

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.375 INCHES
THREAD QUANTITY PER INCH	16
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	1.000 INCHES MINIMUM AND 1.188 INCHES MAXIMUM
FASTENER LENGTH	1.188 INCHES MINIMUM AND 1.250 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	SAE J429 GRADE 8 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A354 GRADE BD ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	150000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.226 INCHES MINIMUM AND 0.243 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM
SURFACE FINISH	63.0 MICROINCHES THREADS

Restrictions/Controls & Freight Information | NSN 5305-00-068-0511

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-068-0511

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
