NSN 4730-00-922-8274 6846234, 00-922-8274, 009228274
Product Details | SWIVEL RETAINING PIPE FLANGE
4730-00-922-8274 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).
Part Alternates: 6846234, 4730-00-922-8274, 00-922-8274, 4730009228274, 009228274
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 DEC 1965 | 00-922-8274 | 03799 ( FLANGE, PIPE, SWIVEL RETAINING ) |
Drawings & Photos | NSN 4730-00-922-8274
Cross Reference | NSN 4730-00-922-8274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6846234 | 73342 | ALLISON TRANSMISSION, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-922-8274
Related Products | NSN 4730-00-922-8274
Technical Data | NSN 4730-00-922-8274
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5651 ASSN STD SINGLE MATERIAL RESPONSE |
| BOLT CIRCLE DIAMETER | 1.260 INCHES MINIMUM AND 1.280 INCHES MAXIMUM |
| FLANGE LENGTH | 1.810 INCHES MINIMUM AND 1.870 INCHES MAXIMUM |
| FLANGE WIDTH | 0.970 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| BOLT HOLE DIAMETER | 0.217 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| FLANGE END RADIUS | 0.275 INCHES MINIMUM AND 0.295 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 2 |

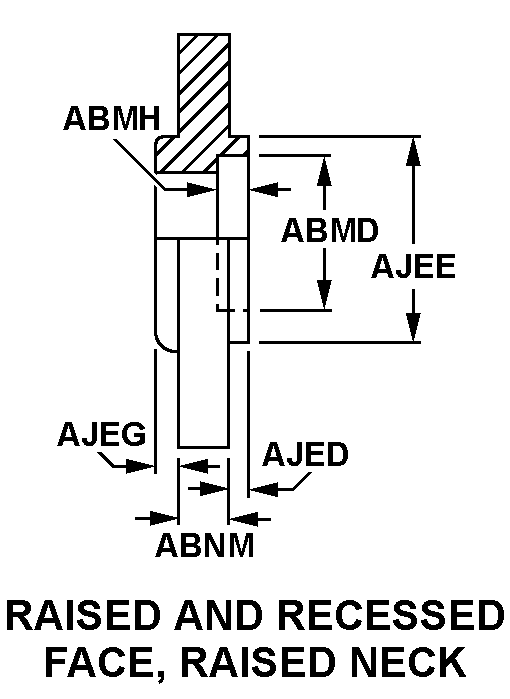

| FLANGE SECTION STYLE | 3 RAISED AND RECESSED FACE, RAISED NECK |
| RECESS DIAMETER | 0.652 INCHES MINIMUM AND 0.657 INCHES MAXIMUM |
| RECESS DEPTH | 0.042 INCHES MINIMUM AND 0.047 INCHES MAXIMUM |
| THICKNESS | 0.040 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
| RAISED FACE HEIGHT | 0.022 INCHES MINIMUM AND 0.026 INCHES MAXIMUM |
| NECK HEIGHT | 0.373 INCHES MINIMUM AND 0.397 INCHES MAXIMUM |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIAL FEATURES | MEDIA FOR SHICH DESIGNED,HYDROCARBON FUELS AND OILS |
| MANUFACTURERS CODE | 73342 |
| DESIGN CONTROL REFERENCE | 6846234 |
Restrictions/Controls & Freight Information | NSN 4730-00-922-8274
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
