NSN 4730-00-289-6015 MS20756D16, AN756D16, 964416D
Product Details | SWIVEL RETAINING PIPE FLANGE
4730-00-289-6015 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).
Part Alternates: MS20756D16, AN756D16, 964416D, 9644-16D, 4730-00-289-6015, 00-289-6015, 4730002896015, 002896015
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-289-6015 | 03799 ( FLANGE, PIPE, SWIVEL RETAINING ) |

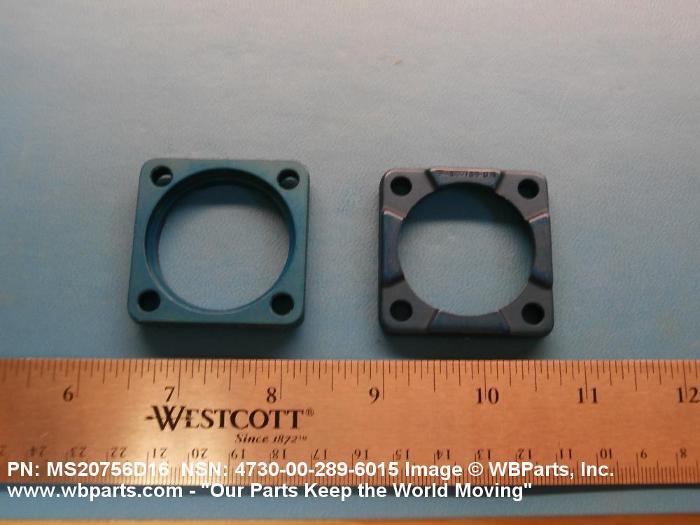

Drawings & Photos | NSN 4730-00-289-6015
Demand History | NSN 4730-00-289-6015
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20756D16 | 2024-12-339 | 2 | United States |
| MS20756D16 | 2023-08-233 | 4 | United States |
| MS20756D16 | 2021-05-124 | 1 | United States |
| 964416D | 2019-04-108 | 4 | United States |
| MS20756D16 | 2012-08-234 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-289-6015
Related Products | NSN 4730-00-289-6015
Technical Data | NSN 4730-00-289-6015
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4 TEMPER T6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6 TEMPER T6 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2 MIL SPEC 1ST TREATMENT RESPONSE |
| STYLE DESIGNATOR | 7 SQUARE, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 1.855 INCHES NOMINAL |
| FLANGE WIDTH | 1.750 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.205 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| FLANGE SECTION STYLE | 20 PLAIN FACE, SOCKET NECK |
| RECESS DIAMETER | 1.510 INCHES NOMINAL |
| THICKNESS | 0.234 INCHES NOMINAL |
| SOCKET DEPTH | 0.136 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1500.0 POUNDS PER SQUARE INCH FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT FUEL/OIL, HYDROCARBON |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIFICATION/STANDARD DATA | 96906-MS20756 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20756D16 |
Restrictions/Controls & Freight Information | NSN 4730-00-289-6015
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052250 | PIPE R TUBING R PIPE FITTINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-289-6015
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
