NSN 4730-00-289-6016 MS2075632, MS20756-32, AN75632
Product Details | SWIVEL RETAINING PIPE FLANGE
4730-00-289-6016 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).
Part Alternates: MS2075632, MS20756-32, AN75632, AN756-32, 4730-00-289-6016, 00-289-6016, 4730002896016, 002896016
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-289-6016 | 03799 ( FLANGE, PIPE, SWIVEL RETAINING ) |
Drawings & Photos | NSN 4730-00-289-6016
Demand History | NSN 4730-00-289-6016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-289-6016 | 2014-12-356 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-289-6016
Related Products | NSN 4730-00-289-6016
Technical Data | NSN 4730-00-289-6016

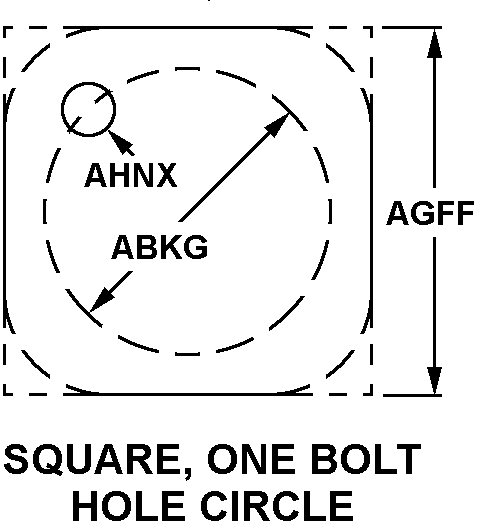

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 7 SQUARE, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 3.359 INCHES NOMINAL |
| FLANGE WIDTH | 3.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.328 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| FLANGE SECTION STYLE | 19 PLAIN RECESSED FACE |
| RECESS DIAMETER | 2.760 INCHES MINIMUM AND 2.765 INCHES MAXIMUM |
| RECESS DEPTH | 0.168 INCHES MINIMUM AND 0.173 INCHES MAXIMUM |
| THICKNESS | 0.297 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.000 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 500.0 POUNDS PER SQUARE INCH FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT FUEL/OIL, HYDROCARBON |
| FACE SEATING SURFACE CONDITION | MACHINED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20756-32 |
Restrictions/Controls & Freight Information | NSN 4730-00-289-6016
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-289-6016
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
