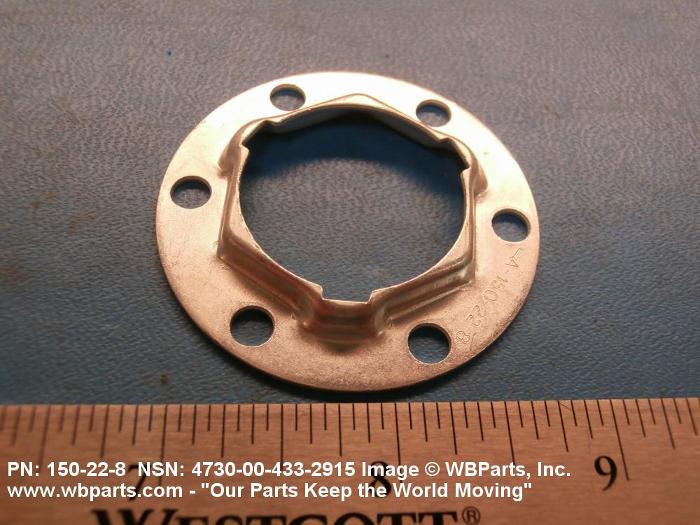

Product Details | SWIVEL RETAINING PIPE FLANGE
4730-00-433-2915 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).
Part Alternates: AN62238, AN6223-8, 8146857, 150228, 150-22-8, 4730-00-433-2915, 00-433-2915, 4730004332915, 004332915
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-433-2915 | 03799 ( FLANGE, PIPE, SWIVEL RETAINING ) |
Drawings & Photos | NSN 4730-00-433-2915
Demand History | NSN 4730-00-433-2915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-433-2915 | 2022-11-313 | 6 | United States |
| 150228 | 2016-09-251 | 5 | us |
| 4730-00-433-2915 | 2014-11-307 | 226 | DIBBS |
| 4730-00-433-2915 | 2014-10-296 | 226 | DIBBS |
| 150228 | 2012-12-346 | 5 | Turkey |
| 150-22-8 | 2012-11-331 | 5 | Turkey |
| 4730-00-433-2915 | 2012-11-331 | 5 | MANUAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-433-2915
Related Products | NSN 4730-00-433-2915
Technical Data | NSN 4730-00-433-2915
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 1.687 INCHES NOMINAL |
| FLANGE DIAMETER | 2.005 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.201 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 6 |
| FLANGE SECTION STYLE | 4 PLAIN FACE, RAISED NECK |
| THICKNESS | 0.050 INCHES NOMINAL |
| NECK HEIGHT | 0.175 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| FACE SEATING SURFACE CONDITION | MACHINED |
| III END ITEM IDENTIFICATION | B52 AND KC-135 AIRCRAFTS |
Restrictions/Controls & Freight Information | NSN 4730-00-433-2915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
