Product Details | PIPE FLANGE
4730-00-433-2917 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 1402216, 140-22-16, 4730-00-433-2917, 00-433-2917, 4730004332917, 004332917
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-433-2917 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-433-2917
Cross Reference | NSN 4730-00-433-2917
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 140-22-16 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-433-2917
Technical Data | NSN 4730-00-433-2917
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |

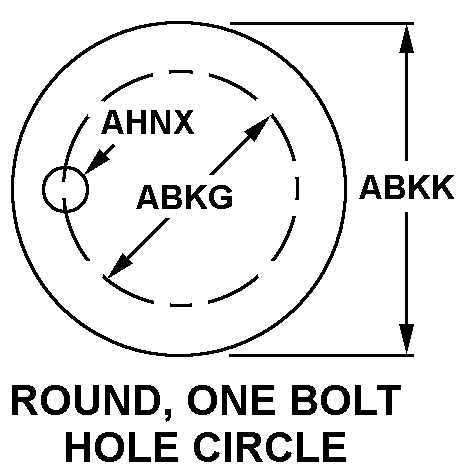

| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 2.375 INCHES NOMINAL |
| FLANGE DIAMETER | 2.755 INCHES NOMINAL |
| FLANGE WIDTH ACROSS FLATS | 2.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.193 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 6 |

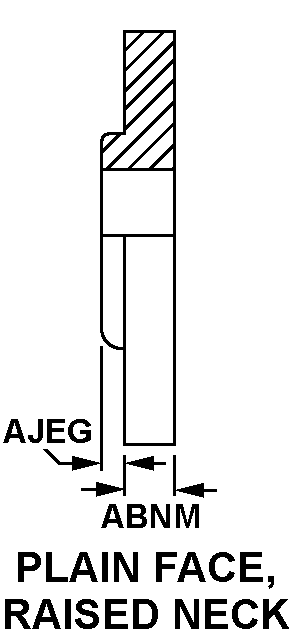

| FLANGE SECTION STYLE | 4 PLAIN FACE, RAISED NECK |
| THICKNESS | 0.050 INCHES NOMINAL |
| NECK HEIGHT | 0.167 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIAL FEATURES | BOSS END IS SLOTTED FOR TWIST LOCK |
