Product Details | SWIVEL RETAINING PIPE FLANGE

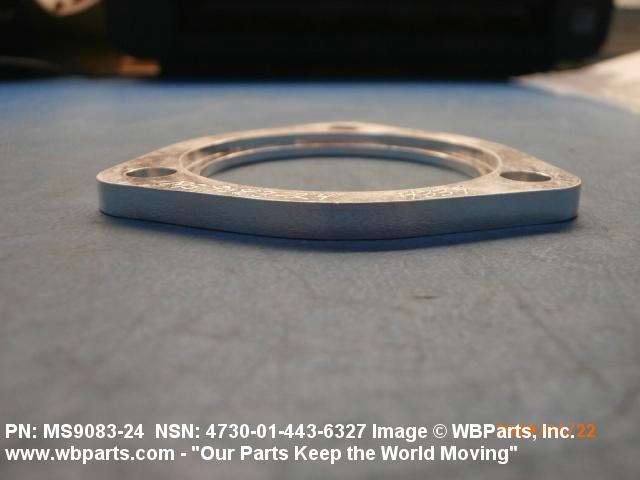

4730-01-443-6327 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).

Part Alternates: MS908324, MS9083-24, 4730-01-443-6327, 01-443-6327, 4730014436327, 014436327

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 14 APR 1997 01-443-6327

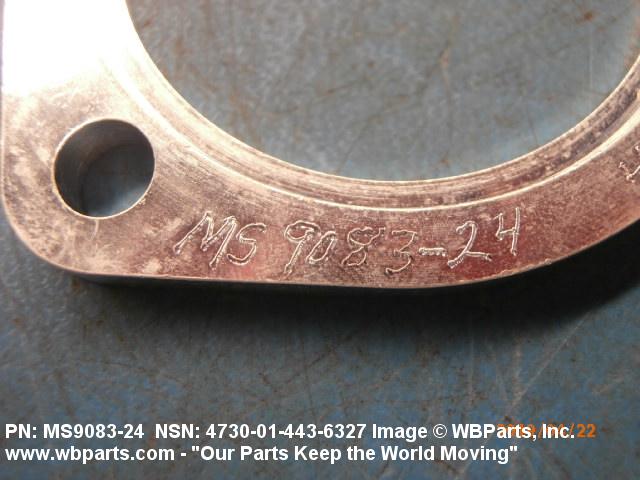

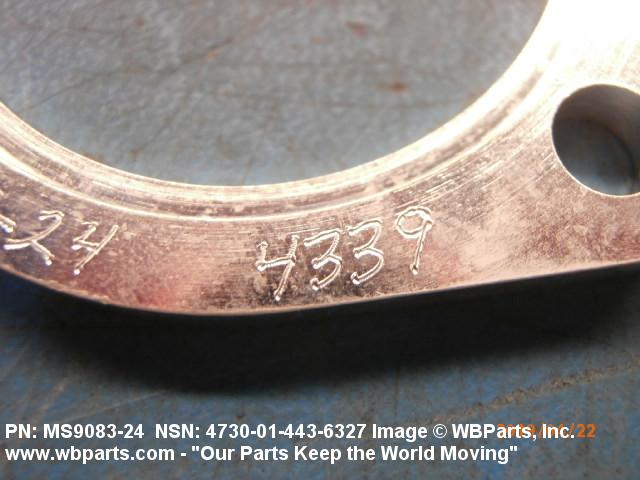

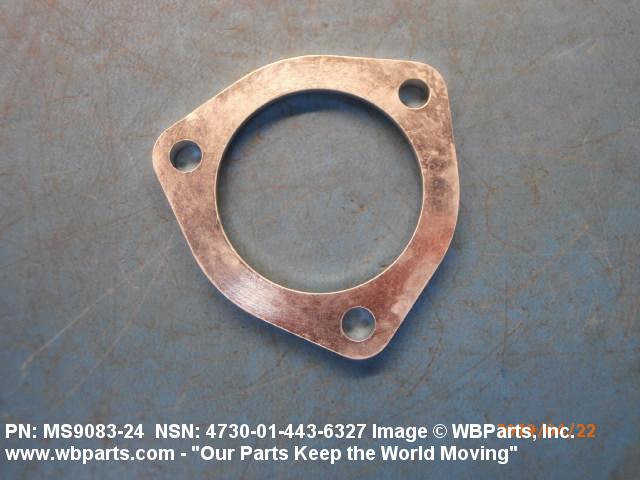

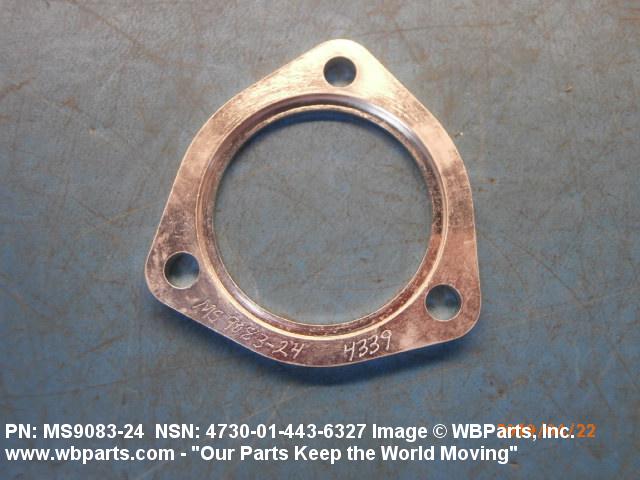

Drawings & Photos | NSN 4730-01-443-6327


Demand History | NSN 4730-01-443-6327

Part Number Request Date QTY Origin
MS908324 2019-04-100 2 United States
MS908324 2019-04-99 4 US
MS908324 2014-03-69 6 US

Cross Reference | NSN 4730-01-443-6327

Part Number Cage Code Manufacturer
MS9083-24 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-443-6327

Technical Data | NSN 4730-01-443-6327

Characteristic Specifications
MATERIAL STEEL

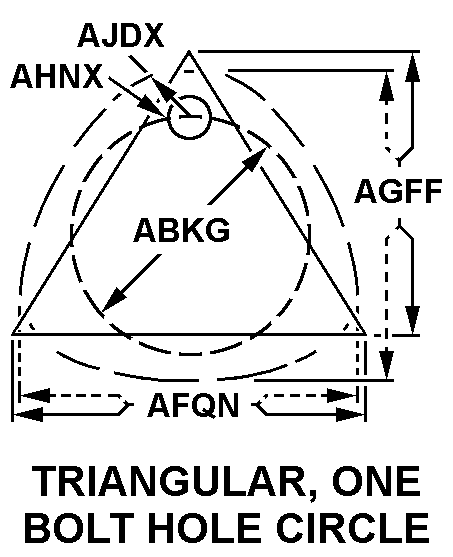

STYLE DESIGNATOR 4 TRIANGULAR, ONE BOLT HOLE CIRCLE

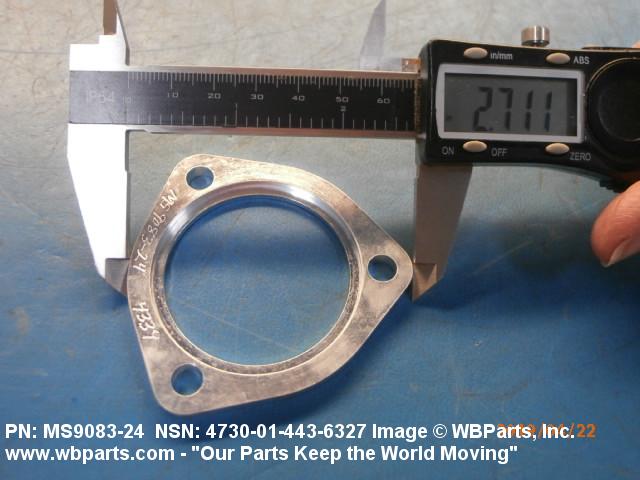

BOLT CIRCLE DIAMETER 2.398 INCHES NOMINAL
FLANGE LENGTH ANY ACCEPTABLE
FLANGE WIDTH ANY ACCEPTABLE

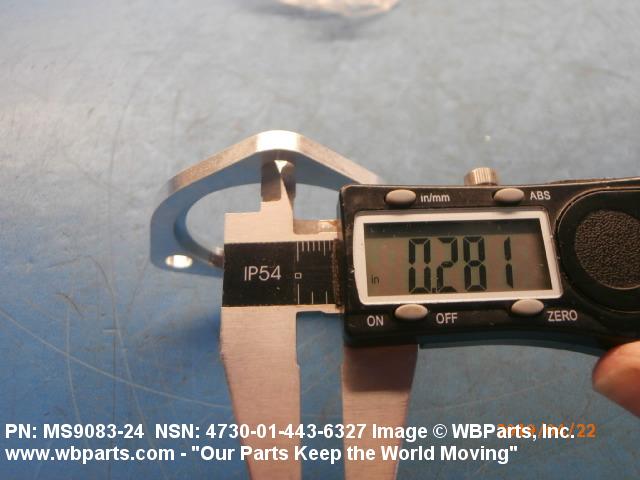

BOLT HOLE DIAMETER 0.281 INCHES NOMINAL
FLANGE END RADIUS 0.281 INCHES NOMINAL
BOLT HOLE QUANTITY 3

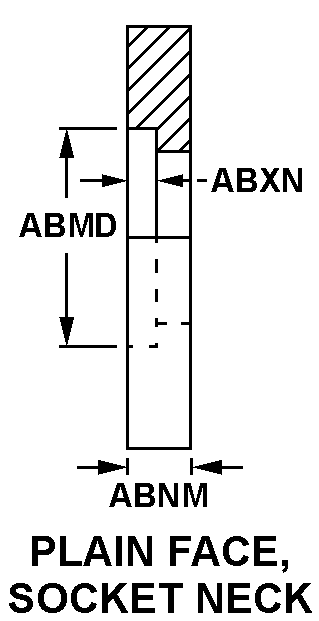

FLANGE SECTION STYLE 20 PLAIN FACE, SOCKET NECK

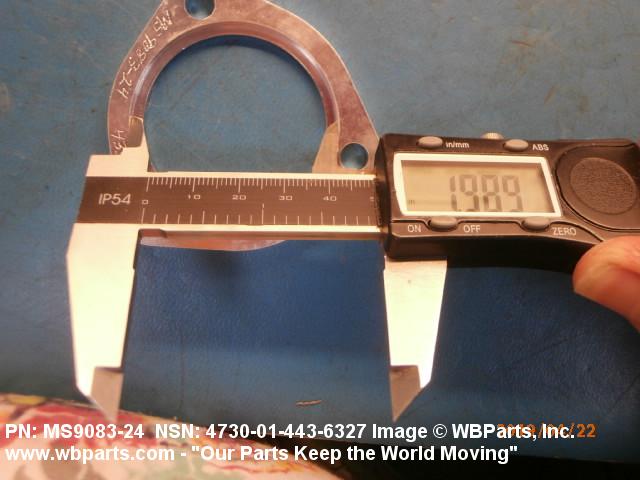

RECESS DIAMETER 1.994 INCHES NOMINAL

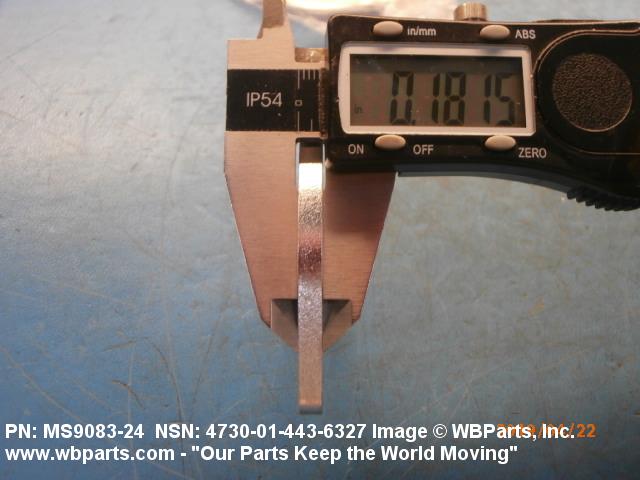

THICKNESS 0.175 INCHES MINIMUM AND 0.185 INCHES MAXIMUM
SOCKET DEPTH ANY ACCEPTABLE
NOMINAL PIPE SIZE FOR WHICH DESIGNED 1.500 INCHES
FACE SEATING SURFACE CONDITION MACHINED
III END ITEM IDENTIFICATION ENGINE,AIRCRAFT, F117-PW-100 (C-17A)
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS9083-24
