NSN 4730-00-855-2766 MS2075616, MS20756-16, AN75612
Product Details | SWIVEL RETAINING PIPE FLANGE

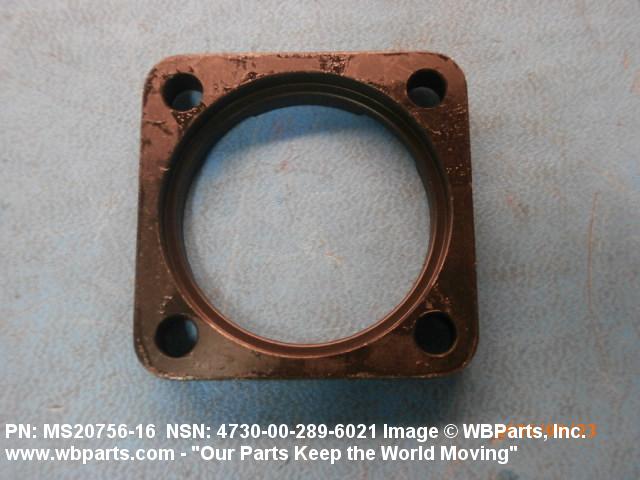

4730-00-855-2766 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).
Part Alternates: MS2075616, MS20756-16, AN75612, AN756-12, 47B110033, 47B11003-3, 4730-00-855-2766, 00-855-2766, 4730008552766, 008552766
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-855-2766 | 03799 ( FLANGE, PIPE, SWIVEL RETAINING ) |

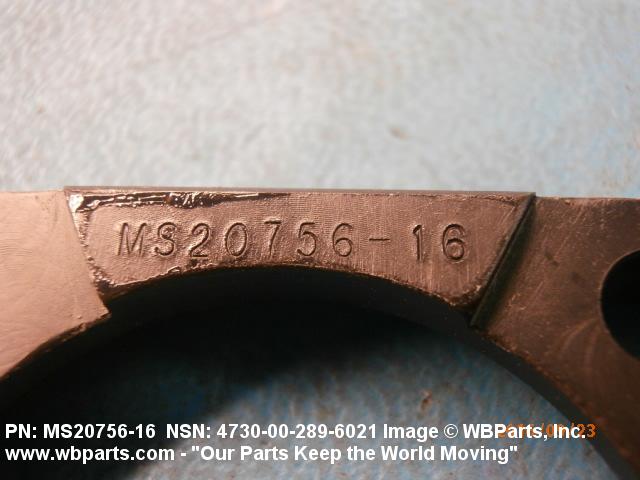

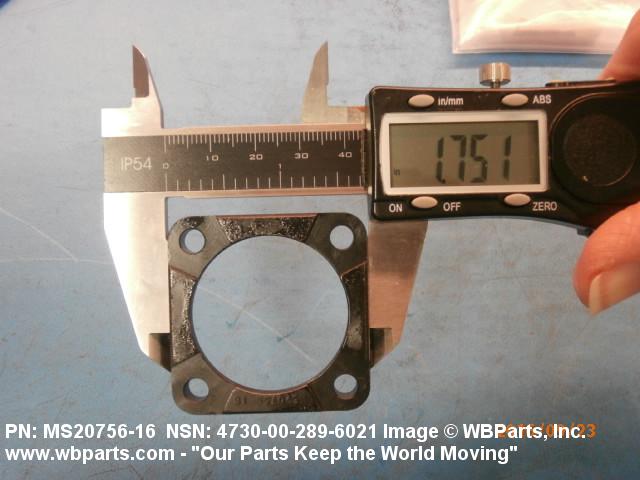

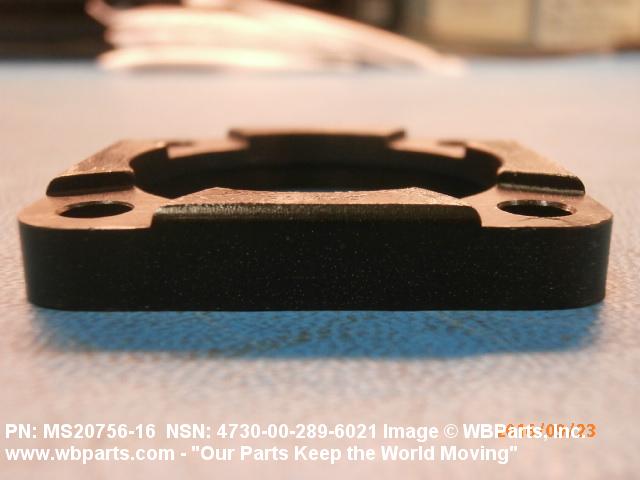

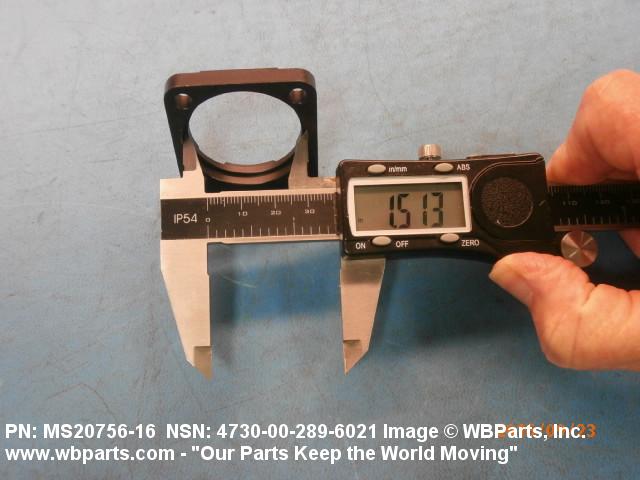

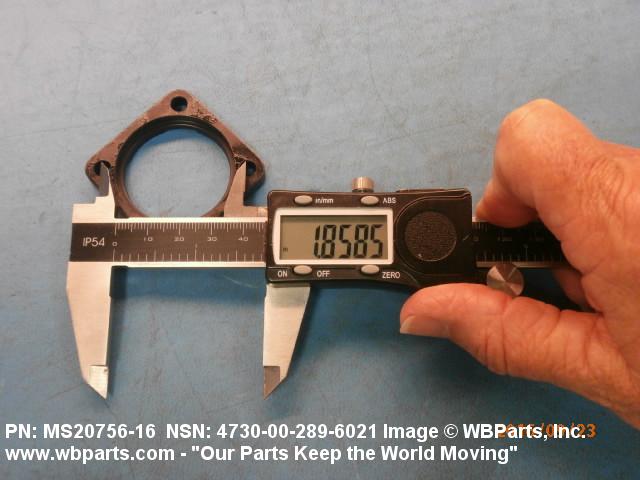

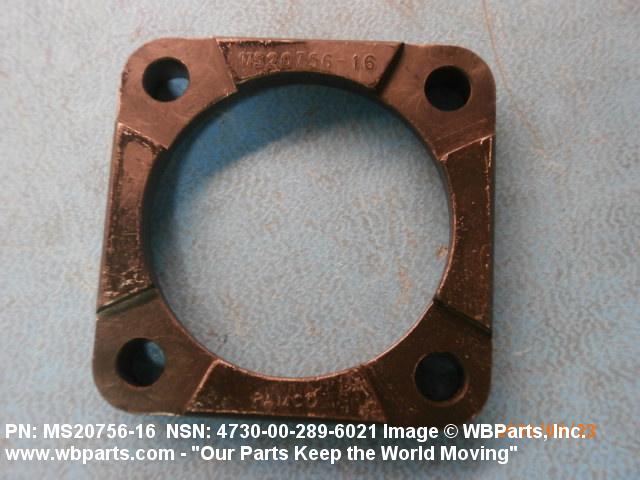

Drawings & Photos | NSN 4730-00-855-2766
Demand History | NSN 4730-00-855-2766
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2075616 | 2018-05-130 | 2 | US |
| 4730-00-855-2766 | 2017-11-320 | 15 | DIBBS |
| 4730-00-855-2766 | 2013-01-03 | 6 | United States |
| MS2075616 | 2010-09-259 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-855-2766
Technical Data | NSN 4730-00-855-2766
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 1.635 INCHES NOMINAL |
| FLANGE DIAMETER | 2.094 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.205 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |

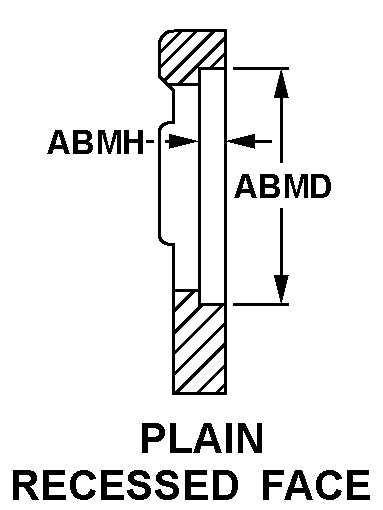

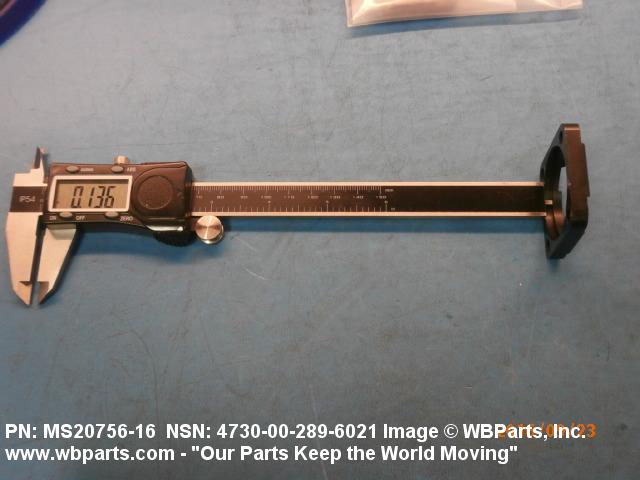

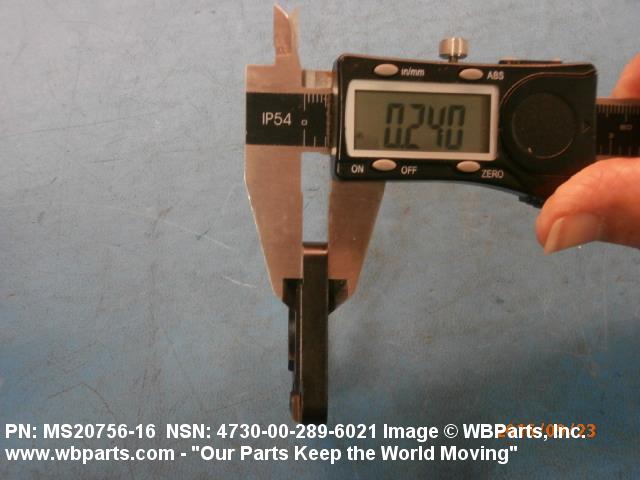

| FLANGE SECTION STYLE | 19 PLAIN RECESSED FACE |
| RECESS DIAMETER | 1.260 INCHES NOMINAL |
| RECESS DEPTH | 0.136 INCHES NOMINAL |
| THICKNESS | 0.234 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1500.0 POUNDS PER SQUARE INCH FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT FUEL/OIL, HYDROCARBON |
| FACE SEATING SURFACE CONDITION | MACHINED |
| MANUFACTURERS CODE | 80049 |
| DESIGN CONTROL REFERENCE | 47B11003-3 |
