NSN 4730-00-202-8769 MS20761D16, AN761D16, 00-202-8769

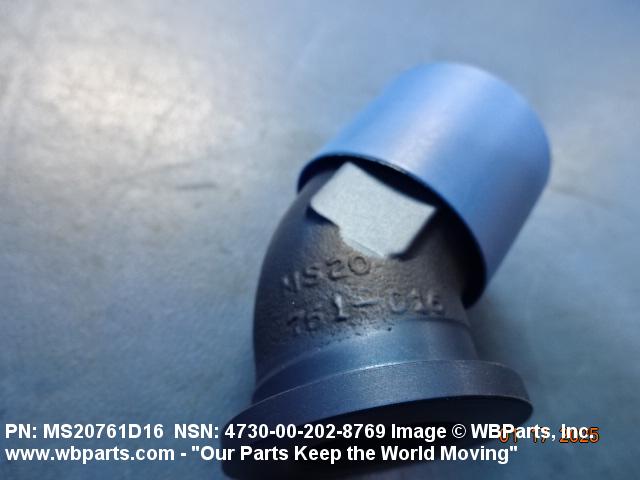

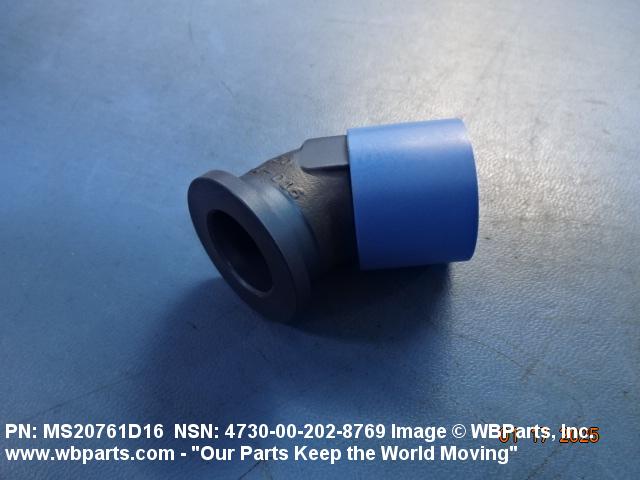

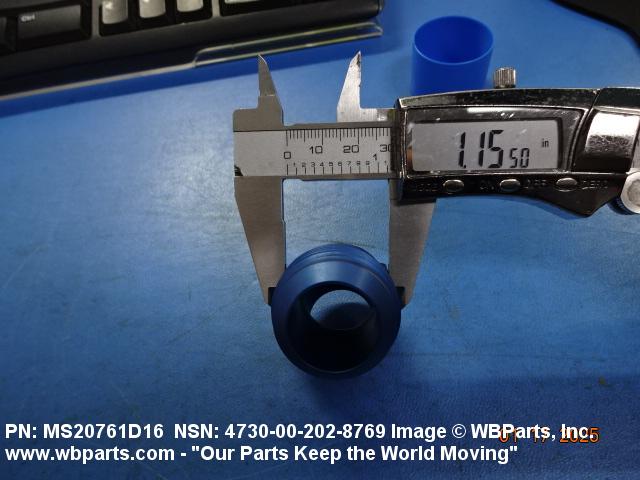

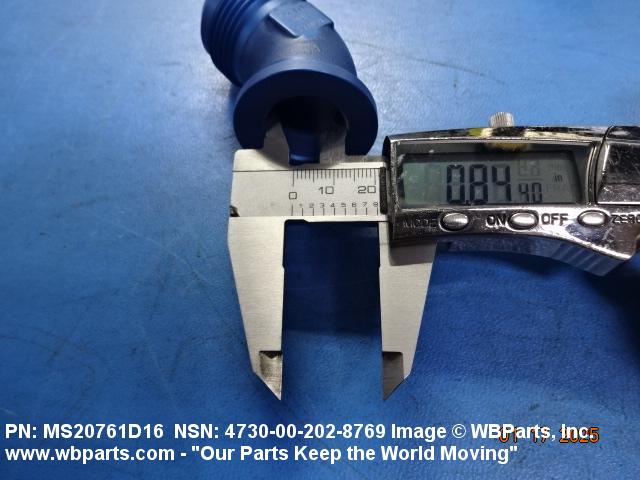

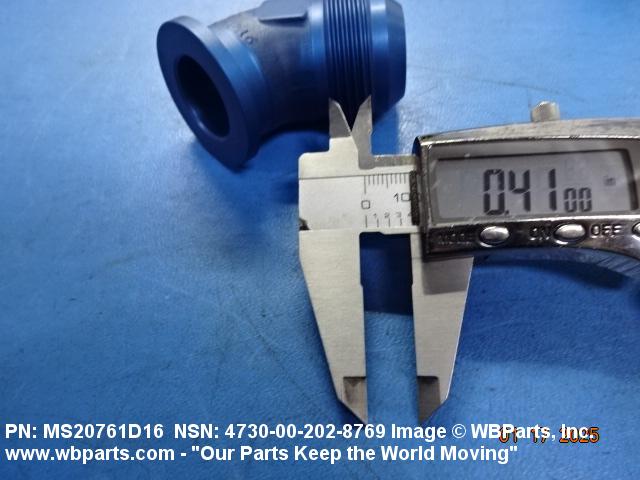

Product Details | FLANGE TO TUBE ELBOW
4730-00-202-8769 A fitting that forms an angle of less that 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side and/or heel inlet(s).
Part Alternates: MS20761D16, AN761D16, 4730-00-202-8769, 00-202-8769, 4730002028769, 002028769
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-202-8769 | 29668 ( ELBOW, FLANGE TO TUBE ) |
Demand History | NSN 4730-00-202-8769
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20761D16 | 2023-05-143 | 10 | US |
| 4730-00-202-8769 | 2017-11-306 | 26 | DIBBS |
| 4730-00-202-8769 | 2016-09-263 | 21 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-202-8769
Related Products | NSN 4730-00-202-8769
Technical Data | NSN 4730-00-202-8769
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,CLASS 1 OR 5 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE INSIDE ANODIZE OUTSIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 135.0 DEG CELSIUS SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END FLANGE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| FLANGE SHAPE | ROUND 2ND END |

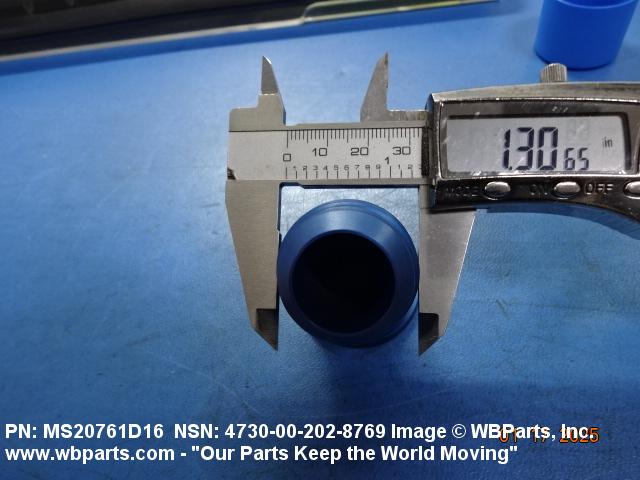

| NOMINAL OUTSIDE DIAMETER | 1.497 INCHES 2ND END |

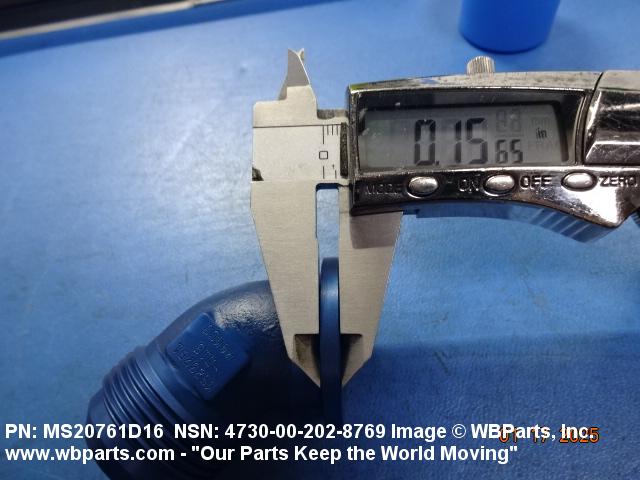

| NOMINAL THICKNESS | 0.154 INCHES 2ND END |
| FLANGE FACE DESIGN | PLAIN 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |

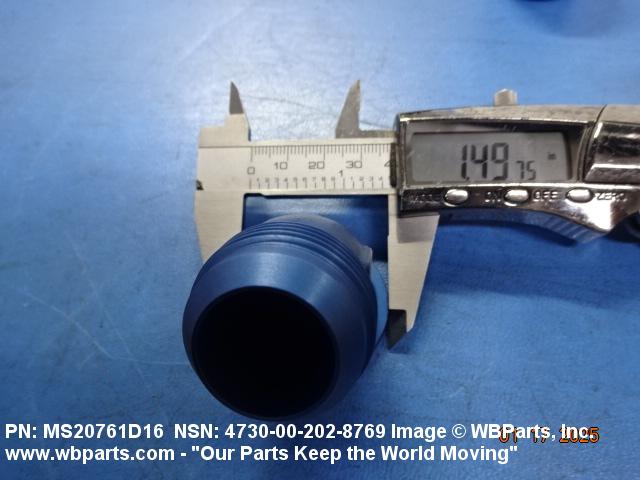

| NOMINAL THREAD SIZE | 1.312 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |

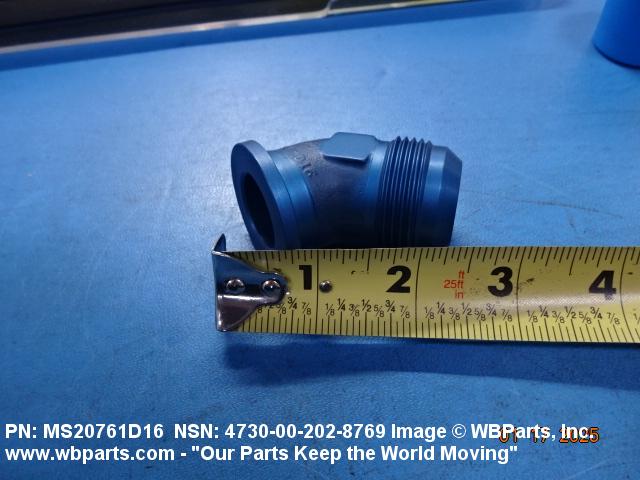

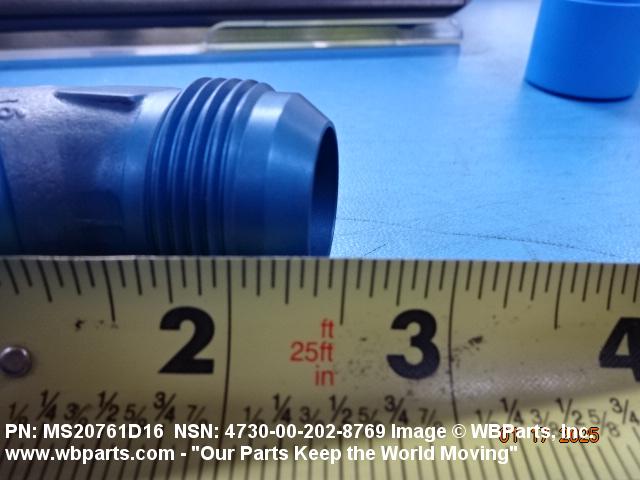

| LEG LENGTH | 1.375 INCHES MINIMUM AND 1.422 INCHES MAXIMUM 1ST END 0.875 INCHES MINIMUM AND 0.922 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| MANUFACTURERS CODE | 96906 |

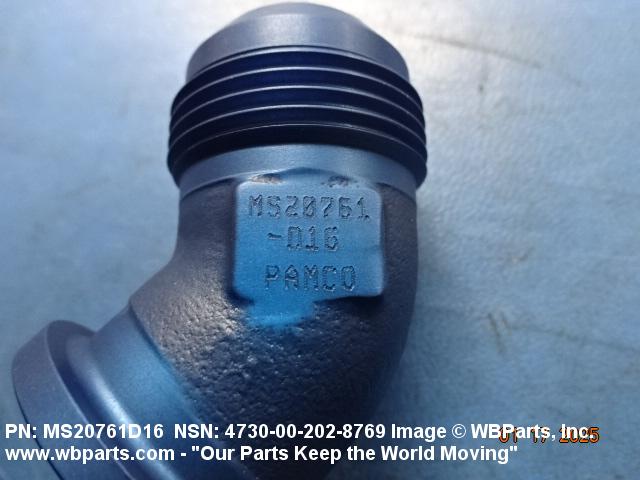

| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20761D16 |
Restrictions/Controls & Freight Information | NSN 4730-00-202-8769
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
