NSN 4730-00-804-5617 403773, 00-804-5617, 008045617
Product Details | FLANGE TO TUBE ELBOW
4730-00-804-5617 A fitting that forms an angle of less that 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side and/or heel inlet(s).
Part Alternates: 403773, 4730-00-804-5617, 00-804-5617, 4730008045617, 008045617
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-804-5617 | 29668 ( ELBOW, FLANGE TO TUBE ) |

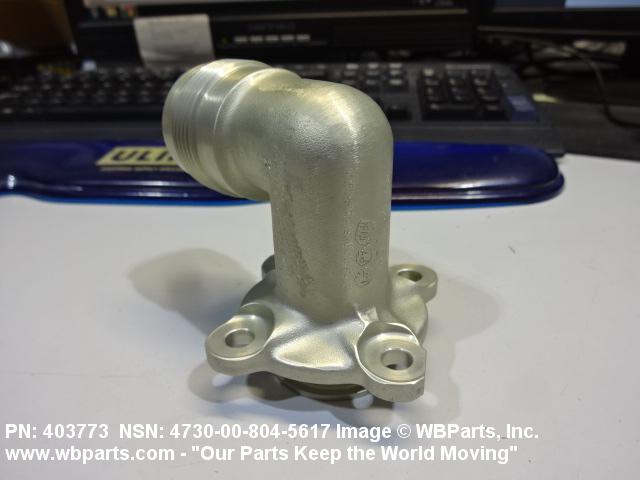

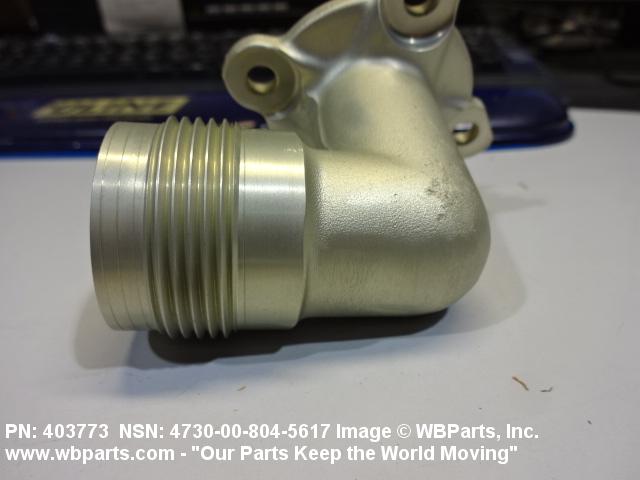

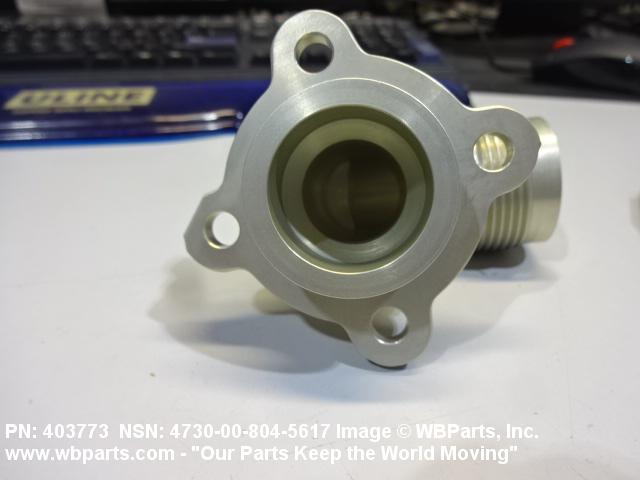

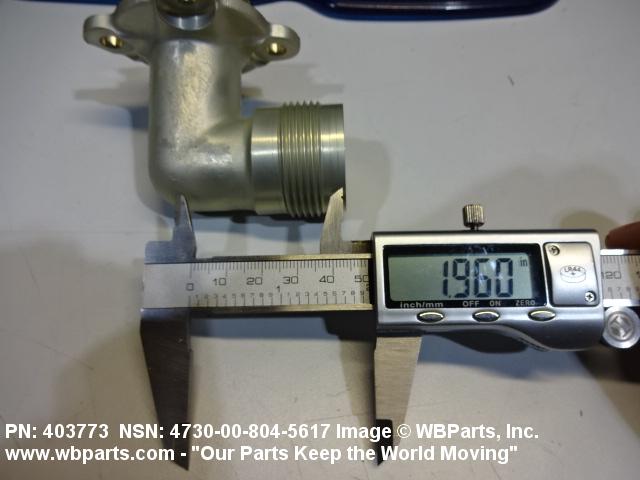

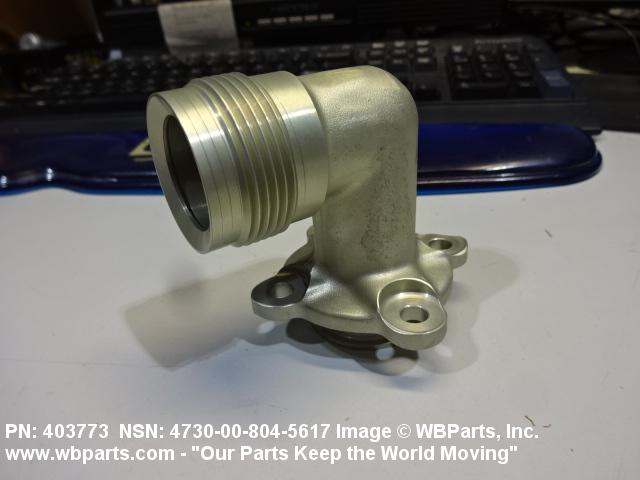

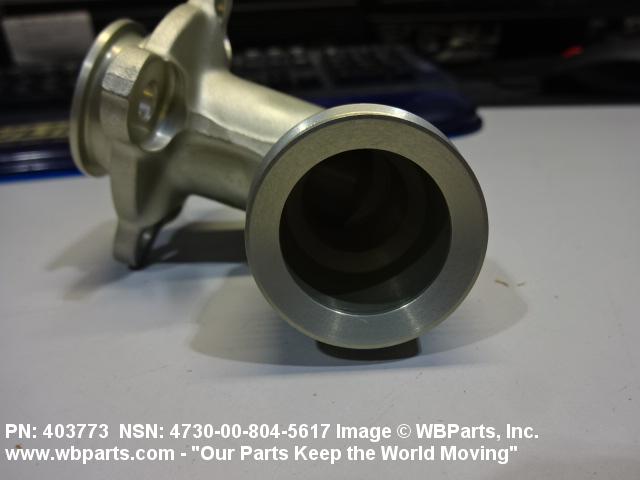

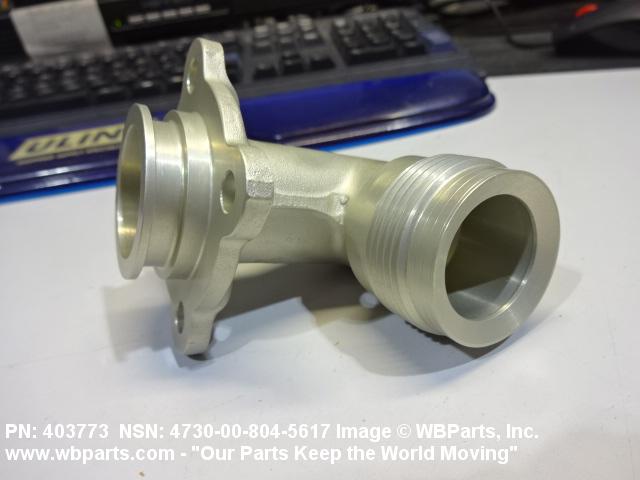

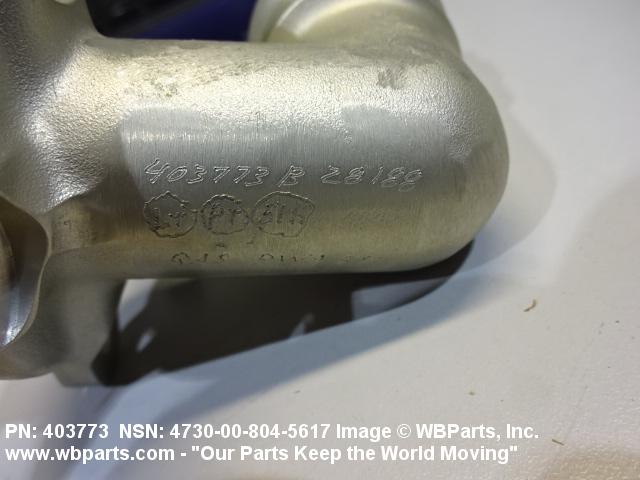

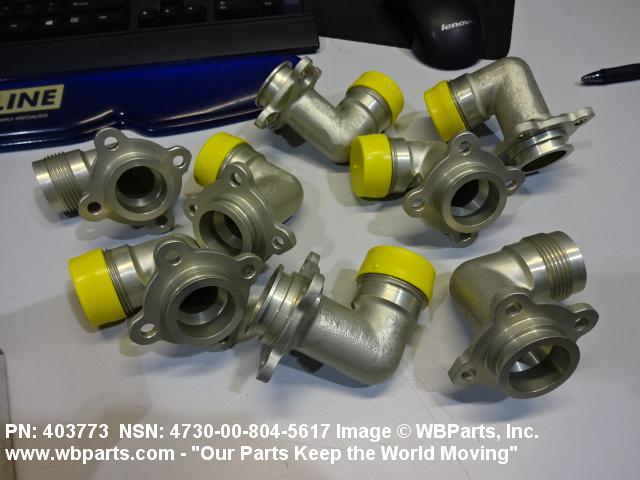

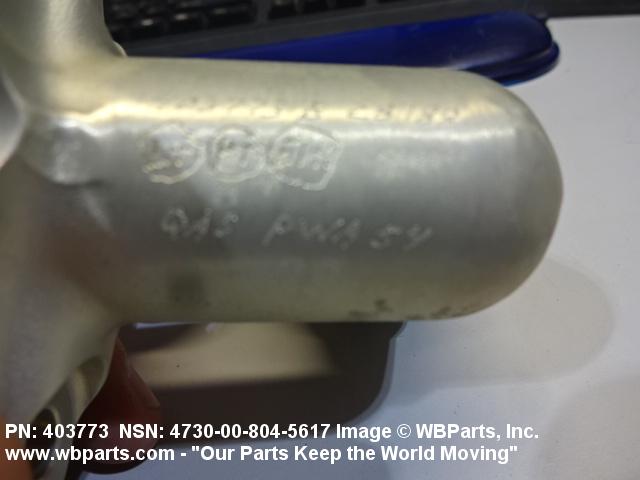

Drawings & Photos | NSN 4730-00-804-5617
Demand History | NSN 4730-00-804-5617
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 403773 | 2020-02-49 | 5 | DIBBS |
| 403773 | 2020-02-35 | 5 | DIBBS |
| 4730-00-804-5617 | 2019-07-190 | 6 | United States |
| 403773 | 2019-05-140 | 7 | DIBBS |
| 403773 | 2019-05-128 | 7 | DIBBS |
| 4730-00-804-5617 | 2018-11-320 | 13 | us |
| 4730-00-804-5617 | 2018-10-282 | 13 | DIBBS |
| 4730-00-804-5617 | 2018-09-270 | 13 | DIBBS |
| 4730-00-804-5617 | 2016-11-313 | 2 | DIBBS |
Cross Reference | NSN 4730-00-804-5617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 403773 | 00285 | KWIK FILE STORAGE SYSTEMS LLC |
| 403773 | 02577 | PACIFIC ENGINEERING AND MFG CO |
| 403773 | 04244 | GENERAL ELECTRIC CO APPARATUS SALES DIVISION OF |
| 403773 | 11449 | TURBO POWER & MARINE SYSTEM INC SUB OF UNITED TECHNOLOGIES CORP |
| 403773 | 32176 | A I M PRECISION MACHINING CO INC |
| 403773 | 52661 | UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY |
| 403773 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-804-5617
Related Products | NSN 4730-00-804-5617
Technical Data | NSN 4730-00-804-5617
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4135 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END FLANGE 2ND END |
| CONNECTION STYLE | B63A INVERTED FLARE 1ST END |
| SEAT ANGLE | 25.0 DEGREES 1ST END |
| FLANGE SHAPE | RECTANGULAR WITH HOLES 2ND END |
| NOMINAL THICKNESS | 0.200 INCHES 2ND END |
| NOMINAL LENGTH | 2.018 INCHES 2ND END |
| NOMINAL WIDTH | 2.018 INCHES 2ND END |
| BOLT HOLE QUANTITY | 4 2ND END |
| BOLT HOLE NOMINAL DIAMETER | 0.281 INCHES 2ND END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.518 INCHES 2ND END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 1.518 INCHES 2ND END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 2ND END |
| RAISED FACE NOMINAL HEIGHT | 0.483 INCHES 2ND END |
| RAISED FACE NOMINAL DIAMETER | 1.455 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.312 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 1.500 INCHES 1ST END |
| THREAD CLASS | 3A 1ST END |
| LEG LENGTH | 1.960 INCHES NOMINAL 1ST END 2.333 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4730-00-804-5617
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-804-5617
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
