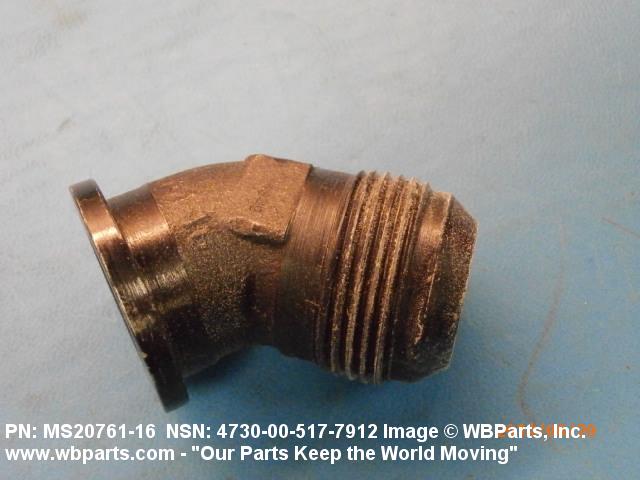

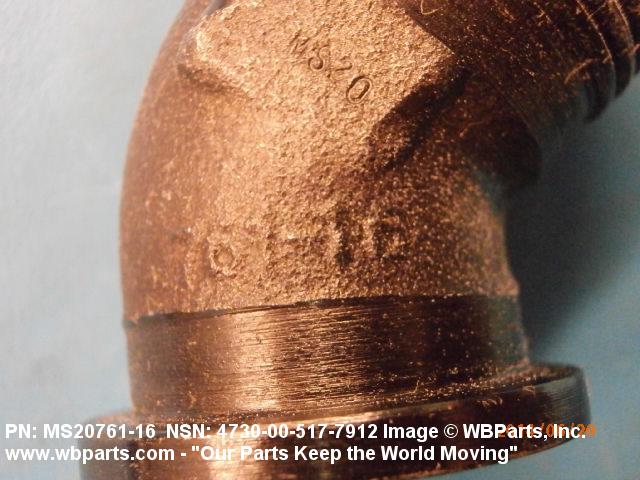

Product Details | FLANGE TO TUBE ELBOW
4730-00-517-7912 A fitting that forms an angle of less that 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side and/or heel inlet(s).
Part Alternates: MS2076116, MS20761-16, AN76116, AN761-16, 4730-00-517-7912, 00-517-7912, 4730005177912, 005177912
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-517-7912 | 29668 ( ELBOW, FLANGE TO TUBE ) |

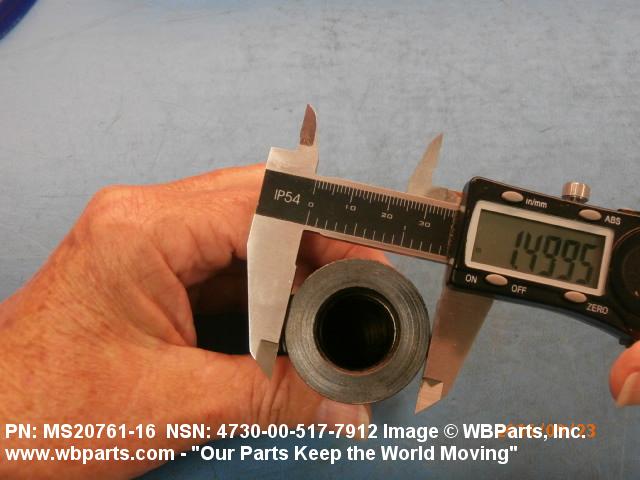

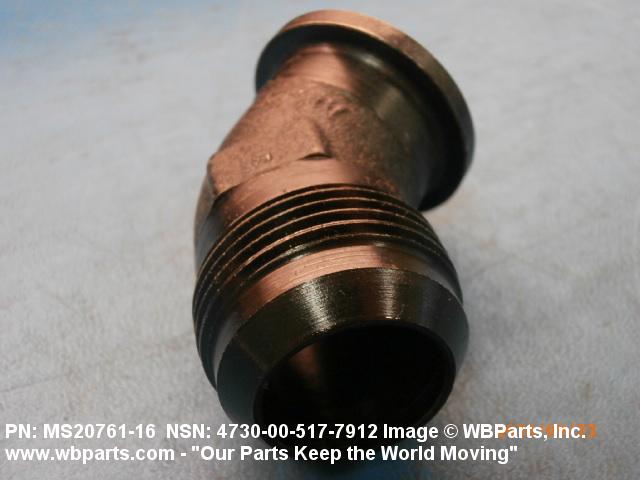

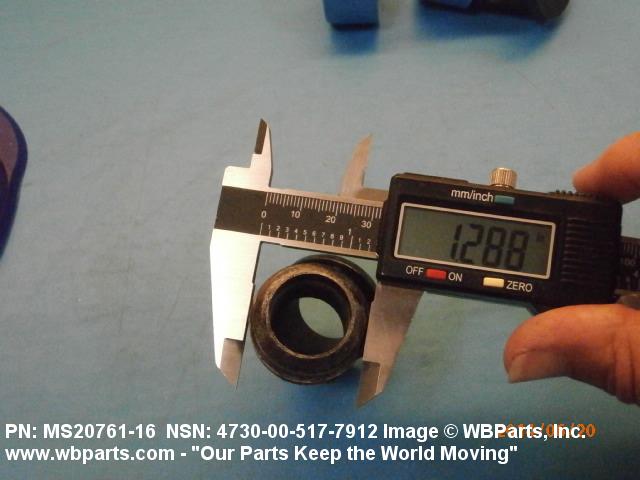

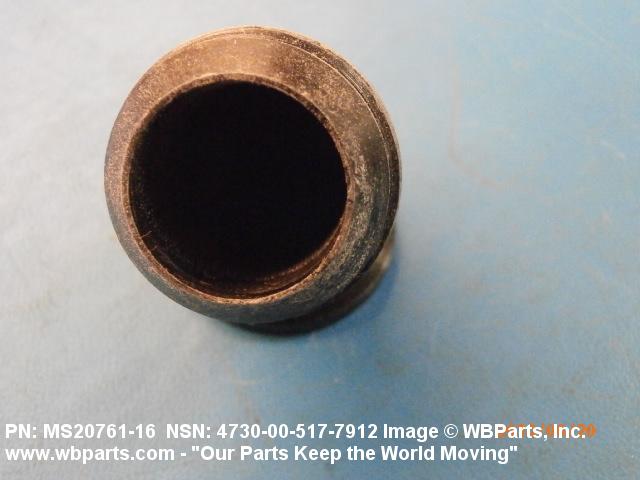

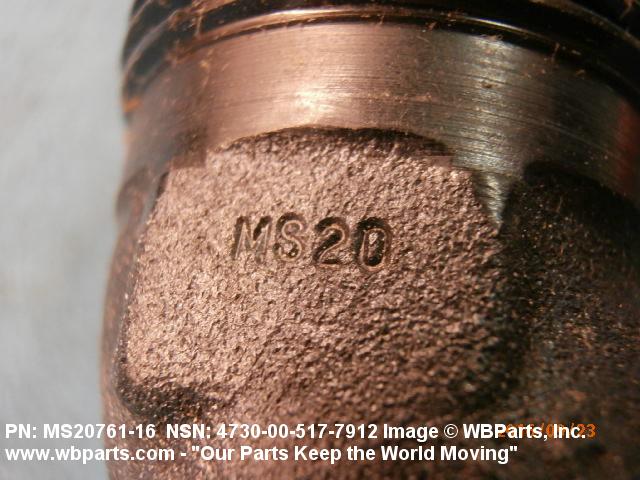

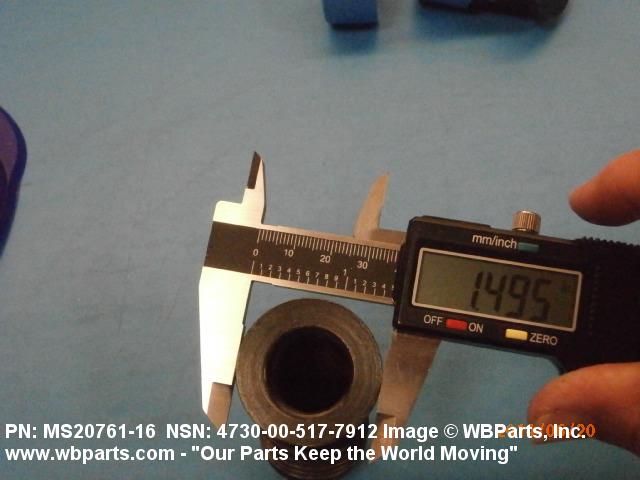

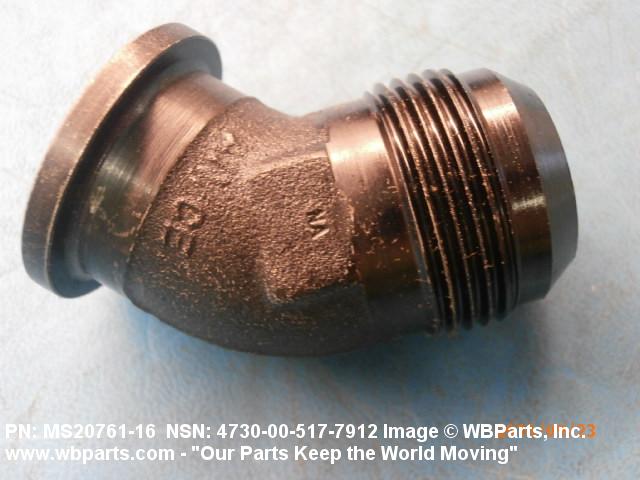

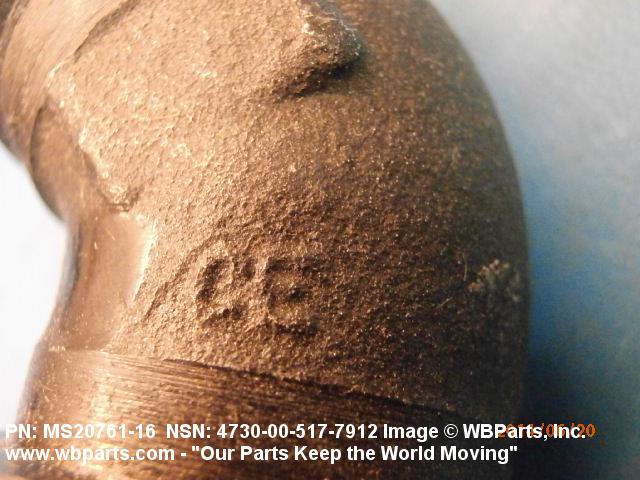

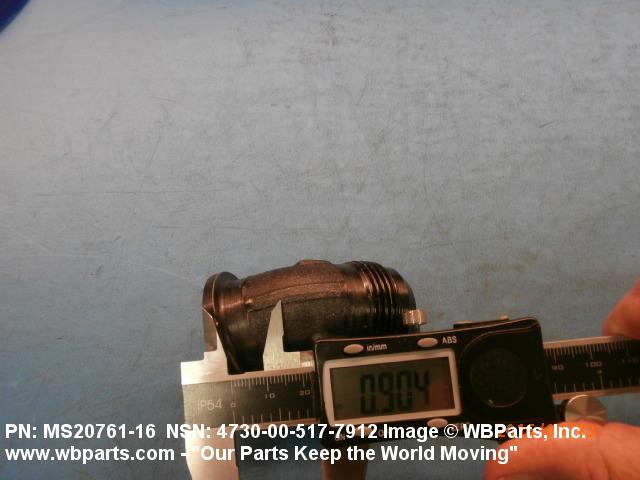

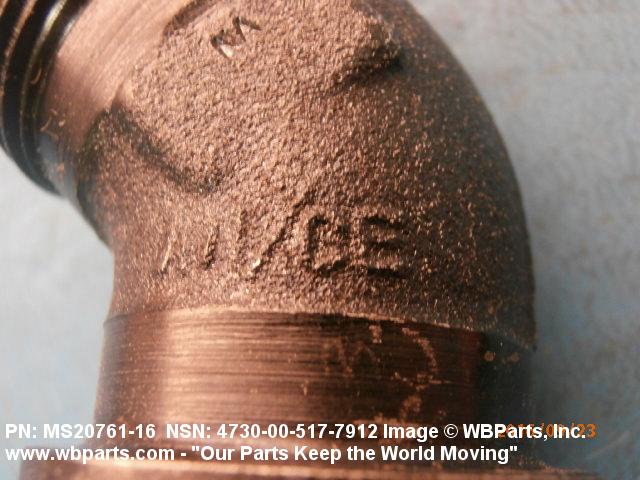

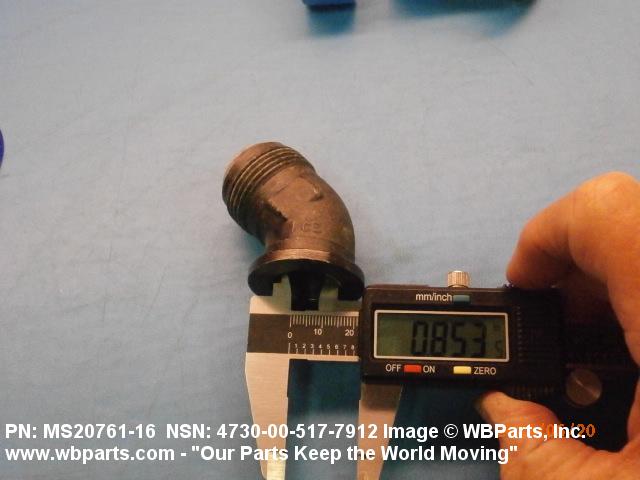

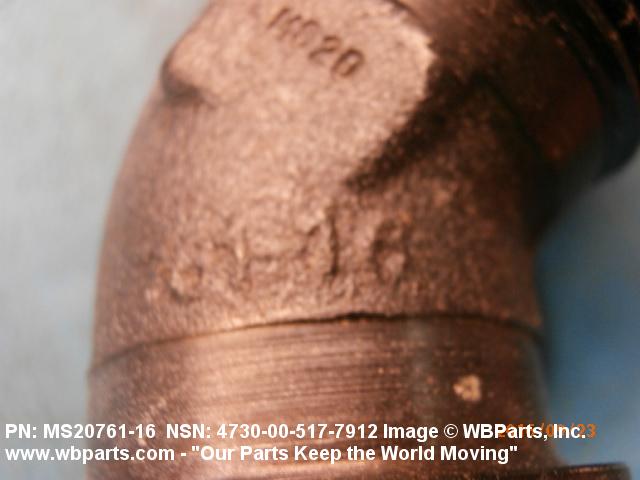

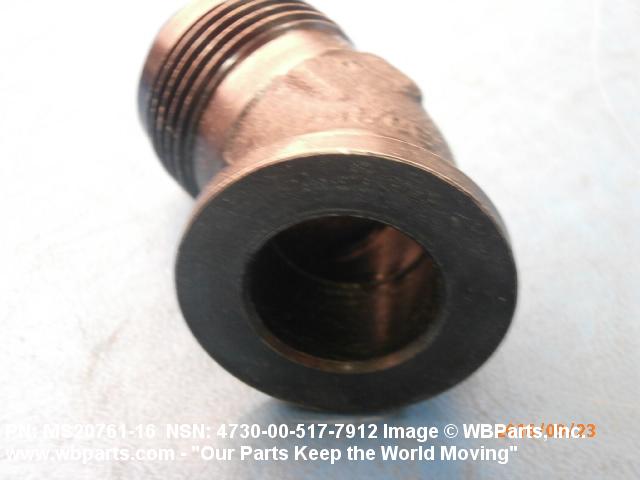

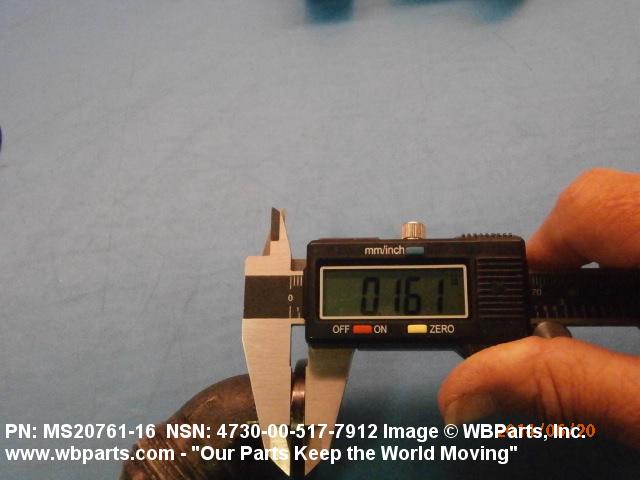

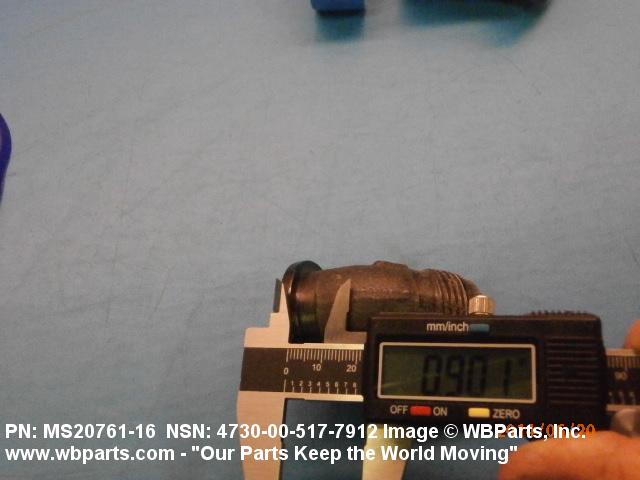

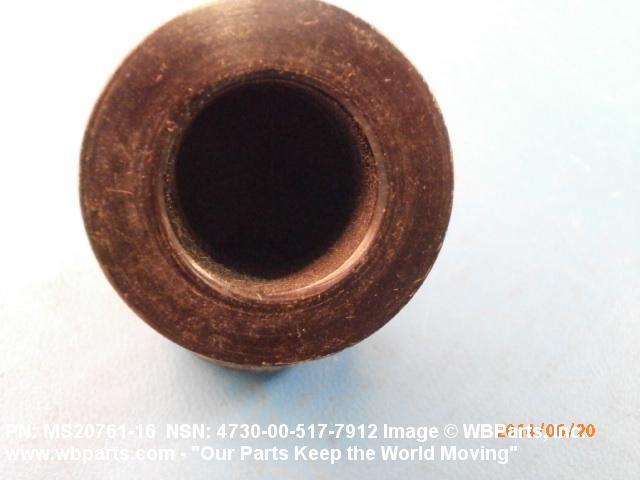

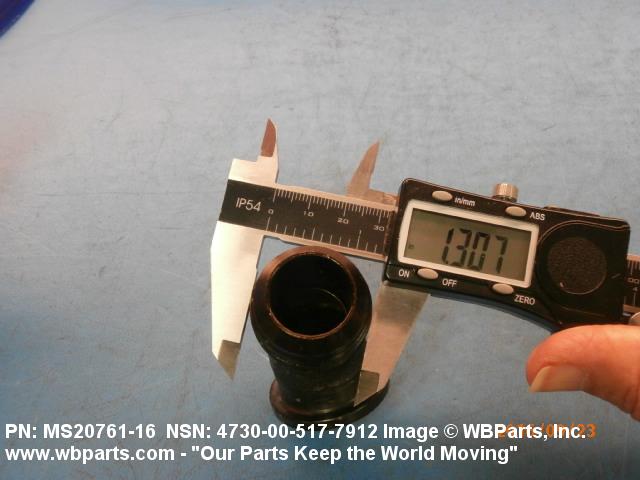

Drawings & Photos | NSN 4730-00-517-7912
Demand History | NSN 4730-00-517-7912
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2076116 | 2018-05-130 | 2 | US |
| 4730-00-517-7912 | 2018-01-08 | 17 | DIBBS |
| 4730-00-517-7912 | 2017-12-339 | 17 | DIBBS |
| MS2076116 | 2016-10-279 | 6 | United States |
| MS2076116 | 2014-05-149 | 2 | United States |
| 4730-00-517-7912 | 2009-04-105 | 35 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-517-7912
Related Products | NSN 4730-00-517-7912
Technical Data | NSN 4730-00-517-7912
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM INSIDE CADMIUM OUTSIDE |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 135.0 DEG CELSIUS SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END FLANGE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| FLANGE SHAPE | ROUND 2ND END |
| NOMINAL OUTSIDE DIAMETER | 1.497 INCHES 2ND END |
| NOMINAL THICKNESS | 0.153 INCHES 2ND END |
| FLANGE FACE DESIGN | PLAIN 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 1.312 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |
| LEG LENGTH | 1.375 INCHES MINIMUM AND 1.422 INCHES MAXIMUM 1ST END 0.875 INCHES MINIMUM AND 0.922 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| III END ITEM IDENTIFICATION | 04F AIRCRAFT, STRATOFORTRESS B-52 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20761-16 |
