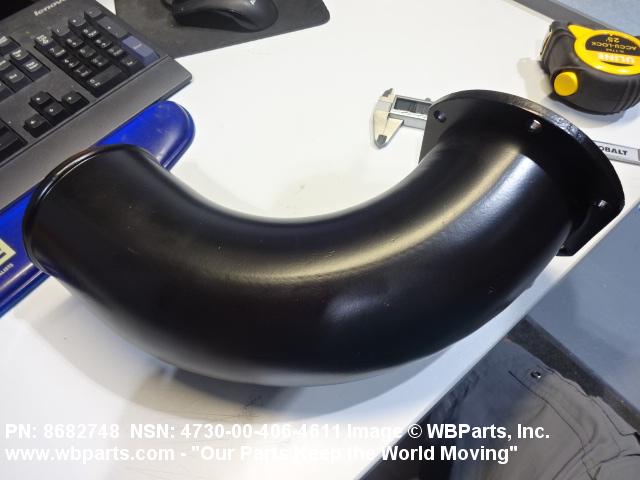

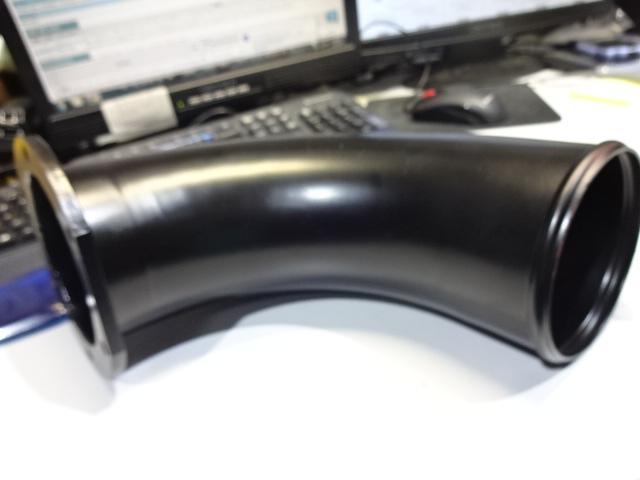

Product Details | FLANGE TO TUBE ELBOW
4730-00-406-4611 A fitting that forms an angle of less that 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side and/or heel inlet(s).
Part Alternates: 8682748, 4730-00-406-4611, 00-406-4611, 2815004064611 , 4730004064611, 004064611
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 APR 1970 | 00-406-4611 | 29668 ( ELBOW, FLANGE TO TUBE ) |

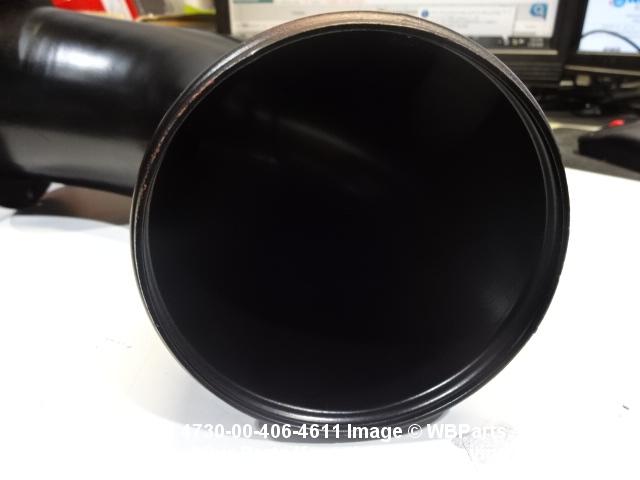

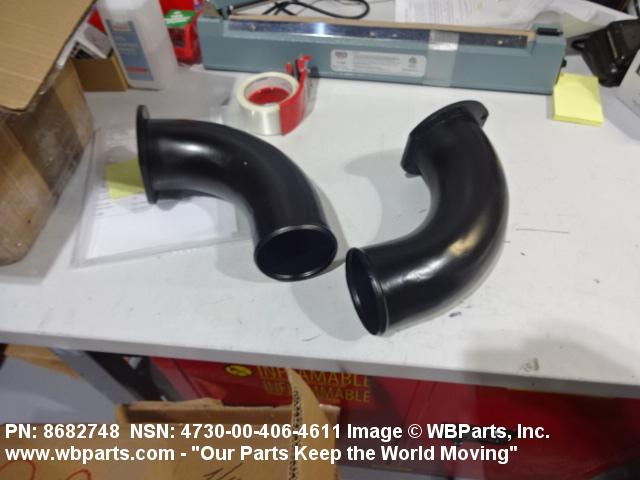

Drawings & Photos | NSN 4730-00-406-4611
Demand History | NSN 4730-00-406-4611
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-406-4611 | 2020-12-351 | 17 | DIBBS |
| 4730-00-406-4611 | 2020-12-351 | 15 | DIBBS |
| 4730-00-406-4611 | 2020-11-335 | 17 | DIBBS |
| 4730-00-406-4611 | 2020-11-335 | 15 | DIBBS |
| 4730-00-406-4611 | 2019-09-246 | 40 | DIBBS |
| 4730-00-406-4611 | 2019-08-234 | 30 | DIBBS |
| 4730-00-406-4611 | 2019-04-112 | 40 | DIBBS |
| 4730-00-406-4611 | 2019-04-99 | 40 | DIBBS |
| 4730-00-406-4611 | 2019-01-02 | 31 | us |
| 4730-00-406-4611 | 2018-10-302 | 31 | DIBBS |
| 4730-00-406-4611 | 2018-10-291 | 31 | DIBBS |
| 4730-00-406-4611 | 2017-12-352 | 10 | DIBBS |
| 4730-00-406-4611 | 2016-07-211 | 4 | DIBBS |
| 4730-00-406-4611 | 2016-07-200 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-406-4611
Related Products | NSN 4730-00-406-4611
Technical Data | NSN 4730-00-406-4611
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 ELBOW STEEL COMP 1018 FLANGE |
| CONNECTION TYPE | UNTHREADED EXTERNAL TUBE 1ST END FLANGE 2ND END |

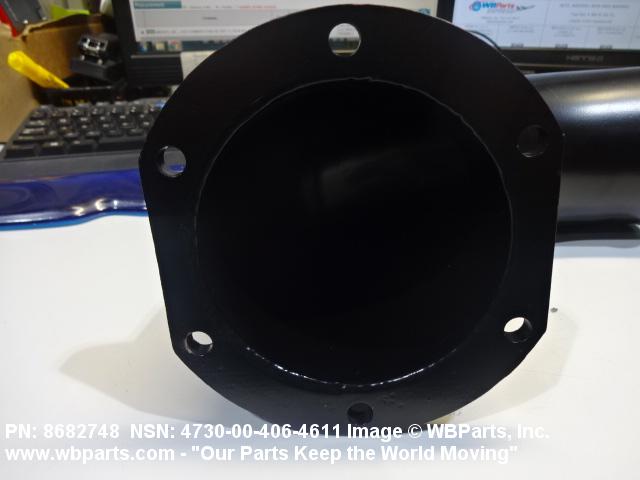

| FLANGE SHAPE | ROUND WITH HOLES 2ND END |

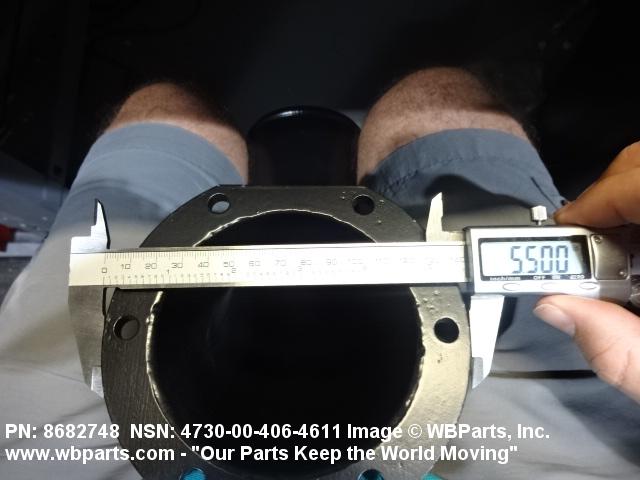

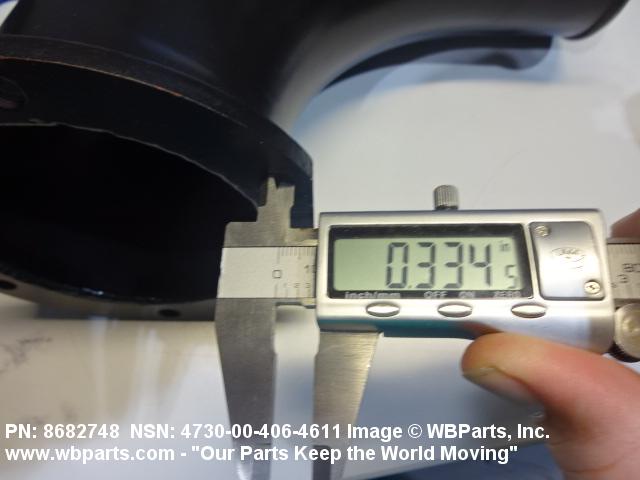

| NOMINAL OUTSIDE DIAMETER | 5.880 INCHES 2ND END |
| NOMINAL THICKNESS | 0.310 INCHES 2ND END |
| BOLT HOLE QUANTITY | 6 2ND END |
| BOLT HOLE NOMINAL DIAMETER | 0.340 INCHES 2ND END |
| BOLT CIRCLE NOMINAL DIAMETER | 4.810 INCHES 2ND END |
| FLANGE FACE DESIGN | RECESSED STRAIGHT 2ND END |

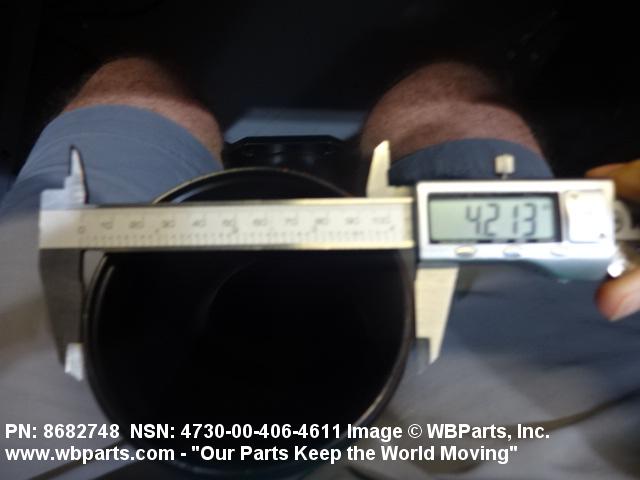

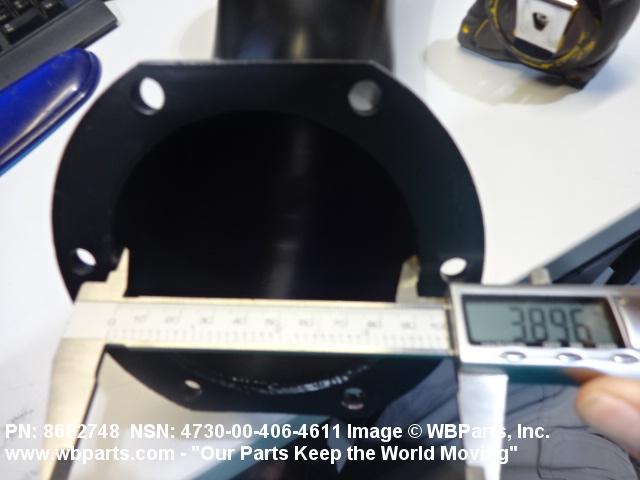

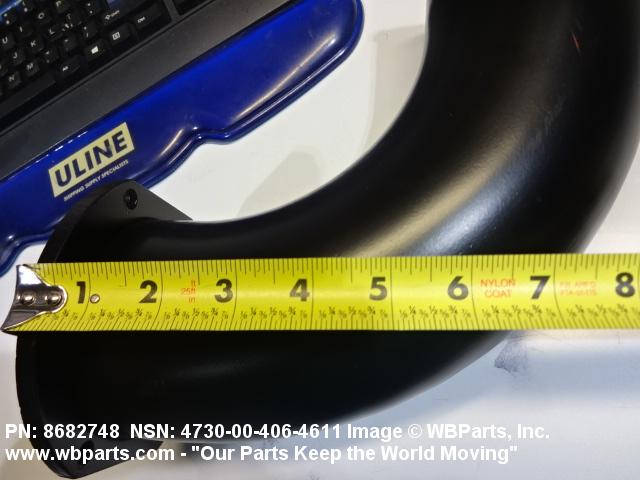

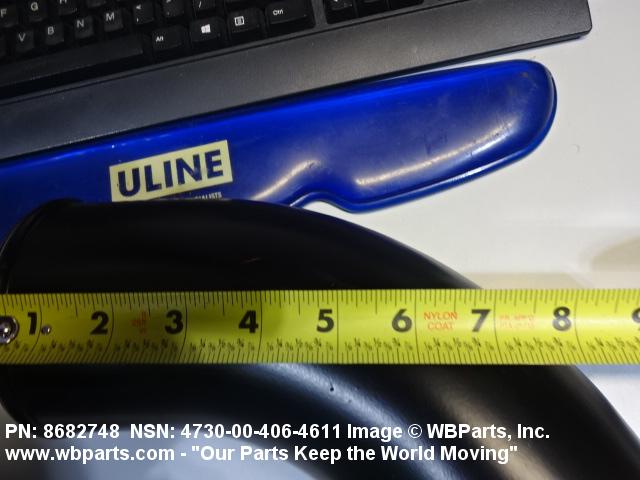

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 4.000 INCHES 1ST END |
| TUBING WALL NOMINAL THICKNESS FOR WHICH DESIGNED | 0.048 INCHES 1ST END |
| LEG LENGTH | 7.500 INCHES NOMINAL ALL ENDS |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8682748 |
