NSN 3110-00-926-4655 DW4KFS464, DW4KZZ, GB520M4
Product Details | AIRFRAME BALL BEARING
3110-00-926-4655 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: DW4KFS464, DW4KZZ, GB520M4, 369A7951, 369A795123, 369A7951-23, DW4K, 3110-00-926-4655, 00-926-4655, 3110009264655, 009264655
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 MAY 1967 | 00-926-4655 | 00041 ( BEARING, BALL, AIRFRAME ) |

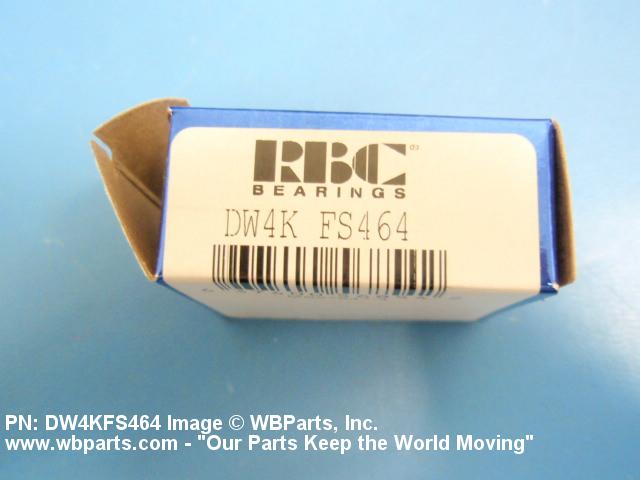

Drawings & Photos | NSN 3110-00-926-4655
Demand History | NSN 3110-00-926-4655
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DW4K | 2016-09-266 | 50 | US |
| 369A7951-23 | 2016-05-132 | 1 | AE |
| 369A795123 | 2013-02-32 | 10 | United States |
| DW4K | 2010-03-83 | 10 | US |
| 3110-00-926-4655 | 2010-02-32 | 25 | United States |
| 369A795123 | 2008-12-338 | 1 | US |
Cross Reference | NSN 3110-00-926-4655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 369A7951 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| 369A7951 | 8V613 | BOEING COMPANY, THE DBA BOEING |
| 369A7951-23 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| 369A7951-23 | 8V613 | BOEING COMPANY, THE DBA BOEING |
| DW4K | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DW4KFS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DW4KZZ | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| GB520M4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-926-4655
Related Products | NSN 3110-00-926-4655
Technical Data | NSN 3110-00-926-4655
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP 1008 RETAINER RUBBER SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED-STD-66 FED STD SINGLE MATERIAL RESPONSE BALL FED-STD-66 FED STD SINGLE MATERIAL RESPONSE INNER RING FED-STD-66 FED STD SINGLE MATERIAL RESPONSE OUTER RING FED-STD-66 FED STD SINGLE MATERIAL RESPONSE RETAINER 369A7951-23,02731 MFR REF SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 204 DOUBLE ROW |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.7450 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| INNER RING WIDTH | 0.8700 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
Restrictions/Controls & Freight Information | NSN 3110-00-926-4655
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-926-4655
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
