NSN 3110-00-926-4687 T135908, T135-908, 2121766
Product Details | RADIAL AND THRUST ROLLER BEARING
3110-00-926-4687 A bearing consisting of a roller radial unit and a roller thrust unit. The inner ring of the radial unit is integrally one ring of the thrust unit. Excludes items in which the same row of rollers accommodates both radial and end thrust.
Part Alternates: T135908, T135-908, 2121766, 3110-00-926-4687, 00-926-4687, 3110009264687, 009264687
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 JUL 1967 | 00-926-4687 | 18037 ( BEARING, ROLLER, RADIAL AND THRUST ) |

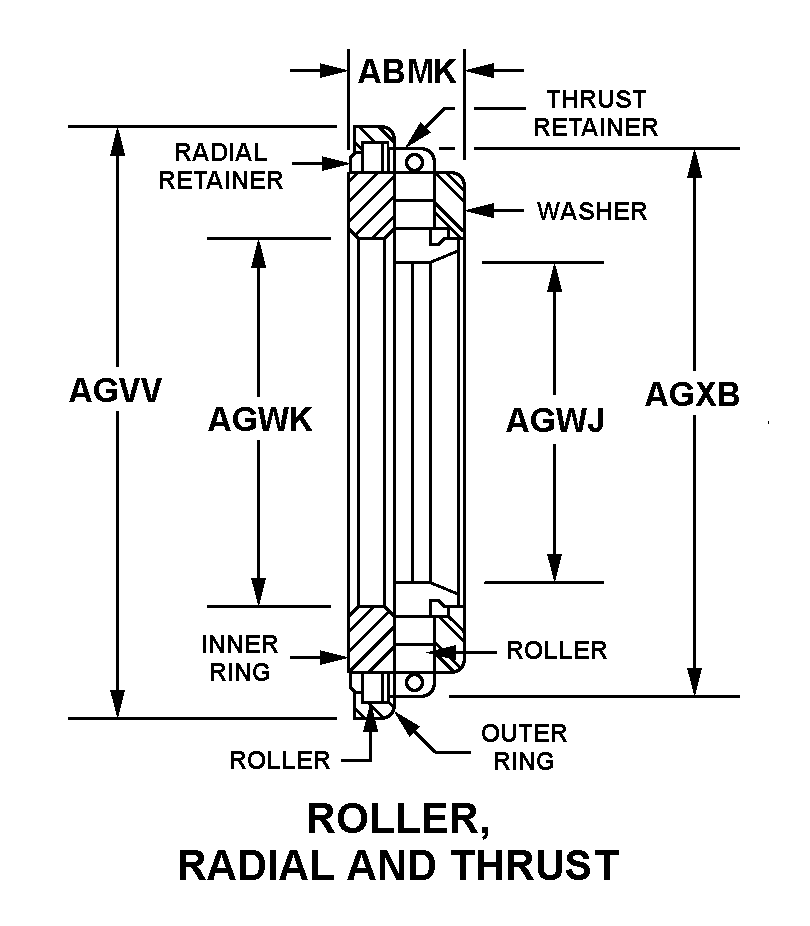

Drawings & Photos | NSN 3110-00-926-4687
Cross Reference | NSN 3110-00-926-4687
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2121766 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2121766 | 44114 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
| 2121766 | 51600 | EMERSON POWER TRANSMISSION CORPORATION |
| 2121766 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| T135-908 | 51600 | EMERSON POWER TRANSMISSION CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-926-4687
Technical Data | NSN 3110-00-926-4687
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 318 ROLLER, RADIAL AND THRUST |
| OVERALL WIDTH | 1.4110 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 7.4800 INCHES NOMINAL |
| BORE SMALLEST DIAMETER | 3.9950 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 4.2125 INCHES NOMINAL |
| THRUST UNIT OUTSIDE DIAMETER | 6.6925 INCHES NOMINAL |
| SPECIAL FEATURES | SEPERABLE OUTER RACE OF RADIAL UNIT,INNER RING OF RADIAL UNIT FORMS 1 RACEWAY OF THRUST UNIT,TIN FLASH THRUST RETAINER |
Restrictions/Controls & Freight Information | NSN 3110-00-926-4687
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-926-4687
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
