NSN 9540-00-411-5330 AMS-QQ-A-200/11, AMSQQA20011, LS335501
Product Details | STRUCTURAL CHANNEL
9540-00-411-5330 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.2032590000095200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMS-QQ-A-200/11, AMSQQA20011, LS335501, LS33550-1, PA22375, QQ-A-200/11, QQA20011, 10915891, 25704281220280, 25704-281220-28-0 , 9540-00-411-5330, 00-411-5330, 5365004115305 , 9540004115330, 004115330
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 28 JAN 1972 | 00-411-5330 | 37019 ( CHANNEL, STRUCTURAL ) |

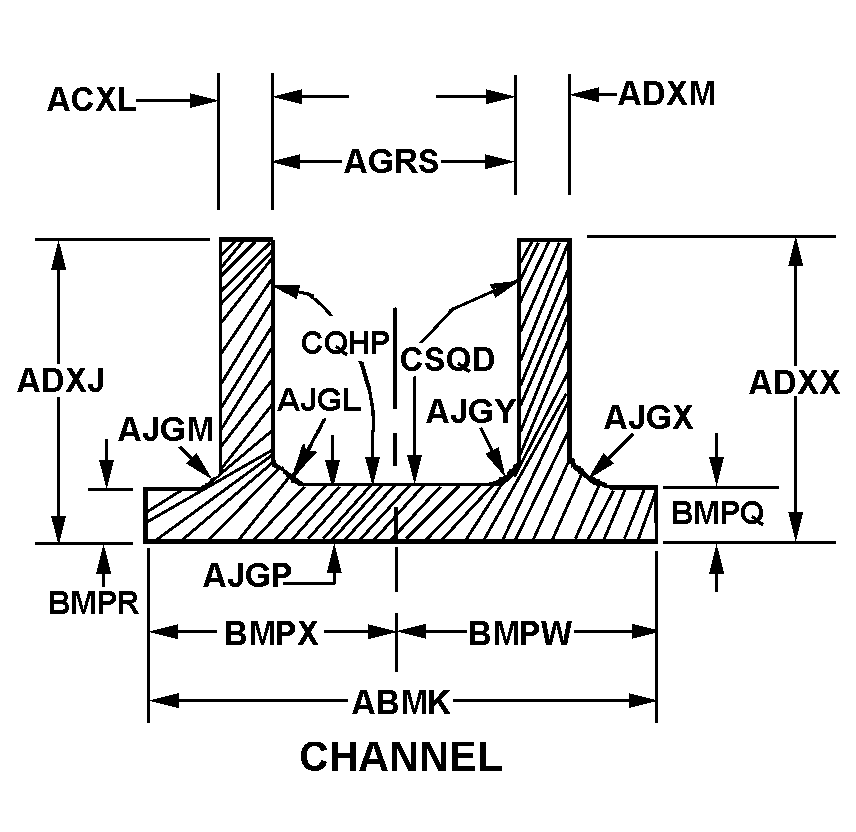

Drawings & Photos | NSN 9540-00-411-5330
Demand History | NSN 9540-00-411-5330
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| QQA20011 | 2020-01-03 | 1 | US |
| QQA20011 | 2009-10-287 | 14 | FX |
Cross Reference | NSN 9540-00-411-5330
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9540-00-411-5330
Related Products | NSN 9540-00-411-5330
Technical Data | NSN 9540-00-411-5330
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY AMS-QQ-A-200/11, ALLOY 7075 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-6511 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | F45 CHANNEL |
| OVERALL WIDTH | 2.150 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 1.000 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 1.000 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| DISTANCE BETWEEN FLANGES | 0.630 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.090 INCHES NOMINAL |
| OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.090 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.159 INCHES NOMINAL |
| OUTER RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.090 INCHES NOMINAL |
| FILLET RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.090 INCHES NOMINAL |
| RIGHT SIDE BOTTOM FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| LEFT SIDE BOTTOM FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| RIGHT SIDE DISTANCE TO CENTER OF BOTH FLANGES | 1.075 INCHES NOMINAL |
| LEFT SIDE DISTANCE TO CENTER OF BOTH FLANGES | 1.075 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 1 SQUARE END |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| THIRD TIP RELATIONSHIP TO PRECEDING TIPS | IDENTICAL W/FIRST TIP |
| FOURTH TIP RELATIONSHIP TO PRECEDING TIPS | IDENTICAL W/FIRST TIP |
| WEIGHT PER UNIT MEASURE | 0.373 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | T6511 TEMPER |
Restrictions/Controls & Freight Information | NSN 9540-00-411-5330
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9540-00-411-5330
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
