NSN 9540-00-406-8028 AMS-QQ-A-200/11, AMSQQA20011, LS5001
Product Details | STRUCTURAL CHANNEL
9540-00-406-8028 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.2032590000095200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMS-QQ-A-200/11, AMSQQA20011, LS5001, PA7662, QQ-A-200/11, QQA20011, 320572, 608683, 60-8683 , 8930, 9540-00-406-8028, 00-406-8028, 9540004068028, 004068028
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 22 JAN 1972 | 00-406-8028 | 37019 ( CHANNEL, STRUCTURAL ) |
Drawings & Photos | NSN 9540-00-406-8028
Demand History | NSN 9540-00-406-8028
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 320572 | 2023-12-346 | 100 | us |
| 320572 | 2023-03-74 | 30 | Oman |
| QQA20011 | 2020-01-03 | 1 | US |
| QQA20011 | 2009-10-287 | 14 | FX |
Cross Reference | NSN 9540-00-406-8028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 320572 | 01634 | ALUMINUM CO OF AMERICA |
| 60-8683 | 29321 | TRANSTAR METALS CORP |
| 8930 | 77783 | ALCOA/REYNOLDS METALS COMPANY |
| AMS-QQ-A-200/11 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| LS5001 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| PA7662 | 06012 | TRANSTAR METALS CORP |
| QQ-A-200/11 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9540-00-406-8028
Related Products | NSN 9540-00-406-8028
Technical Data | NSN 9540-00-406-8028
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY AMS-QQ-A-200/11, ALLOY 7075 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |

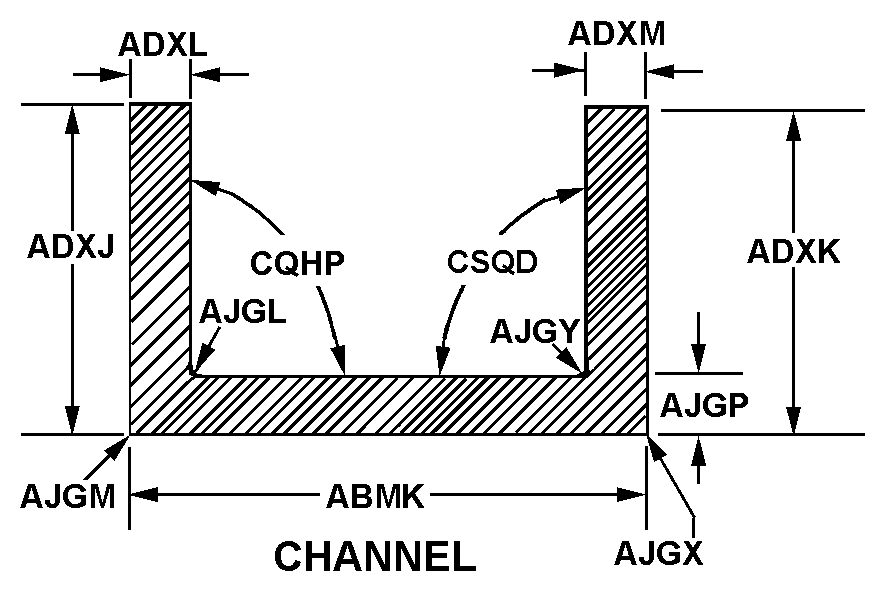

| BASIC SHAPE STYLE | F4 CHANNEL |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 1.250 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 1.250 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.094 INCHES NOMINAL |
| OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.032 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.160 INCHES NOMINAL |
| OUTER RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.032 INCHES NOMINAL |
| FILLET RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.094 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |

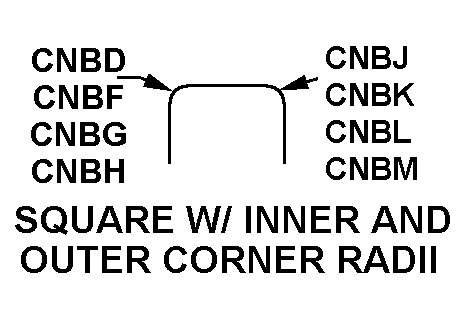

| FIRST TIP STYLE | 7 SQUARE WITH INNER AND OUTER CORNER RADII |
| FIRST TIP INNER RADIUS | 0.032 INCHES NOMINAL |
| FIRST TIP OUTER RADIUS | 0.032 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| WEIGHT PER UNIT MEASURE | 1.282 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | T6 TEMPER |
Restrictions/Controls & Freight Information | NSN 9540-00-406-8028
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104850 | CHANNELS I/S NOI |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9540-00-406-8028
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
