NSN 9540-00-414-3292 AMSQQA2003, AMS-QQA200-3, LS4501
Product Details | STRUCTURAL BEAM
9540-00-414-3292 A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMSQQA2003, AMS-QQA200-3, LS4501, PA1464, QQA2003, QQA200-3, 10006, 58102, 9540-00-414-3292, 00-414-3292, 9540004143292, 004143292
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 02 FEB 1972 | 00-414-3292 | 37018 ( BEAM, STRUCTURAL ) |
Drawings & Photos | NSN 9540-00-414-3292
Demand History | NSN 9540-00-414-3292
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10006 | 2024-10-289 | 2 | US |
| 10006 | 2024-10-288 | 2 | US |
| AMSQQA2003 | 2015-05-139 | 12 | US |
| QQA2003 | 2009-11-323 | 1 | US |
Cross Reference | NSN 9540-00-414-3292
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10006 | 77783 | ALCOA/REYNOLDS METALS COMPANY |
| 58102 | 27610 | INTERNATIONAL LIGHT METALS CORP SUB OF MARTIN MARIETTA CORP |
| AMS-QQA200-3 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| LS4501 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| PA1464 | 06012 | TRANSTAR METALS CORP |
| QQA200-3 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-00-414-3292
Technical Data | NSN 9540-00-414-3292
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-200/3 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-4 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | J4 T SHAPE |
| OVERALL HEIGHT | 1.062 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE THICKNESS | 0.081 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE THICKNESS | 0.081 INCHES NOMINAL |
| LEG THICKNESS | 0.062 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 1.000 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 1.000 INCHES NOMINAL |
| FILLET RADIUS WHERE TOP LEFT FLANGE JOINS WEB FLANGE/LEG | 0.090 INCHES NOMINAL |
| FILLET RADIUS WHERE TOP RIGHT FLANGE JOINS WEB FLANGE/LEG | 0.090 INCHES NOMINAL |
| TOP FLANGE WIDTH | 2.000 INCHES NOMINAL |
| LEFT TOP INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT TOP INSIDE ANGLE | 90.0 DEGREES NOMINAL |

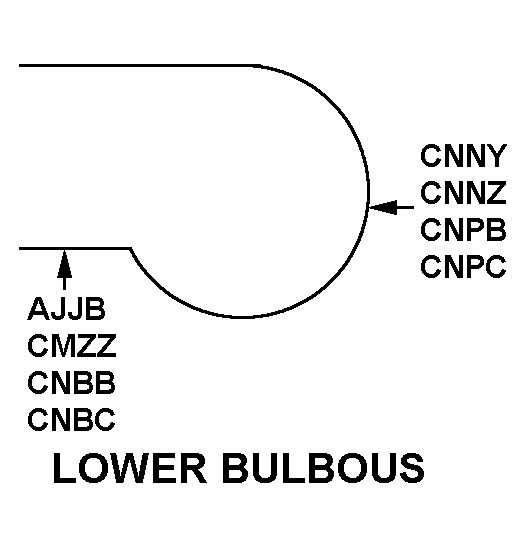

| FIRST TIP STYLE | 10 LOWER BULBOUS |
| FIRST TIP RADIUS | 0.016 INCHES NOMINAL |
| FIRST TIP DIAMETER | 0.250 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| THIRD TIP RELATIONSHIP TO PRECEDING TIPS | NOT IDENTICAL |
| THIRD TIP STYLE | 9 LEFT BULBOUS |
| THIRD TIP RADIUS | 0.120 INCHES NOMINAL |
| THIRD TIP DIAMETER | 0.250 INCHES NOMINAL |
| WEIGHT PER UNIT MEASURE | 0.320 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | T4 TEMPER |
Restrictions/Controls & Freight Information | NSN 9540-00-414-3292
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
