NSN 9540-00-414-3793 AMS-QQ-A-200/11, AMSQQA20011, LS4338
Product Details | STRUCTURAL CHANNEL
9540-00-414-3793 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.2032590000095200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMS-QQ-A-200/11, AMSQQA20011, LS4338, PA20935, QQ-A-200/11, QQA20011, 17725, 180865, 609443, 60-9443, 9540-00-414-3793, 00-414-3793, 9540004143793, 004143793
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
95 | 02 FEB 1972 | 00-414-3793 | 37019 ( CHANNEL, STRUCTURAL ) |
Demand History | NSN 9540-00-414-3793
Part Number | Request Date | QTY | Origin |
---|---|---|---|
QQA20011 | 2020-01-03 | 1 | US |
QQA20011 | 2009-10-287 | 14 | FX |
Cross Reference | NSN 9540-00-414-3793
Part Number | Cage Code | Manufacturer |
---|---|---|
17725 | 27610 | INTERNATIONAL LIGHT METALS CORP SUB OF MARTIN MARIETTA CORP |
180865 | 01634 | ALUMINUM CO OF AMERICA |
60-9443 | 29321 | TRANSTAR METALS CORP |
AMS-QQ-A-200/11 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
LS4338 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
PA20935 | 06012 | TRANSTAR METALS CORP |
QQ-A-200/11 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 9540-00-414-3793
Related Products | NSN 9540-00-414-3793

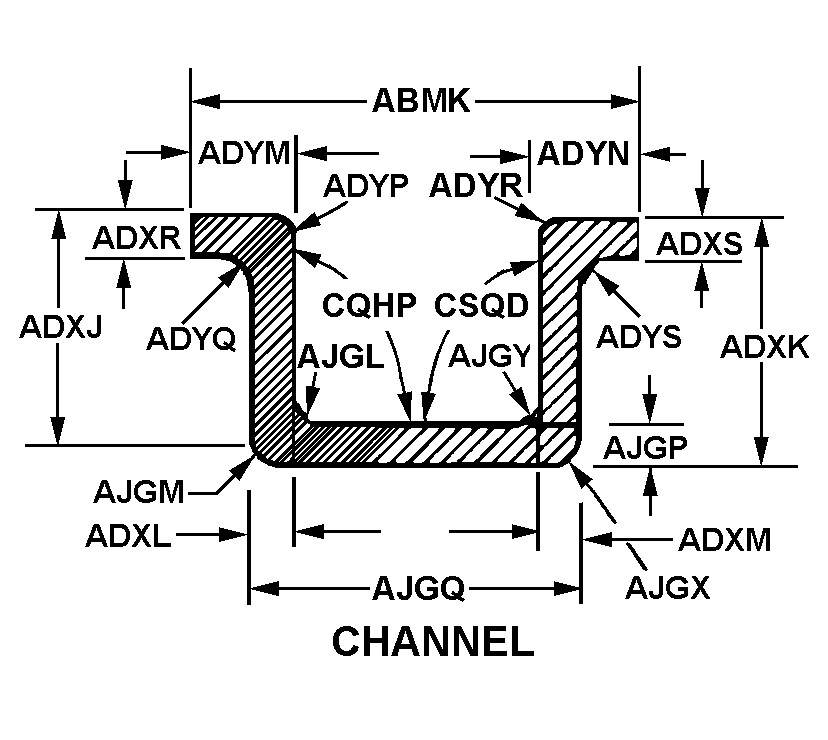

Technical Data | NSN 9540-00-414-3793
Characteristic | Specifications |
---|---|
MATERIAL | ALUMINUM ALLOY AMS-QQ-A-200/11, ALLOY 7075 |
FABRICATION METHOD | EXTRUDED |
HEAT TREATMENT | T-6 SOLUTION HEAT TREATED |
LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
BASIC SHAPE STYLE | F41 CHANNEL |
OVERALL WIDTH | 4.320 INCHES NOMINAL |
LEFT SIDE FLANGE HEIGHT | 1.354 INCHES NOMINAL |
RIGHT SIDE FLANGE HEIGHT | 1.354 INCHES NOMINAL |
LEFT SIDE FLANGE THICKNESS | 0.094 INCHES NOMINAL |
RIGHT SIDE FLANGE THICKNESS | 0.094 INCHES NOMINAL |
LEFT SIDE TOP FLANGE THICKNESS | 0.094 INCHES NOMINAL |
RIGHT SIDE TOP FLANGE THICKNESS | 0.094 INCHES NOMINAL |
LEFT SIDE TOP FLANGE WIDTH | 1.600 INCHES NOMINAL |
RIGHT SIDE TOP FLANGE WIDTH | 1.600 INCHES NOMINAL |
OUTER RADIUS WHERE LEFT FLANGE JOINS TOP FLANGE | 0.031 INCHES NOMINAL |
FILLET RADIUS WHERE LEFT FLANGE JOINS TOP FLANGE | 0.100 INCHES NOMINAL |
OUTER RADIUS WHERE RIGHT FLANGE JOINS TOP FLANGE | 0.031 INCHES NOMINAL |
FILLET RADIUS WHERE RIGHT FLANGE JOINS TOP FLANGE | 0.100 INCHES NOMINAL |
FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.100 INCHES NOMINAL |
OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.031 INCHES NOMINAL |
BASE FLANGE THICKNESS | 0.094 INCHES NOMINAL |
BASE FLANGE WIDTH | 1.120 INCHES NOMINAL |
OUTER RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.031 INCHES NOMINAL |
FILLET RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.100 INCHES NOMINAL |
LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
FIRST TIP STYLE | 7 SQUARE WITH INNER AND OUTER CORNER RADII |
FIRST TIP INNER RADIUS | 0.031 INCHES NOMINAL |
FIRST TIP OUTER RADIUS | 0.031 INCHES NOMINAL |
SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
WEIGHT PER UNIT MEASURE | 0.780 POUNDS PER LINEAR FOOT |
NONDEFINITIVE SPEC/STD DATA | T6 TEMPER |
Restrictions/Controls & Freight Information | NSN 9540-00-414-3793
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 104850 | CHANNELS I/S NOI |
Less than car load rating | ||
Less than truck load rating | U | 50.0 |
Water commodity Code | 576 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9540-00-414-3793
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
