Product Details | DISPLACEMENT GYROSCOPE

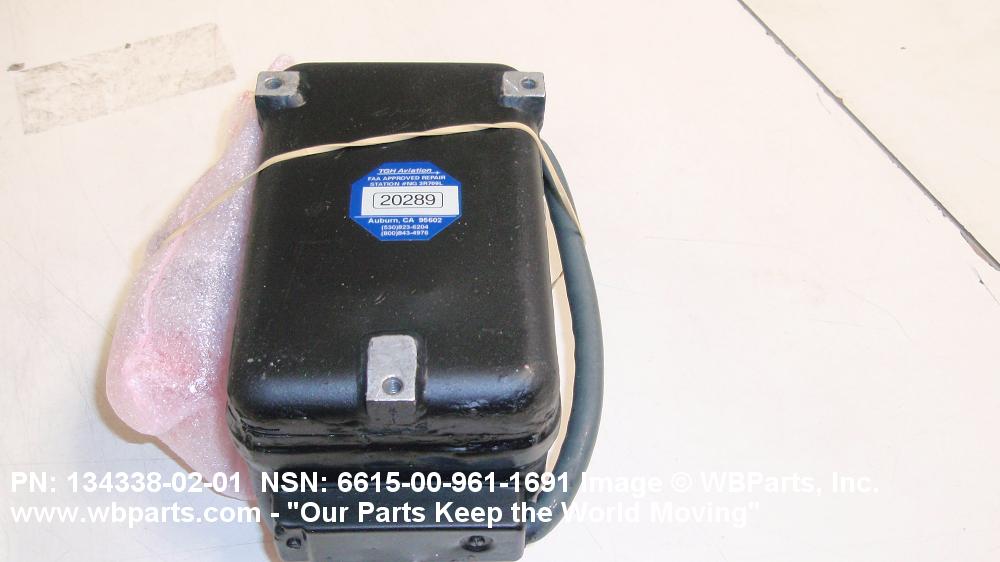

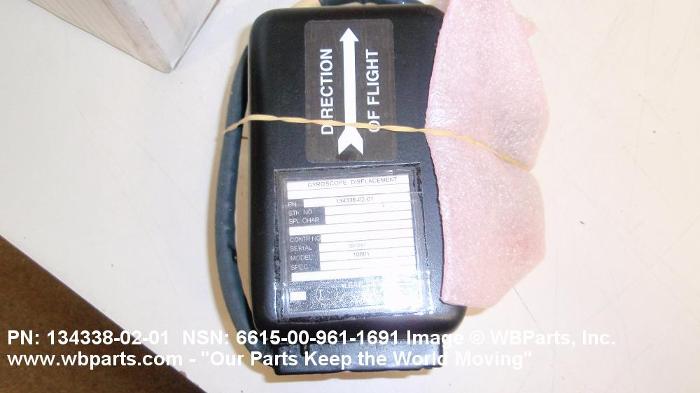

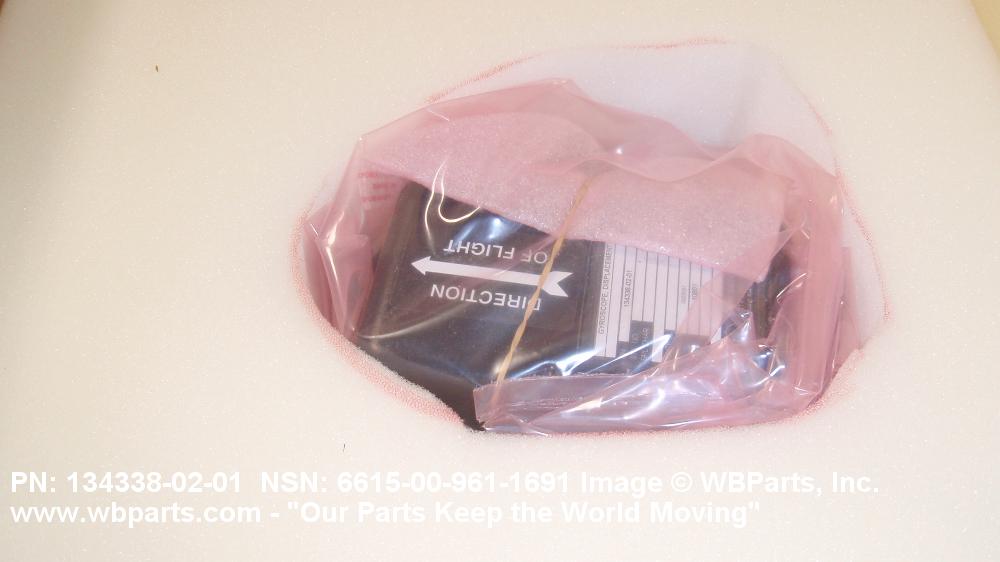

6615-00-961-1691 A gyroscope which senses, measures and transmits angular displacement data.

Part Alternates: S6290620151, S6290-62015-1, Y63315620263, Y63-315620-26-3, 1080Y, 1343380201, 134338-02-01, 6615-00-961-1691, 00-961-1691, 6615009611691, 009611691

Instruments and Laboratory Equipment | Automatic Pilot Mechanisms and Airborne Gyro Components

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1960 00-961-1691

Drawings & Photos | NSN 6615-00-961-1691


Demand History | NSN 6615-00-961-1691

Part Number Request Date QTY Origin
6615-00-961-1691 2023-04-108 5 US
1343380201 2023-04-108 10 US
1343380201 2019-03-77 2 US
1343380201 2019-03-66 1 United Kingdom
1343380201 2018-10-285 2 Malaysia
6615-00-961-1691 2016-03-85 20 US
1343380201 2015-01-20 1 Malaysia
1343380201 2014-12-349 1 Malaysia
1343380201 2014-12-349 1 Malaysia
1343380201 2014-12-349 1 Malaysia
1343380201 2014-12-349 1 Malaysia
1343380201 2014-12-349 1 Malaysia
1343380201 2014-11-330 1 Malaysia
1343380201 2014-08-225 1 Malaysia
1343380201 2013-02-39 3 Malaysia
1343380201 2012-06-163 2 MY
1343380201 2011-10-274 8 MY
1343380201 2009-12-362 1 Malaysia
1343380201 2009-12-357 1 Malaysia
1343380201 2009-07-203 1 Malaysia
6615-00-961-1691 2008-09-267 1 US
1343380201 2008-05-128 4 Malaysia
1343380201 2006-03-88 4 US

Cross Reference | NSN 6615-00-961-1691

Part Number Cage Code Manufacturer
1080Y 35351 GE AVIATION SYSTEMS LLC
134338-02-01 35351 GE AVIATION SYSTEMS LLC
S6290-62015-1 78286 SIKORSKY AIRCRAFT CORPORATION
Y63-315620-26-3 10618 GYRODYNE CO OF AMERICA INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6615-00-961-1691

Technical Data | NSN 6615-00-961-1691

Characteristic Specifications
UNIT TYPE VERTICAL
WHEEL POWER METHOD ELECTRIC
CURRENT TYPE AC
VOLTAGE IN VOLTS 115.0 AND 200.0
FREQUENCY IN HERTZ 400.0
PHASE THREE
FREEDOM AXIS QUANTITY 2
GIMBAL QUANTITY 2
AXIS DISPLACEMENT LIMITATION IN DEG PORM 82 DEG FOR PITCH AXIS UNLIMITED FREEDOM FOR ROLL AXIS
DESIGN TYPE NONCAGEABLE
GIMBAL TORQUE APPLICATION METHOD TORQUE MOTOR
TORQUED GIMBAL QUANTITY 2
SENSING OUTPUT/SIGNAL LEVEL METHOD SYNCHRO OUTPUT 115V EXTERNALLY EXCITED 11.5V TO 12.5V OUTPUT
INSTRUMENT TYPE UNFLOATED
SHOCK MOUNT NOT PROVIDED
OVERALL LENGTH 6.500 INCHES NOMINAL
OVERALL WIDTH 3.875 INCHES NOMINAL
OVERALL HEIGHT 3.875 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 6615-00-961-1691

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:DMunitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:7NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 061700 ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
