NSN 6615-00-167-9757 CN-998B/ASN-43, CN998BASN43, SCDL545357
Product Details | DISPLACEMENT GYROSCOPE
6615-00-167-9757 A gyroscope which senses, measures and transmits angular displacement data.
Part Alternates: CN-998B/ASN-43, CN998BASN43, SCDL545357, SC-DL-545357, SMD498762, SM-D-498762, 111222PC557, 111229PC557 , 116322PC557, 25874513, 2587451-3, 6615-00-167-9757, 00-167-9757, 6615001679757, 001679757
Instruments and Laboratory Equipment | Automatic Pilot Mechanisms and Airborne Gyro Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JUL 1968 | 00-167-9757 | 20599 ( GYROSCOPE, DISPLACEMENT ) |

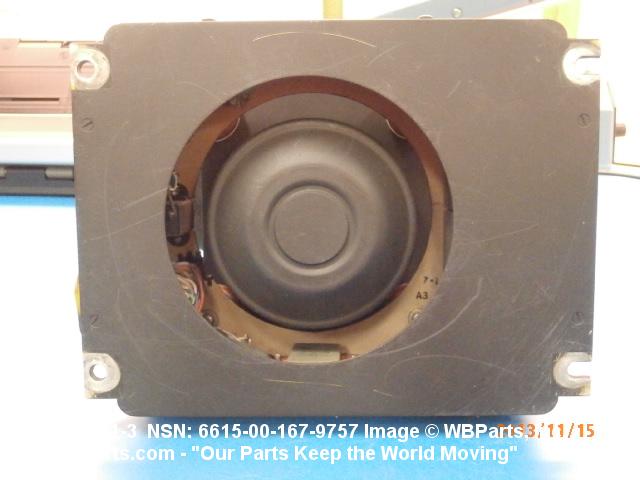

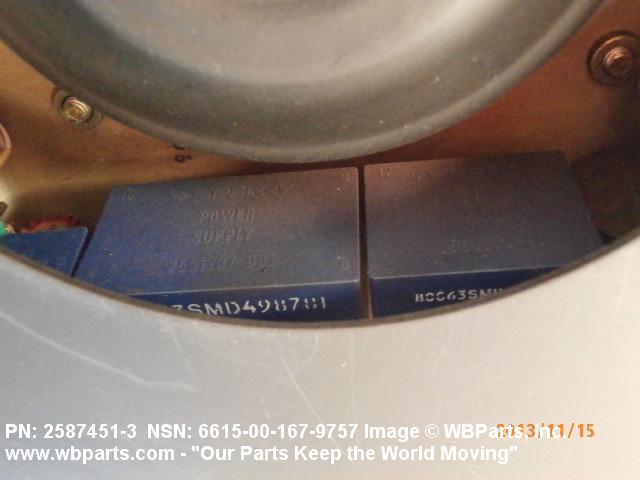

Drawings & Photos | NSN 6615-00-167-9757
Demand History | NSN 6615-00-167-9757
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6615-00-167-9757 | 2024-10-278 | 1 | PK |
| 6615-00-167-9757 | 2017-01-13 | 14 | United States |
| CN998BASN43 | 2016-09-259 | 1 | United States |
| 6615-00-167-9757 | 2016-05-130 | 17 | United States |
| 6615-00-167-9757 | 2015-02-54 | 1 | United States |
| SMD498762 | 2014-11-321 | 4 | United States |
| CN-998B/ASN-43 | 2014-04-119 | 1 | |
| 25874513 | 2013-08-241 | 1 | Philippines |
| CN998BASN43 | 2012-09-271 | 1 | US |
| 6615-00-167-9757 | 2010-11-312 | 6 | Brazil |
| CN998BASN43 | 2009-05-139 | 2 | US |
| 25874513 | 2007-06-165 | 4 | Philippines |
Cross Reference | NSN 6615-00-167-9757
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2587451-3 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| CN-998B/ASN-43 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| SC-DL-545357 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-D-498762 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6615-00-167-9757
Related Products | NSN 6615-00-167-9757
Technical Data | NSN 6615-00-167-9757
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | DIRECTIONAL |
| WHEEL POWER METHOD | ELECTRIC |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 115.0 |
| FREQUENCY IN HERTZ | 400.0 |
| PHASE | SINGLE |
| FREEDOM AXIS QUANTITY | 2 |
| GIMBAL QUANTITY | 2 |
| AXIS DISPLACEMENT LIMITATION IN DEG | PORM 85 DEG FROM HORIZONTAL FOR PITCH AXIS;PORM 85 DEG FROM HORIZONTAL FOR ROLL AXIS |
| DESIGN TYPE | NONCAGEABLE |
| GIMBAL TORQUE APPLICATION METHOD | EDDY CURRENT TORQUE MOTOR OR INDUCTION TORQUE MOTOR |
| TORQUED GIMBAL QUANTITY | 2 |
| SENSING OUTPUT/SIGNAL LEVEL METHOD | SYNCHRO OUTPUT 115V EXTERNALLY EXCITED,11.8V OUTPUT |
| INSTRUMENT TYPE | UNFLOATED |
| SHOCK MOUNT | PROVIDED |
| OVERALL LENGTH | 7.562 INCHES NOMINAL |
| OVERALL WIDTH | 5.812 INCHES NOMINAL |
| OVERALL HEIGHT | 5.937 INCHES NOMINAL |
| SPECIAL FEATURES | SELF CONTAINED AMPLIFIER FOR CONTINUALLY SLAVING GYROSCOPE TO MAGNETIC REFERENCE |
Restrictions/Controls & Freight Information | NSN 6615-00-167-9757
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6615-00-167-9757
Army
Air Force
Navy
Coast Guard| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | G | Communications and Electronics Equipment, Electronics Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | Q | Avionics |
| Weapons Systems/End Item or Homogeneous Group | QG | Av Gyro |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B16 | US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
| Fund Code | PD | Regulated items, item manager controlled. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | AH | (Non-JSL Items)HELICOPTERS(H1) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | R | |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
